Ethanol Extraction Machine 50L Rotovap for solvent distillation

Description of 50L rotovap solvent extraction for hemp oil CBD

The purpose of the rotovap is to remove low boiling organic chemicals, usually solvents, from a mixture of compounds. The rotary evaporator is the method of choice for solvent removal in the modern organic laboratory. The solvents or low boiling compounds are removed by a simple distillation.

Parameter of 50L rotovap solvent extraction for hemp oil CBD

Model: RE-5250A advanced rotary evaporator

Rotation flask:50L

Receiving flask:20L

Lifting type:Automatic lifting

Condenser:vertical type, double serpentine tube

Rotation speed:5-110 rpm

Evaporation speed (H2O)::10L/h

Bath power::6KW

Staic temp control range & Wave:RT~99℃ & 2℃

Standard power::220V 50/60Hz single phase

Motor power:180W

Dimension:1200 x 800 x 2200mm

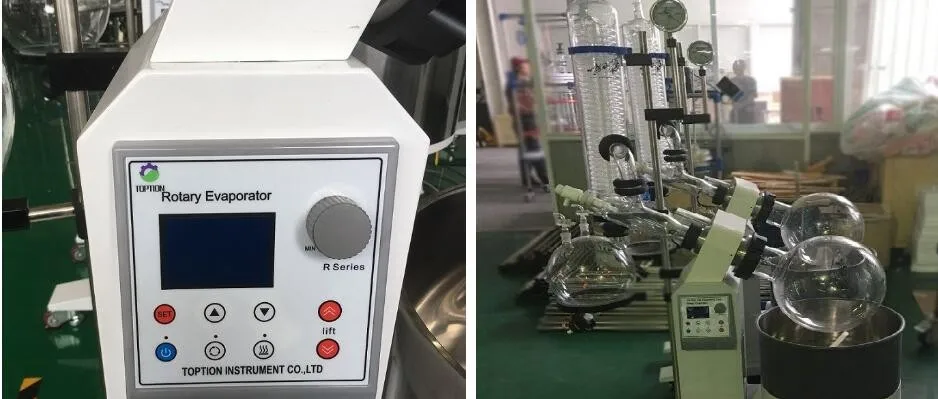

Dispaly:Rotation speed and temperature are digital display

Optional:oil hath; 110V 60Hz single phase working voltage

Principle of rotary evaporator

In the low-pressure heating conditions, by rotating in the rotating bottle to form a thin film, steam rise into the condenser with rapid evaporation, liquefied recovery, to achieve the separation and recovery of solvent and material.

Detailed Images

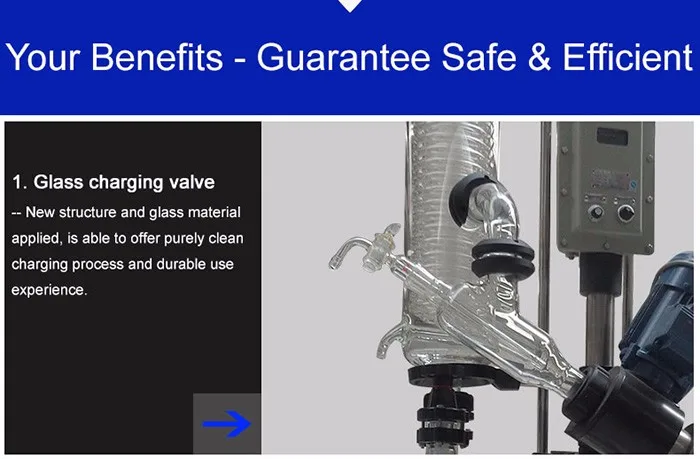

1. Glass charging valve

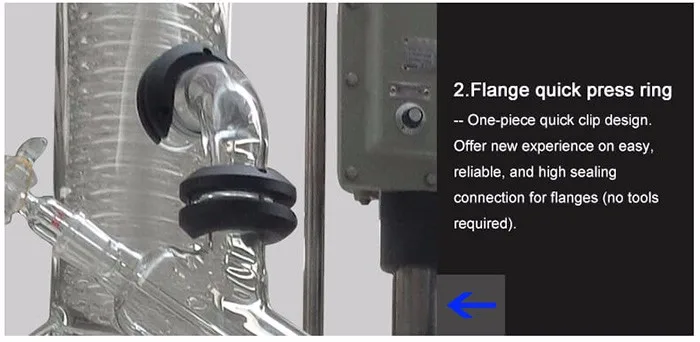

2. Flange Quick press ring

3. PTFE vacuum discharging valve

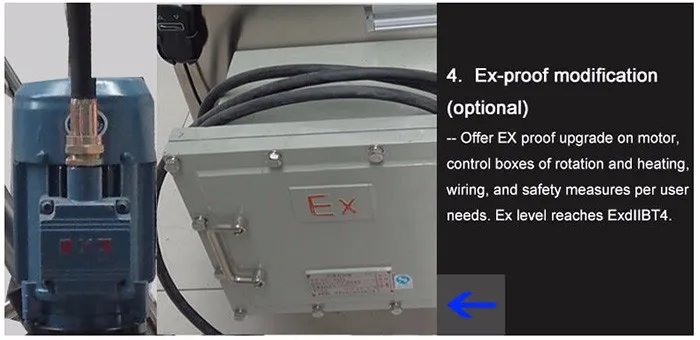

4. Ex-proof modification(optional)

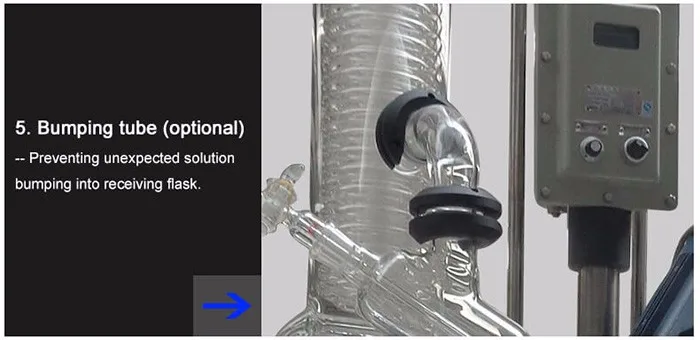

5. Bumping tube(optional)

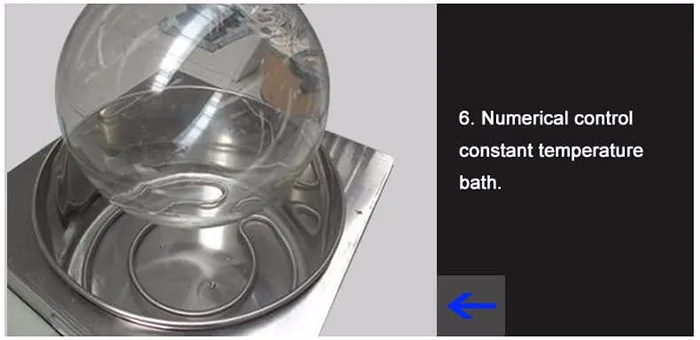

6. Numeral control constant temperature bath

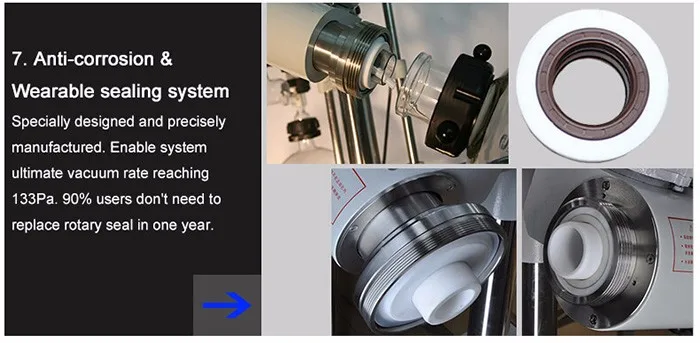

7. Anti-corrosion & wearable sealing system

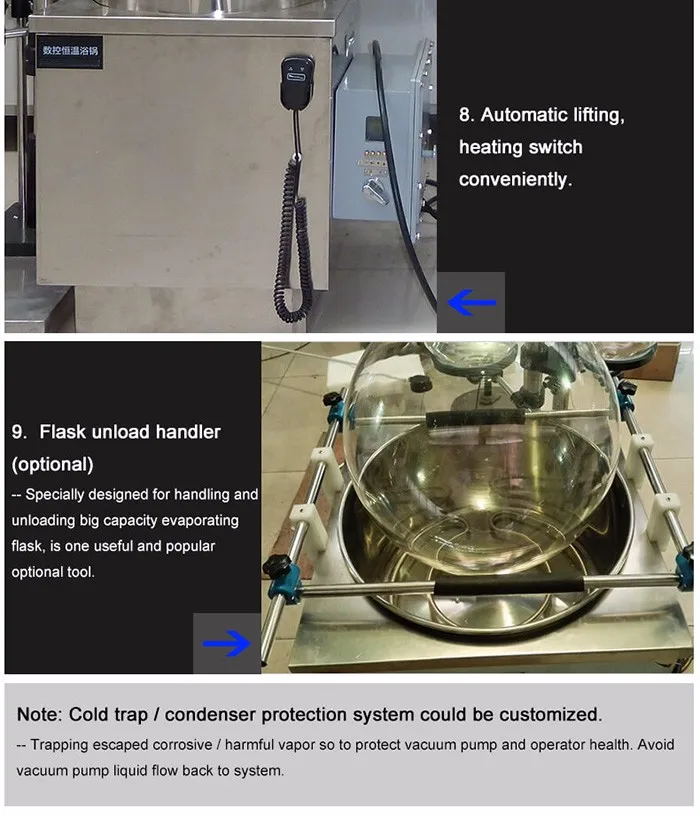

8. Automatic lifting heating switch conveniently

9. Flask unload handler(Optional)

Ancillary equipment for rotary evaporators

Circulating water vacuum pump:a vacuum source is provided to achieve a low pressure condition for the rotary evaporator.

Circulating chillers: to provide cold source.

What experiments are used for rotary evaporators?

Distillation, desiccation,separation, extraction, solvent recovery.

What is the way to seal the rotary evaporator? What is the maximum vacuum achievable?

It is Mainly with PTFE and flange to seal the machine and the maximum vacuum can reach -0.098Mpa.
