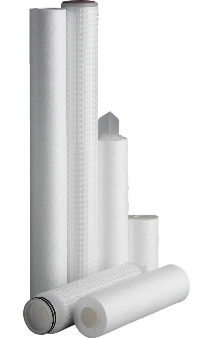

SupaSpun II precision graded density filter elements are a further development of our already well proven absolute rated depth type filter. These high performance cartridges excel in dirt holding capacity and give extremely low clean pressure losses as a result of the strictly controlled manufacturing of the fibre matrix.

SupaSpun II filter cartridges are produced using an improved manufacturing process resulting in the following features:-

Absolute Rated Filter Media

Available from 0.3 to 180µm

Polypropylene or nylon 6

Consistent reliable performance

Unique Construction

One piece high strength support core

High void volume, resulting in low clean ∆p and excellent dirt holding capacity

End cap welded direct to the core for extra security and strength

Thermally bonded fibre matrix minimises fibre migration

One piece construction up to 1524mm (60”)

SupaSpun II Advantage grade featuring moulded End Caps and rigid outer support cage

Optional reinforced polypropylene core and end caps for high strength / temperature applications

Product Features

100% polypropylene or nylon 6

Materials meet US FDA CFR Title 21

Meets USP Class VI requirements (PP only)

Meets the requirements for food contact as detailed in European Regulation (EC) Number 1935/2004 (PP Only)

SupaSpun II fibres are blown continuously onto a central support core, with fibre diameters control-led to produce different pore sizes throughout the extrusion process. All the layers are inter-linked to offer maximum support while ensuring that the high void

volume is maintained, but with increasing fibre density towards the cartridge central core - therefore resulting in true depth filtration.

Elements are available up to 1524mm (60”) in length, either double open ended or with most common end cap fittings.

Features and Benefits

All individual packing bags are anti static

Absolute removal ratings for consistent and reliable performance

Graded density structure for maximum dirt holding capacity

Increased void volume giving high flow rates and low initial pressure losses

Wide chemical compatibility using optional materials, polypropylene and nylon 6

Range of Absolute ratings from 0.3 to 180µm (Beta Ratio 5000)

Thermal bonding process minimises media migration and ensures minimal extractables

Identification data embossed on every cartridge

Advantage grade featuring moulded end caps and rigid outer support cage
