Product introduction:

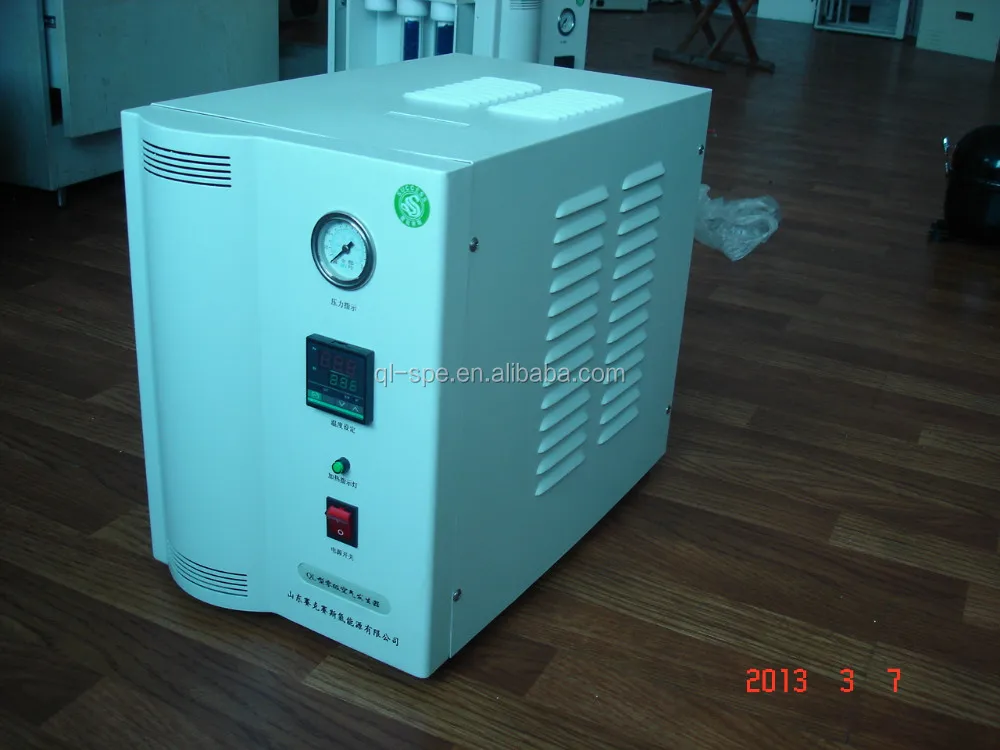

QL-Z1500 Zero Air Generator is an equipment for purifying air supply. The zero-grade air is produced from compressed air by means of catalytic oxidation. The compressed air is channeled into a heated catalyst bed where the hydrocarbons are converted to carbon dioxide and water vapor, producing zero-grade air with less than 0.1ppm hydrocarbon content (measured as methane). Then eliminate the carbon dioxide and water vapor to get zero-grade air.
Application
GC-FID GC-NPD GC-FPD GC-TCD THC TOC COT DSC TGA ELSD , which needs zero-grade air supply.
Working Principles
Compressed dry air enters this purifier, and it’s oxidized in the stainless steel stove which is full of noble metal catalyst, then get the pure air which hydrocarbon and CO content are less than 0.1ppm. Pure air enters three-level molecular sieve purification, remove the air particles, and finally get dry, pure and zero air.
Installation and Usage
1. Connect compressed air outlet with this equipment inlet, connect gas-applied equipment with this equipment outlet. Screw the nuts carefully for sealing well.
2. Connect power supply and turn on the switch. Set working temperature at 350℃. After preheating for 30 minutes, temperature gets the set value, and equipment enters working condition.
3. The hydrocarbon in air changes into CO2 and water. After adsorption and purification through molecular sieve, the hydrocarbon in zero air is less than 0.1ppm. After using equipment continuously for 200 hours, the molecular sieve is saturated, and it should be replaced or regenerated. While regenerating, it should be backed for 4 hours under 150-180℃.
4. Please switch off the power after using this equipment.
Technical parameter
|
Model |
QL-Z1500 |
|
Input hydrocarbon concentration |
<100ppm |
|
Output hydrocarbon concentration |
<0.1ppm |
|
Input gas pressure |
0-0.6MPa |
|
Input gas flow |
0-1500ml/min |
|
Input power |
300w |
|
Dimension |
420*265*365mm |
|
Using temperature |
0-40℃ |
|
Surrounding humidity |
<85% |
|
Power supply |
AC,220v,50-60Hz |
-
Shandong Saikesaisi Hydrogen Energy CO., Ltd. is a high-tech and strong innovation team. She has being engaged in producing PEM/SPE Hydrogen Generator from 1992. The chief technical expert is the first one developing PEM/SPE technology in China who has developed Four generation hydrogen generators and some have won the patens and fill in the vacancy in Chinese technology field.
The company choose SPE-Solid Polymer Electrolyte positive ion(proton) exchange membrane to electrolyze pure water which replaces traditional alkali liquor hydrogen production. This technology has won BECIA golden medal and certificate of patent.
Because of good quality, some products have got CE certification(No.E/EC13840511537). Now this company can supply the following products:
1.QL Series Hydrogen Generators (0-34000 ml/min).
2.SHC Series Hydrogen Generators(0-500 ml/min).
3.QL Series Pure Air Generator(0-300 l/min).
4.QL Series Nitrogen Generator(0-500 l/min).
5.QL Series Nitrogen and Air Generator(Nitrogen:0-300 ml/min, Air:0-1000 ml/min), Nitrogen, Hydrogen and Air Generator(Nitrogen:0-300 ml/min, Hydrogen:0-300 ml/min and Air:0-1000 ml/min).
6. Other customized generator and Accessory parts.
If you have any technical questions or need more detailed information about produces and company, please visit the website.
