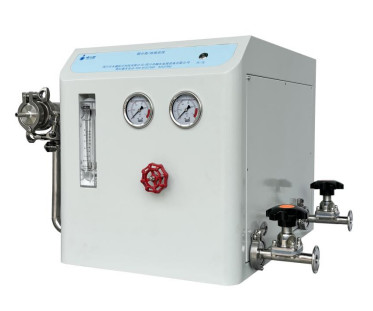

ZYUFL-18 MF/UF Membrane Filtration Lab Machine

Hits:593   Date: 7/16/2025

Product Description
ZYUFL-18 is used for process experiments such as concentration, separation, purification, clarification, sterilization, and solvent removal of liquids.It can be equipped with micro-filtration and ultra-filtration various types of roll membrane components.

Widely used in biological, pharmaceutical, food, chemical, environmental protection and other fields, for the concentration, separation, purification, clarification, sterilization, solvent removal and other process experiments; the selected experimental parameters of the equipment can be directly amplified to Pilot and industrial production; ZHUOYUE water treatment with strong technical strength and professional technical services, fully guarantee the customer's experimental success rate, become the first choice for laboratory membrane filtration machine.

Technical Parameters

Model	ZYUFL-18
Working pressure（MPa）	≤1.2MPa
Filter requirements	Insoluble solids≤0.3%
Working temperature（℃）	5～45℃
pH range	2～12
Filtration rate	1-10L/H（Depends on the pore size of the membrane and the logistics characteristics）
Circulating volume	0.5～1L
Filter accuracy range	5KD-0.45um
Power supply/power	220V/50Hz  power≤230W
Size	550（Length）×410（width）×455（height）mm


Features
1、The filtration accuracy is about 5KD-0.45um, and the filtration performance is stable.
2、Cross-flow operation design, membrane elements have strong pollution resistance, no need for frequent cleaning.
3、Membrane filtration is a physical separation process without chemical reaction.
4、The membrane system has a high degree of automation, adopts frequency converter control, and is easy to operate.
5、Large channel filtration membrane element, long service life, no need for frequent replacement.
6、Modular design, simple operation, online cleaning.
7、All pipes in contact with materials are made of SUS304 stainless steel to meet hygienic requirements.

Separation effect


About Zhuoyue Water Treatment Equipment
 Sichuan Zhuoyue Water Treatment Equipment Co.,Ltd is a comprehensive water treatment
manufacturer integrating R&D, production, sales and after-sales in Chengdu City, specializing in the production of laboratory ultra-pure water system, medical water system, pharmaceutical water machine, central integrating pure water system,industrial ultra-pure water machine, sewage water treatment machine, slightly acidic electrolytic water,membrane filtration machine and other related water treatment equipment. 4000㎡modern production line with sales department are located in Pengzhou Industrial Park in Chengdu city.
