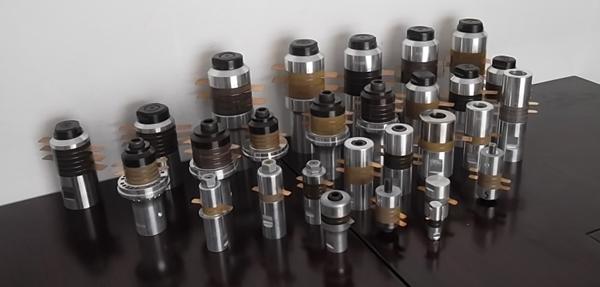

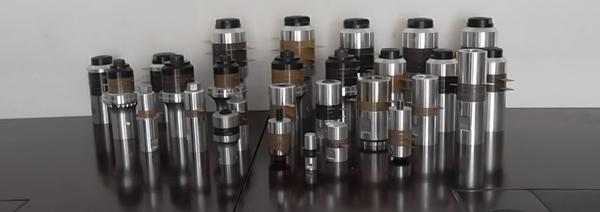

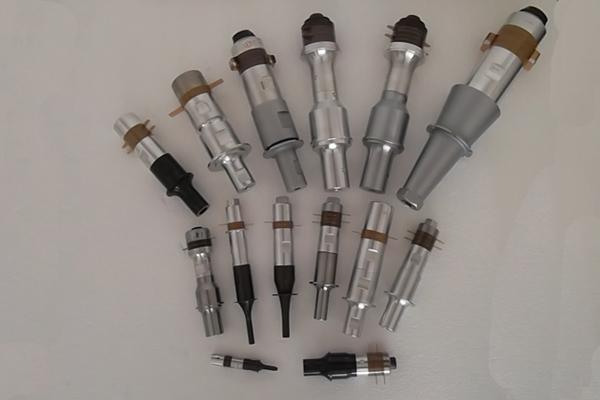

ultrasonic welding transducer is one of main products of at UCE ultrasonic,which used the piezoelectric effort to realize transduction between electric and sound energy,also named as BLT transducer,ultrasonic transducer normally used in ultrasonic welding industry,high power ultrasonic etc.
UCE mean our company logol, “68” is stand for the dimetions of radiation head, “45” is stand for the dimetions of the piezoelectric ceramic,PZT8 is mean the material of piezoelectric ceramic,PZT8 is yellow ceramic,PZT4 is black.
| Type | Full-length（mm） | Joint Bolt（mm） | Frequency（KHz） |
Resonance Impedance（Ω） |
Capacity（pF） |
Input Power （W） |
| UCE-UWT152500 P8 |
153 |
M20×1.5 |
15 |
15 |
13000 |
2500 |
| UCE-UWT152000 P8 |
167 |
M20×1.5 |
15 |
10 |
9500 |
2000 |
| UCE-UWT151500 P4 |
171 |
M18×1.5 |
15 |
12 |
12500 |
1500 |
| UCE-UWT151800 P4 |
118 |
M20×1.5 |
20 |
15 |
15000 |
1800 |
| UCE-UWT202000 P8 |
128 |
M18×1 |
20 |
10 |
11000 |
2000 |
| UCE-UWT202000 P8 |
124 |
M18×1.5 |
20 |
12 |
10000 |
1500 |
| UCE-UWT20700 P8 |
112 |
1/2-20 UNF |
20 |
15 |
9000 |
700 |
| UCE-UWT20900 P8 |
133 |
1/2-20 UNF |
20 |
15 |
10000 |
900 |
| UCE-UWT20600 P8 |
121 |
M18×1.5 |
20 |
15 |
6000 |
600 |
| UCE-UWT30500 P8 |
77 |
M10×1.5 |
30 |
5 |
5500 |
500 |
| UCE-UWT28200 P4 |
92.1 |
M10×1 |
28 |
20 |
3000 |
200 |
| UCE-UWT28100 P8 |
91 |
M8×1 |
28 |
25 |
2200 |
100 |
| UCE-UWT28250 P8 |
94 |
1/2-20 UNF |
28 |
20 |
4000 |
250 |
| UCE-UWT202000 P8 |
128 |
1/2-20 UNF |
20 |
10 |
20000 |
2000 |
| UCE-UWT201500 P8 |
124 |
1/2-20 UNF |
20 |
10 |
16000 |
1500 |
| UCE-UWT201300 P8 |
128 |
1/2-20 UNF |
20 |
10 |
12500 |
1300 |
| UCE-UWT201500 P8 |
132 |
1/2-20 UNF |
20 |
10 |
11000 |
1500 |
| UCE-UWT20900 P8 |
123 |
1/2-20 UNF |
20 |
10 |
9500 |
900 |
| UCE-UWT152000 P4 |
171 |
M18×1.5 |
15 |
12 |
10000 |
2000 |
| UCE-UWT35100 P8 |
71 |
M8×1 |
35 |
25 |
2200 |
100 |
| UCE-UWT38100 P8 |
66 |
M8×1.25 |
38 |
40 |
1200 |
100 |
| UCE-UWT38200 P4 |
65 |
M8×1 |
38 |
14 |
3300 |
200 |
-
UCE company full name is Ultrasonic Components and Equipment who is one of leading company specialized in ultrasonic field located in Beijing,China. We are always committed to make the easy way for all of our user while they used ultrasonic,and do all necessary technology support.
At UCE,Ultrasonic transducer,Ultrasonic generator,Ultrasonic cleaner,Piezoelectric ceramic ,ultrasonic reactor and ultrasonic equipment,High power sonochemical system are our main service purpose,the products are the best quality with best price,also excellent sale service for you always.
We exported to Europe,America,Asia, Oceania,even Africa. such as Italy, Slovakia,Holand,France,Germany, Croatia, Slovenia, Switzerland, Portugal,USA, Moxico, Ireland, Philippines,India, Indonesia, Cote d'Ivoire,etc.
We Trust that UCE company will be come true the world wide brand name and your support is most importance and positive for us,Let’s go for Ultrasonic Industry!
