Features:
1. Advanced Control System, Excellent separation
1) 10 kinds of Accel/Decel modes can be selected, or directly set up the time of Accel/Decel; User can set up the operate parameter by themselves, to achieve the best centrifugal result.
2) Short running function, easy to diversification centrifugation.
3) Proprietary SCT speed control technical, high efficiency.
4) Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.
2. High Safety, Ease of use
1) Automatic rotor identification, no need to select rotor number.
2) Over temperature, over speed, door and unbalanced protection.
3) Steel body, Stainless steel chamber, Steel Protective sleeve.
4) Can take the rotor with aerosol-tight lid for use with hazardous samples.
3. Friendly Display, Humanity Operate
1) LCD, LED multiple-screen display, the Program, Accel/Decel modes, RPM/RCF, Time, Temperature are all easy to set up without any key combination.
2) Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be store and use 40 kinds of self-defining operating modes directly by user-self.
4. Good parts, Reliable and long-lasting
1) Brushless converter motor which has high torque, "SKF" supper speed bearing, Freon-free compressor from Europe.
2) Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).
TECHNICAL PARAMETER
|

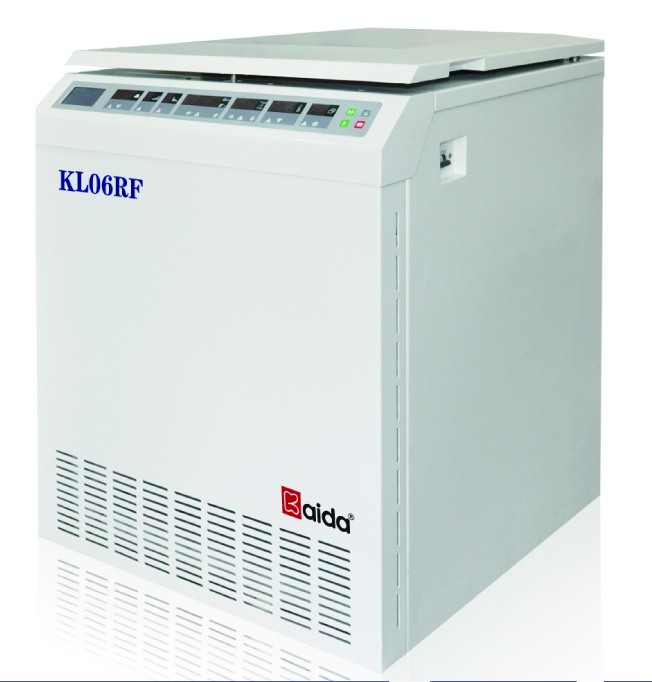

Model |
KL06RF |
|
Max Speed |
6000r/min |
|
Max Rcf |
6680×g |
|
Max Capacity |
6000ml |
|
Speed Accuracy |
±20r/min |
|
Temperature Range |
-20℃-+40℃ |
|
Temperature Accuracy |
±1℃ |
|
Time Range |
1s-99h59min59s |
|
Power Supply |
AC 220V 50Hz 35A |
|
Noise |
≤65dB |
|
Dimension |
830×720×1250mm |
|
Weight |
268kg |
Rotor
|
Model |
Number |
Capacity |
Max Speed |
Max Rcf |
Dimension of tube |
|
Angle Rotor |
No.1 |
6×500ml |
6000 r/min |
6680×g |
Φ74×168 |
|
No.2 |
6×300ml |
6000 r/min |
5650×g |
Φ62×139 |
|
Swing Rotor |
No.3 |
6×1000ml
(roundness bucket) |
4200 r/min |
5100×g |
Φ100×175 |
|
6×1000ml
(rectangle bucket) |
4200 r/min |
5100×g |
Special for blood bank
12 pieces of 400ml blood bag |
Remarks:
If you have any request of the centrifuge, please feel free to let us know. Your request will always draw our first attention
