Characteristics

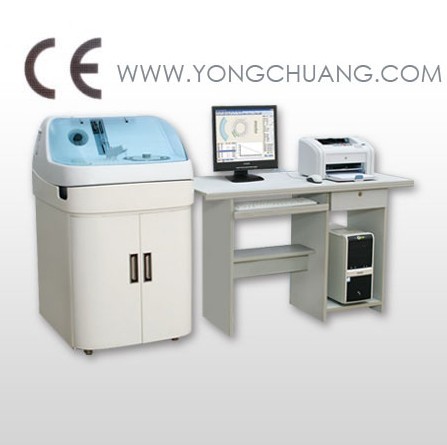

This instrument is a new, rapid and automatic biochemistry analyzer, which is made of an analyzer and desktop software. The analyzer provides fast, sensitive and accurate analysis. The software provides a friendly user interface.
The analyzer is highly reliable equipment, being constructed with characteristics of extreme strength and compactness. The analyzer can use general biochemical method such as End Point method, Kinetic method, Fixed time method, Direct abs method, Reagent blank method and Sample blank method. Dual wavelengths are supported. It also supports one point, two points and multi-points calibration (10 points max). It can use broken line, conic curve, power curve and exponential curve to process non-linear test result calculation. For purpose of data analysis and tracing, item parameters, test result of patient sample, Q.C. sample and STD sample are stored in a Microsoft SQL server database.
The analyzer supports single reagent assay and double reagents assay, with maximum 51 items. In a session, 45 samples can be analyzed with 17 items at high throughout.
The analyzer supports STAT sample insertion. STAT sample can be inserted into test sequence at any time.
The software can work under multiple operating systems, such as Windows 2000, Windows XP,Windows 2003 Server and Windows Vista. The software features a friendly user interface. Users can edit sample, run analysis, print test result, query sample’s data and graph easily. Result can be outputted by a network or a local printer in multi-printing styles. The software can also be used to organize patient’s test result processed by other devices into a report.
The analyzer is applicable to all levels of hospitals and research institutions, for the purpose of serum biochemical detection (both human and animal), special chemicals determination, and spectra-photometric determination of immunoassay and absorbance detection. Some items can also be detected by urine.
Specification :
|
Operating mode |
Selective random access |
|
Assay methods |
Kinetic, end pointer, fixed time, none linear, sample, blank, reagent blank, direct absorbance absorbance |
|
Test modes |
Routine,Batch,STAT,Profiles |
|
Available on-line item |
17 mono or double reagent |
|
Momorizable items |
51 mono or double reagent |
|
Testing Speed |
100test/hour with end pointer assay method |
|
Test repetition |
Automatic on command |
|
Calibration and controls |
Automatic on command |
|
Sample plate capacity |
45positon for sera,STD and Controls |
|
Sample volume |
From 5 to 200ul,with 1ul increment |
|
Reagent volume |
From 300 to 900ul,with 1ul increment |
|
Optional system |
Colorimetric |
|
Light source |
Long life halogen lamp,12V,20W |
|
Detectors |
8 Silicon photodiodes UV/VIS |
|
Filter wavelength |
340-380-405-492-510-546-578-630nm |
|
Light path |
10mm |
|
Photometric linearity |
From 0 to 2.500 Abs±1% |
|
Photometric sensitivity |
0.001Abs |
|
Reading cell |
Continuous flow-cell.33ul |
|
Interface |
Interface RS232 serial port |
|
Ambient temperature |
18 to 35℃ |
|
Incubation temperature |
37℃±0.1℃ |
|
Mains voltage |
220V,50Hz (Optional 115V,60Hz) |
|
Power |
140W |
|
Dimensions |
370*650*670mm |
|
Net Weight |
38KG |
|
Configurable Computer |
Personal desktop computer(17”monitor) |
|
Operating system |
Windows XP(2000,2003,Vista) |
|
Configurable printer |
24pin stylus printer or inkjet printer or laser printer |
