Laboratory vacuum filter for solid-liquid separation
- Product Detail
- Company Profile

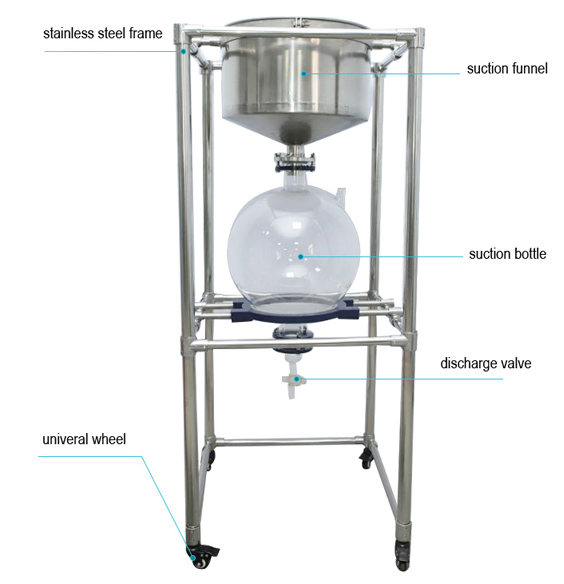

- A vacuum filter is a device designed to achieve solid-liquid separation by utilizing vacuum negative pressure as the driving force. Under the influence of this negative pressure (ranging from 0.04 to 0.07 MPa), the liquid component of a suspension is drawn through a filtration medium (such as a filter cloth), while the solid particles are retained by the medium, thereby achieving the separation of the liquid and solid phases.
- SS304 stainless steel funnel; and optional filtration pore size as requirements.
- High borosilicate glass GG3.3;
- Equipped with a PTFE valve core, excellent resistance to high temperatures as well as acidic and alkaline solvents.
- SS304 support stand, ensuring a robust and reliable structural framework with enhanced corrosion resistance.
Features
| Model | Collection volume(L) | Funnel size (mm) |
Vacuum port | Dimension (mm) |
Weight (kg) |
| KMVF-5L | 5 | 280*170 | Φ80 flange | 470*470*1400 | 48 |
| KMVF-10L | 10 | 350*220 | Φ80 flange | 490*490*1500 | 48 |
| KMVF-20L | 20 | 350*220 | Φ80 flange | 490*490*1600 | 50 |
| KMVF-30L | 30 | 450*250 | Φ80 flange | 490*490*1650 | 60 |
| KMVF-50L | 50 | 450*250 | Φ80 flange | 490*490*1750 | 60 |
| KMVF-100L | 100 | 550*320 | Φ80 flange | 580*580*2000 | 90 |

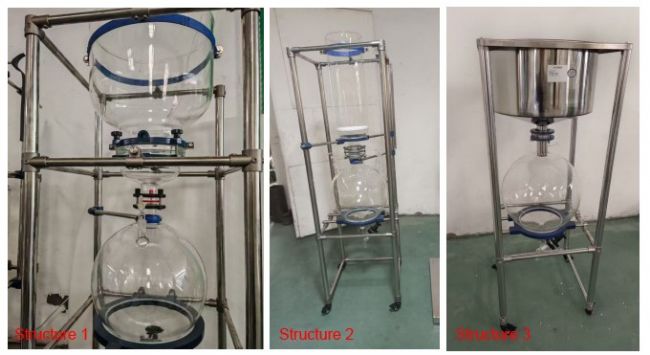

| Note: Optional material and structure. | |||||
-
