Plate filtering centrifuge
Plate filtering centrifuges are suitable for separating suspensions containing solid particles of 0.01 mm or larger—such as granular, crystalline, or fibrous materials—and for applications like dewatering after washing in textile printing and dyeing. They are widely used in industries such as chemicals, pharmaceuticals, food processing, printing and dyeing, and textiles.
Working Principle
The material to be separated enters the high-speed rotating centrifuge bowl through the feed pipe; under the action of centrifugal force, the liquid passes through the filter cloth and the perforations in the bowl,
is thrown against the inner wall of the casing, and is discharged via the liquid outlet pipe, while solid particles are retained within the bowl, thereby achieving solid-liquid separation.

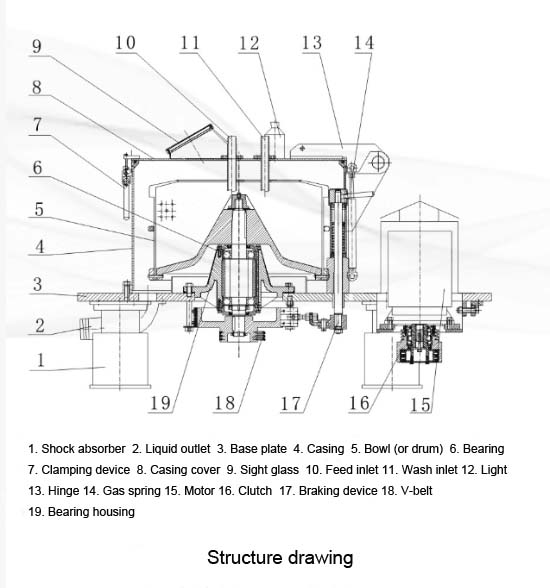

Centrifuge Main Structure:
Base assembly: Features a flat-plate design with a low center of gravity, ensuring stable operation; the flat plate serves as an operating platform, facilitating ease of use and maintenance; the casing and base are rigidly connected (welded) to form a fully load-bearing structure; designed with minimal sanitary dead zones for easy cleaning; simple structure with few wear parts; utilizes a four-point vibration-damping support system equipped with liquid-damped shock absorbers;
Large, sealed, flip-top lid assisted by balancing cylinders: The lid is equipped with a feed pipe, a wash pipe, an inspection port (tempered glass with excellent sealing), and an explosion-proof light, allowing for the observation of internal operations without opening the lid; features a reliable sealing system and a balancing-cylinder opening mechanism with spring assistance; sealing components are made of silicone rubber.
Specifications
| Model | KMPS450 | KMPS600 | KMPS800 | KMPS1000 |
| Drum diameter(mm) | 450 | 600 | 800 | 1000 |
| Drum height (mm) | 245 | 315 | 400 | 420 |
| Drum loading(kg) | 30 | 100 | 135 | 200 |
| Drum valid volume(L) | 21 | 49 | 102 | 140 |
| Rotary speed(r/min) | 2000 | 1440 | 1200 | 1080 |
| Max.separation factor | 1008 | 697 | 640 | 640 |
| Motor power(KW) | 2.2 | 4 | 5.5 | 11 |
| Weight(kg) | 490 | 800 | 1200 | 1600 |
| Dimension(mm) | 1000*750*780 | 1450*1150*1080 | 1650*1280*1060 | 2000*1600*1100 |
Application
-
KAIMINA TECHNOLOGY Integrated of manufacturing R&D and sales of equipments on synthesis reaction, mixing and separation, evaporation and fermentation etc. Our products are mainly used in chemical industry, pharmaceutical, hydrometallurgy, food, new materials, new energy, environmental protection and other fields.
The company adheres to the principle of "customer first, service first, product first", with professional processing equipment, scientific and reasonable production technology, excellence in manufacturing requirements, strict quality control system and perfect after-sales service, and the purpose of win-win cooperation. Provide professional and high-quality products and services to every customer.
Our company currently has two specialized production and processing bases, and has carried out in-depth cooperation with Tsinghua University, Zhejiang University, Central South University, Sichuan University, Chongqing University, Tianjin University, Chinese Academy of Sciences and many other universities, continuously improving our capabilities of R&D and equipment application .
