The swing-type tubular centrifuge is a special tubular centrifuge, with convenient operation and ease of maintenance.It is primarily utilized in industrial settings to separate various difficult-to-process suspensions; it is particularly well-suited for solid-liquid separations involving dilute mixtures, fine particles, and minimal specific gravity differences between the solid and liquid phases. This equipment is widely applied in industries such as chemical engineering, food processing, traditional Chinese medicine, fermentation, fruit juice and pulp fiber separation, as well as the extraction of plant-based proteins (from sources such as soybeans, peanuts, and wheat) and animal proteins.
Working principle

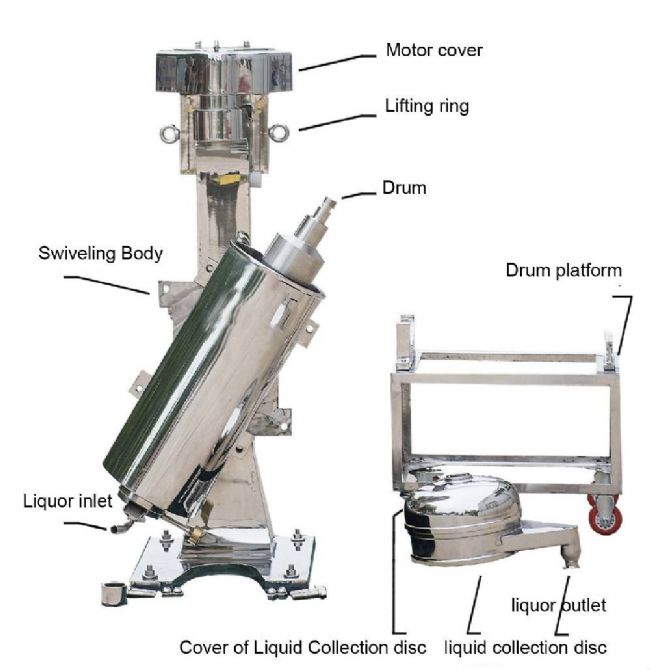

The electric motor transmits power to the main spindle via a transmission system, thereby driving the rotating drum to spin at high velocity. The material to be processed is injected into the drum through a feed inlet located at the bottom; under the influence of powerful centrifugal forces, the liquid mixture undergoes stratification. The lighter liquid phase accumulates toward the center of the drum, flows upward to the outlet at the drum's upper rim, and is subsequently flung into a liquid collection tray before draining out. Conversely, the heavier solid phase is flung against the inner wall of the drum, where it accumulates; once the machine is shut down, the drum is removed—facilitated by the tilting mechanism of the centrifuge body—to allow for the manual cleaning and removal of the accumulated solids.
Specifications
| Model | GQYT-105 | GQYT-125 | GQYT-150 |
| Drum ID(mm) | 105 | 125 | 142 |
| Rotary speed(rpm) | 15620 | 15000 | 13400 |
| Separation factor G | 15700 | 15750 | 14300 |
| Drum volume(L) | 6 | 8 | 11 |
| Throughput(L) | 1200 | 1500 | 2500 |
| Motor power (kw) | 2.2 | 3 | 3 |
| Weight(kg) | 570 | 610 | 665 |
| Dimension(mm) | 840*500*1600 | 900*550*1600 | 1020*600*1600 |
Applications

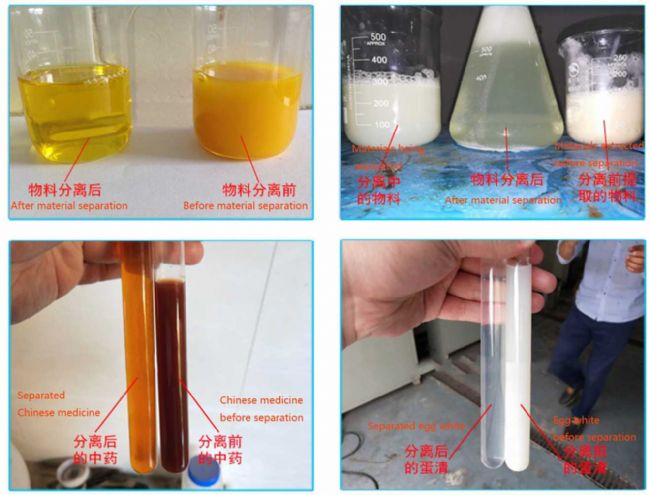

Separation result
FAQS
1. What data is required to confirm the model?
Normally 1 year warranty
3.Will you provide installation services?
Normally, we provide remote guidance online in free for a lifetime; If demand, we can arrange engineer to your project site for guidance and training.
4.Can it be customized?
Yes, optional voltage, volume, motor brand, material etc. as request.
5.Could you do small trail if we take material?
Yes, if you took material, we will arrange our professional engineer to help to do the small test and providing data analysis on site.
-
KAIMINA TECHNOLOGY Integrated of manufacturing R&D and sales of equipments on synthesis reaction, mixing and separation, evaporation and fermentation etc. Our products are mainly used in chemical industry, pharmaceutical, hydrometallurgy, food, new materials, new energy, environmental protection and other fields.
The company adheres to the principle of "customer first, service first, product first", with professional processing equipment, scientific and reasonable production technology, excellence in manufacturing requirements, strict quality control system and perfect after-sales service, and the purpose of win-win cooperation. Provide professional and high-quality products and services to every customer.
Our company currently has two specialized production and processing bases, and has carried out in-depth cooperation with Tsinghua University, Zhejiang University, Central South University, Sichuan University, Chongqing University, Tianjin University, Chinese Academy of Sciences and many other universities, continuously improving our capabilities of R&D and equipment application .
