Brief Introduction Of Tubular Centrifuge
Tubular centrifuge is a kind of high-speed precision separation equipment, energy-saving and environmentally friendly . Its principle is that the high-speed rotation of the inner drum of the tubular centrifuge generates a centrifugal field, under the action of centrifugal force, different materials including liquids and liquids, liuqids and solids are separate by different specific gravities ,

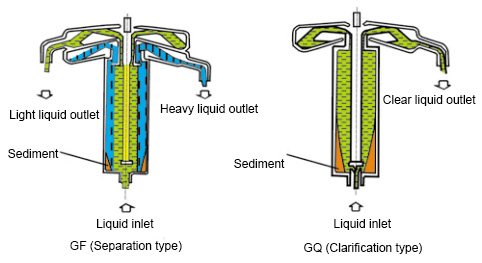

The tubular separator is fed from the bottom and discharged from the top. Solid matter remains in the drum of the equipment and needs to be stopped for manual removal.
1. According to the functions of tubular centrifuges, We have optional separation type (GF) and clarification type (GQ).
2. According to structure of tubular centrifuge,we have optional common type AND Swing type (LY) and Door opening type (LK).
3. According to different product materials, We have optional clean type/stainless steel type and spray-painted type.
Application Field Of High speed tubular centrifuge
Tubular centrifuge is a high-speed separation equipment among many separation equipments,with energy-saving and environmentally friendly. It has been widely used in the separation of materials in industries such as oil, beer, chemical industry, medicine, blood, traditional Chinese medicine, fermentation liquid, juice purification and pulp fiber separation, separation of soybean, peanut, wheat and other plants and animal whites, separation of various animal oils, vegetable oils, mineral oils, dyes, pigments, additives, dairy products, sewage treatment, etc.
Our Tubular Centrifuge With Features of High speed, More Stable, Energy saving,Environmentally friendly,High Efficient, Pleaes contact us for more details!
Specification Of High Speed Tubular Centrifuge
| Model | GQ-45 | GQ-75 | GQ-105 | GQ-112 | GQ-125 | GQ-150 |
|---|---|---|---|---|---|---|
| Inner diameter of drum(mm) | 45 | 75 | 105 | 112 | 125 | 142 |
| Rotary speed (rpm) | 10000-3000 | 19000 | 16300 | 16300 | 15000 | 14000 |
| Separation factor (G) | 19800 | 15700 | 15620 | 16660 | 15750 | 15700 |
| Drum volum (L) | 0.4 | 2.2 | 6 | 7 | 8 | 10 |
| Flux (L) | 100 | 600 | 1200 | 1400 | 1500 | 2500 |
| Motor power (KW) | 0.5 | 1.5 | 2.2 | 3 | 3 | 3 |
| Dimension (mm) | 500*420*760 | 760*450*1120 | 840*500*1600 | 900*550*1700 | 900*550*1700 | 1020*600*1700 |
| Weight (kg) | 90 | 300 | 550 | 600 | 610 | 650 |
| Model | GQ-45 | GQ-75 | GQ-105 | GQ-112 | GQ-125 | GQ-150 |
|---|---|---|---|---|---|---|
| Inner diameter of drum(mm) | 45 | 75 | 105 | 112 | 125 | 142 |
| Rotary speed (rpm) | 10000-3000 | 19000 | 16300 | 16300 | 15000 | 14000 |
| Separation factor (G) | 19800 | 15700 | 15620 | 16660 | 15750 | 15700 |
| Drum volum (L) | 0.4 | 2.2 | 6 | 7 | 8 | 10 |
| Flux (L) | 100 | 600 | 1200 | 1400 | 1500 | 2500 |
| Motor power (KW) | 0.5 | 1.5 | 2.2 | 3 | 3 | 3 |
| Dimension (mm) | 500*420*760 | 760*450*1120 | 840*500*1600 | 900*550*1700 | 900*550*1700 | 1020*600*1700 |
| Weight (kg) | 90 | 300 | 550 | 600 | 610 | 650 |
-
LIANCUI TECHNOLOGY Integrated of manufacturing R&D and sales of equipments on synthesis reaction, mixing and separation, evaporation and fermentation etc. Our products are mainly used in chemical industry, pharmaceutical, hydrometallurgy, food, new materials, new energy, environmental protection and other fields.
The company adheres to the principle of "customer first, service first, product first", with professional processing equipment, scientific and reasonable production technology, excellence in manufacturing requirements, strict quality control system and perfect after-sales service, and the purpose of win-win cooperation. Provide professional and high-quality products and services to every customer.
Our company currently has two specialized production and processing bases, and has carried out in-depth cooperation with Tsinghua University, Zhejiang University, Central South University, Sichuan University, Chongqing University, Tianjin University, Chinese Academy of Sciences and many other universities, continuously improving our capabilities of R&D and equipment application .
