Product overview

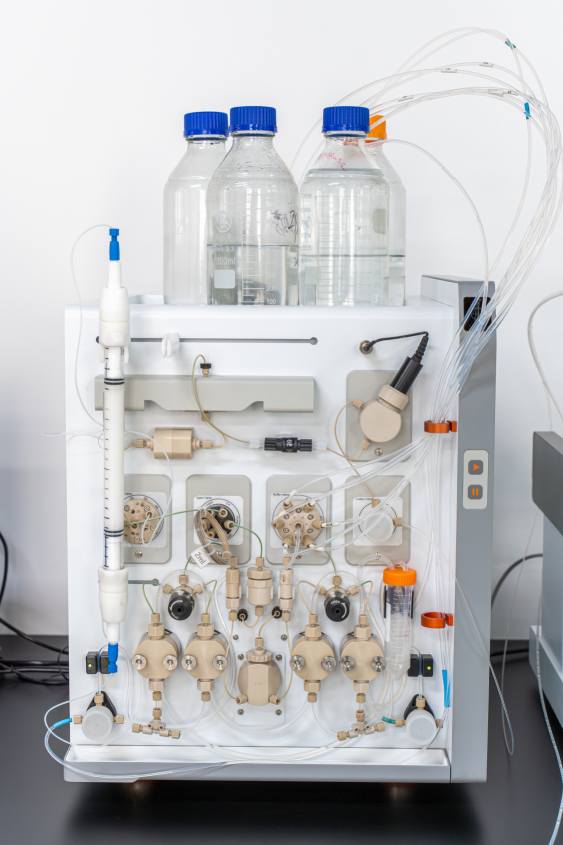

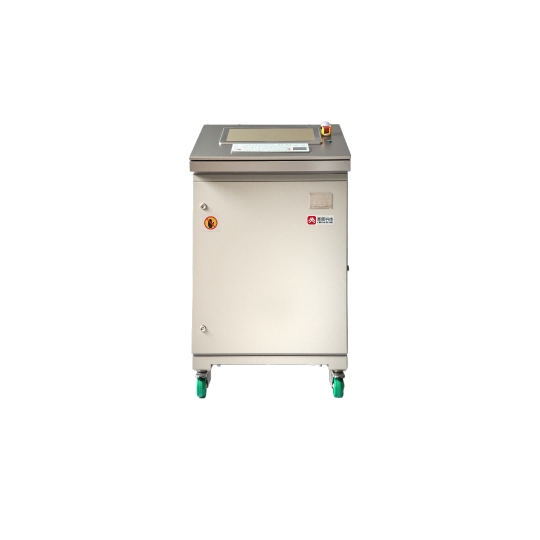

The Bio® fully automated chromatography system is designed to meet GMP and ASM BPE standards. It combines flow-path modules and automated controls to perform processes like balancing, sample loading, elution, automatic collection, and CIP (cleaning-in-place) continuously. This automation streamlines workflows, boosts efficiency, stabilizes production, and ensures consistent, repeatable product quality. The system can also be custom-designed to fit specific facility layouts or unique process needs.

Product features
1.The system uses top-tier imported components for critical parts, ensuring reliable
performance.
2.It complies with cGMP requirements and is manufactured to ASME BPE standards.
3.Product-contact surfaces are made of FDA-compliant and USP Class VI certified materials
4.Full audit trail compliance ensures traceability of all raw production records.
5.Proven software guarantees stable and dependable system operation.

Technical parameters

Model	Bio-LC30	Bio-LC100	Bio-LC150	Bio-LC600	Bio-LC1200	Bio-LC2500	Bio-LC4400
Pump	Quaternary diaphragm pump isocratic (S) single pump, gradient (G) dual pump
Flow Range	0.5-48 L/h	3-100 L/h	6-180 L/h	10-600 L/h	20-1200 L/h	100-2500 L/h	300-4000 L/h
Flow Accuracy	Single pump, 1x E+H mass flow meter, Dual pump, 2x E+H mass flow meters. Detection accuracy +0.5%, system flow accuracy +2%
Inlet/Outlet Valves	Inlet: 2-8 single pumps; 4-16 double pumps
Inlet/Outlet Valves	Outlet: 2~8
Pressure Sensor	2x LABOM pressure sensors, range 0-10 bar, accuracy +0.1 bar
Bubble Detector	Bubble Detector SONOTEC bubble detectors at inlet and pre column (detects empty/full tubes)
Bubble Detector	or AQ bubble sensor (adjustable sensitivity)
UV	OPTEK fixed wavelength (280nm/254nm), range 0-3AU (mercury lamp, 8000h lifespan)
UV	or ECOM variable 4wavelength (200-400nm), range 0-5AU (deuterium lamp, 2000h lifespan)
pH	HAMILTON, range:0-14, accuracy: +0.1, display accuracy: +0.01, temp. range: 0-130°C.
pH	Supports online calibration with report
Cond	HAMILTON,range:1μS-300mS/cm,1μS-100mS/cm accuracy:+3%,100-300mS/cm accuracy.+5%,
Cond	or OPTEK,range:1μS-850mS/cm,accuracy:+2%
Tubing material	ASME BPE(316LSS),Ra ≤ 0.4μm
System pressure	6 bar
Bubble trap volume	50ml	100ml	500ml	1000ml	2500ml	5000ml	5000ml
Tubing size	1/8”	1/4”	3/8”	1/2”	3/4”	1”	1.5”
Power supply	220VAC 50Hz	220VAC 50Hz	220VAC 50Hz	220VAC 50Hz	220VAC 50Hz	3800VAC 50Hz	380VAC 50Hz
Power	1kW	1kW	1kW	1kW	1.5kW	3kW	5kW
Size(cm)①	103H63W 98D	118H70W 105D	118H70W 105D	123H70W 13D	123H80W 120D	180H150W 180D	180H150W 180D
Weight②	140kg	150kg	180kg	200kg	280kg	580kg	780kg
Utilities	Compressed air 57 bar, tubing connector for OD 10mm air hose

Note: The ①size and ②weight equalization system is slightly different from the gradient system;
