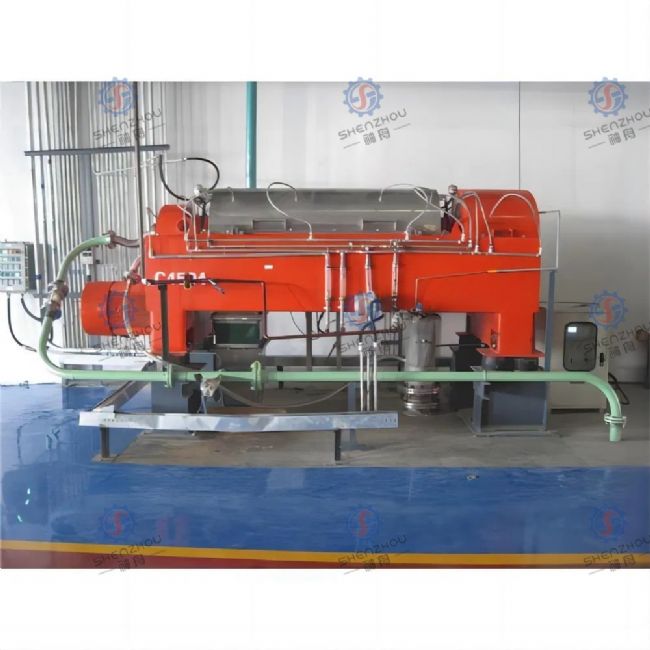

Explosion-Proof Decanter Centrifuge ATEX authentication centrifuge

The centrifuge is used in explosive or flammable applications in chemical industry, petrochemical industry, pharmacy industry and other industries, and any leakage of gas into the external atmosphere is prohibited in the course of solid-liquid separation, or used in solid-liquid separation in applications in which explosion may be caused if the external air enters the inner chamber of the centrifuge. Both ends of the bowl and the liquid outlet are airtight to achieve the airtight and flameproof effect.

Key Features

Explosion-Proof Design
- Complies with international explosion-proof standards such as ATEX and IECEx, suitable for flammable and explosive environments.
- Equipped with explosion-proof motors, explosion-proof control systems, and electrostatic elimination devices to ensure safe operation.
Fully Enclosed Structure
- The fully enclosed design prevents material leakage and volatilization, protecting operator safety and environmental health.
- Suitable for handling toxic, harmful, or highly volatile materials.
High-Efficiency Separation
- Separation factor up to 3000-5000 G, capable of efficiently separating fine particles and high-viscosity materials.
- Continuous operation with large processing capacity to meet industrial production needs.
Corrosion-Resistant Materials
- Key components are made of corrosion-resistant materials such as stainless steel (SS316/SS316L) or titanium alloy, suitable for corrosive media like strong acids and alkalis.
Automated Control
- Equipped with a PLC automatic control system for precise adjustment of parameters such as speed, differential speed, and feed rate.
- Real-time monitoring of operating status with fault alarm and automatic shutdown functions.
Energy Saving and Environmental Protection
- Low energy consumption design reduces operating costs.
- Low moisture content in separated solids facilitates subsequent processing or recycling.

Applications

Chemical Industry
- Separation of flammable and explosive organic solvents, catalysts, polymers, and other materials.
Pharmaceutical Industry
- Suitable for the separation and purification of antibiotics, active pharmaceutical ingredients (APIs), and intermediates.
Food Industry
- Handling the separation of materials containing alcohol, volatile flavors, and other substances.
Environmental Protection Industry
- Treatment of oily sludge, hazardous waste liquids, and other materials for resource recovery and environmental compliance.

Model	Technical parameter					motor power		outline dimension(mm)	Machine weight (KG)
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
	(Diameter)mm	Rotation speed rpm	Length mm	Separation factor G	capacity M3/h	Main motor KW	Vice motor KW	Dimension: L×D×H
LW250×1000	250	3600	1000	1813	1-3	7.5/11	4/5.5	2065×1050×800	1100
LW360×1200	360	3500	1200	2467	3-8	11/18.5	7.5/11	2600×1500×850	1900
LW360×1500	360	3500	1500	2062	3-8	11/18.5	7.5/11	2800×1400×850	2000
LW420×1750	420	3200	1750	2406	4-20	30/37	11/18.5	3120×1580×1050	3000
LW450×1600	450	3200	1600	2578	5-25	30/45	11/22	3780×1050×1180	3500
LW450×1800	450	3200	1800	2578	5-25	30/45	11/22	3985×1050×1180	3600
LW450×2000	450	3000	2000	2266	5─25	30/45	11/22	4320×1050×1180	3800
LW500×1800	500	3000	1800	2517	10-30	37/55	15/22	4200×1110×1200	4300
LW500×2100	500	3000	2100	2517	10-30	37/55	15/22	4500×1110×1200	4500
LW550×1800	550	3000	1800	2769	10-35	45/55	18.5/22	4380×1160×1230	4800
LW550×2200	550	2800	2200	2412	10-35	45/55	18.5/30	4780×1160×1230	5000
LW650×1750	650	2000	1750	1454	20-50	75/90	30/37	4576×1300×1250	6000
LW650×2000	650	2000	2000	1454	20-50	75/90	30/37	4900×1300×1250	6200
LW800×2000	800	1800	2000	1450	40-100	90/110	45/55	6052×1460×2100	10000
LW1000×2350	1000	1600	2350	1432	50-140	110/132	55/75	6850×1860×2300	12800
