High quality centrifuge decanter industrial wastewater separator

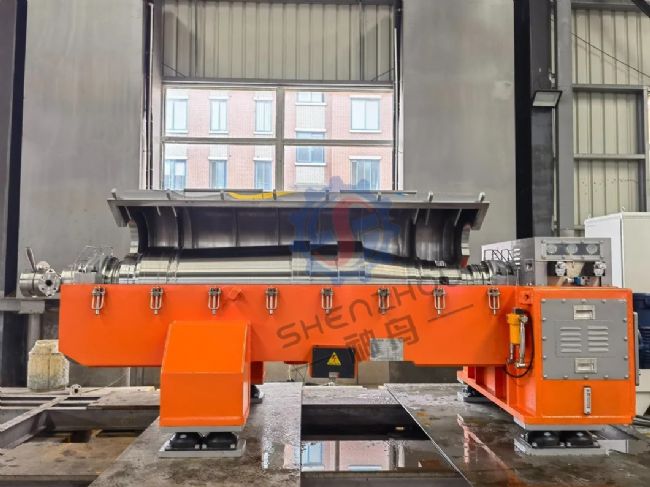

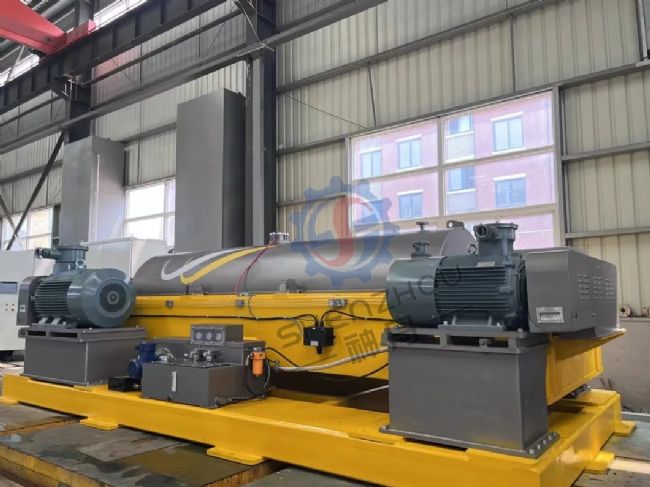

Horizontal decanter centrifuge

LW Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kinds of solid liquid suspension, defecating liquid phase with graded rains, and dehydrating sludge.

2 phase Decanter Centrifuge:
After entering into the high-speed turning drum, the solid-phase particles in the mixed liquid run and settle on the drum
wall under the action of greatest centrifugal force; the light liquid settles at the innermost place of the drum under minimum centrifugal force; same as the drum's turning direction, a screw feeder also turns at a high speed, and a constant speed difference is generated by the differential mechanism, then the liquid will be discharged by the liquid outlet.

Horizontal screw decanter centrifuge is a kind of horizontal screw unloading, continuous operation settlement equipment. The working principle of this type of centrifuge is: the drum and the screw rotate at a certain differential speed in the same direction and at a high speed, the raw material is continuously introduced into the inner drum of the conveying screw by the feeding pipe, and enters the drum after acceleration. Under the action of the centrifugal force field, the heavier solid phase deposits on the drum wall to form the sediment layer. The conveying screw continuously pushes the deposited solids to the cone end of the drum, and then discharges them out of the machine through the slag discharge port. The lighter liquid phase forms an inner liquid ring, which overflows the drum continuously from the overflow port at the big end of the drum, and is discharged out of the machine through the discharge port. The machine can continuously feed, separate, wash and discharge materials at full speed. It is characterized by compact structure, continuous operation, stable operation, strong adaptability, large production capacity and convenient maintenance. It is suitable for the separation of suspension with solid particle size greater than 0.005mm and concentration range of 2-40%.

Technical Parameter

Models	Drum diameter (mm)	Rotation rate of Drum (r/min)	Relative centrifugal force	Motor power(kw)	Productively M3/h	Weight(kg)	Dimension (LWH)mm
LW250x900	250	5400	4000	11	1-5	1050	18001200600
LW360x1200	360	1200	4200	15	3-12	2100	260015801040
LW360x1500	360	4200	3550	22	3-14	2600	290016001040
LW420x1750	420	4000	3750	37/45	6-30	3500	312015801070
LW420x2100	420	4000	3750	45	6-35	4100	345015801070
LW500x2000	500	3800	4000	45/55	10-40	6500	360023001400
LW500x2500	500	3800	4000	55/75	12-45	7200	410023001400
LW550x1900	550	3200	3154	45/55	13-50	4600	340018101110
LW550x2400	550	3200	3154	55/75	13-55	5600	390018101110
LW650x2000	650	2650	2500	55/75	15-65	7100	400023001400
