Product details

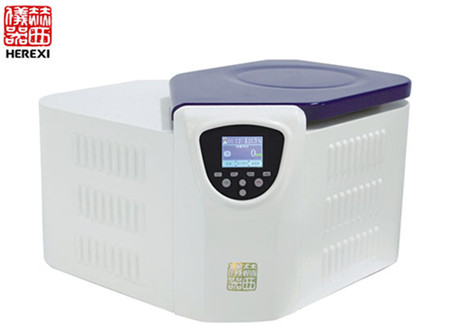

As an advanced intelligent device,3H Series Intelligent High-Speed Refrigerated Centrifuge is widely applicable in a variety of fields such as biochemistry,medical treatment and public health,food safety,life science,forestry,animal husbandry,blood banks,blood stations,biological products and pharmaceutical products.It is the ideal equipment for separation,precipitation,concentration and preparation of samples and a high-tech product than can compare favorably with import ones and be exported in large quantities.

Main Features:
Micro-controller and high-torque brushless motor provide stable operation and low noise.
Wide temperature control range: -20 ° C +40°C, can be set during the operation of the centrifuge; with pre-cooling function, it can quickly cool down to the set temperature degree; with standby cooling function.
It has various early warning functions such as over-speed, over temperature, unbalance, under pressure and overpressure, three-stage damping and shock absorption, which makes the motor run safely and reliably, and achieve excellent centrifugal effect.
TFT-LCD true color touch screen and physical button dual operation mode, can change parameters at any time during operation, the operation menu is available in multiple languages(Chinese, English, Russian, Portuguese).
The bio-safety airtight angle rotor uses a silicone rubber integral seal (EU RoHS 2015/863) to avoid fully guarantee for the safety of the staff and laboratory environment.
304 stainless steel centrifugal chamber and whole-steel casing, one-piece stamped steel front face and three-layer steel protective cover to ensure the safety of workers and laboratories.
Can store 100 sets of user-defined programs, can display the speed rise curve, centrifugal integral curve, temperature curve.
Aviation forged aluminum rotor (angle rotor only) and a variety of adapters are available, suitable for 0.2mL to100mL centrifuge tubes or reagent bottles; can centrifuge various MTP micro-plates, PCR plates, cell plates The diamond shape is beautiful, and more suitable for corner placement, saving lab limited bench space.
With CFDA & CFDA production qualification, ISO 9001, ISO 13485 and CE certification.

Specification:

Model	3H16RI
Max Capacity	4×100 ml swing rotor
Max speed（r/ min）	16800
Max RCF（×g）	19470
Standard rotor	12×1.5/2.0 ml (titanium alloy)
Speed Adjustment	±50r/min
Control and drive system	Large torque AC variable frequency motor, microcomputer contro
Temp control range	－20℃～40℃
Temp adjustment accuracy	±1℃
Operation program	100set
Total Power	1.5 Kw
Timer Range	0-99h59min
Noise	≤60 dB
Power	AV220V 50Hz
Weight	75 Kg
Dimendion（L×W×H）	710×630×350 mm

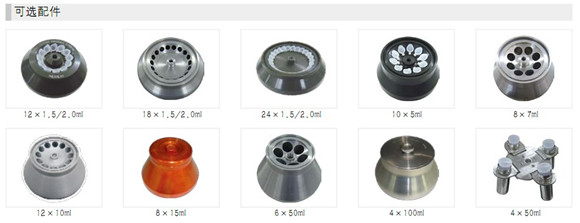

Product name	Capacity	3H16RI
Product name	Capacity	Speed	RCF
Angle rotor	12×1.5/2.0ml	16800	19470
	24×1.5/2.0ml	14000	18220
	18×1.5ml	14000	15777
	30×1.5ml	11000	12851
	48×0.5ml	12000	12357
	48*1.5ml	13000	18138
	10×5ml	13000	11660
	8*7ml	14000	12271
	12*10/5ml	12000	13820
	8×15ml(concial bottom)	12000	14830
	8×15ml(round bottom)	12000	14830
	12*10ml	6000	3740
	6×50ml(through hole)	6000	3670
	6×50ml(round bottom)	11000	11610
	6×50ml(concial bottom)	11000	12700
	4×100ml	9000	8500
Swing rotor	4×100ml	4000	2490
	12×10ml	4000	2360
	4×50ml	4000	2360
Swing micro-plate rotor	2×2×48 holes	3000	1120
