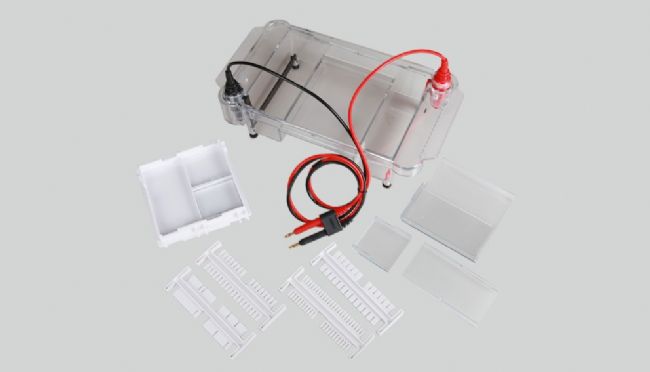

HE-120 Multifunctional Horizontal Gel Electrophoresis Cell
HE-120 Multifunctional Horizontal Gel Electrophoresis Cell
Place of Origin:
China
Brand:
Alpha
Model:
HE-120
Price:
please contact number 18934597460,Ms.Wu
Hits:
234
Updated:
4/7/2025
  • Product Detail
  • Company Profile
    The HE-120 Multifunctional Horizontal Gel Electrophoresis Cell include many features that make casting and running agarose gels simple and efficient.The HE-120 system include these features that molecular biologists ask for:

     The Mini All-purpose Gel Caster eliminate the need for gel sealing tape during gel casting

     Multiple size gel trays (6×6 cm,6×12 cm,12×6 cm,12×12 cm) supple the choice of user and retrench the dosage of agarose

     Gels can be cast while the electrophoresis unit is being used or multiple gels can be cast in advance

     Multiple combs increase the numbers of samples that analyzed per gel

     Removable gel trays allow easy manipulation of the gel throughout processing

     Safety interlock lids prevent an electrical connection from being made until the lid is properly in place


     Specifications
    Gel size (W×L) 6×6 cm
    6×12 cm
    12×6 cm
    12×12 cm
    Comb 1.0mm  25 teeth/11 teeth
    1.5mm  18 teeth/8 teeth
    1.5mm  13 teeth/6 teeth
    2.0mm   3 teeth/2 teeth
    Maximum Voltage 500V
    Typical buffer volume 1000 ml
    Typical run times for agarose 45 minutes

     Maximum Sample Volume per Well
    Comb Maximum Sample volume
    1.0mm  25teeth/11 teeth 15μl
    1.5mm  18teeth/8 teeth 25μl
    1.5mm  13teeth/6 teeth 50μl
    2.0mm   3teeth/2 teeth 80μl(Marker)/   200μl / 300μl /550μl
