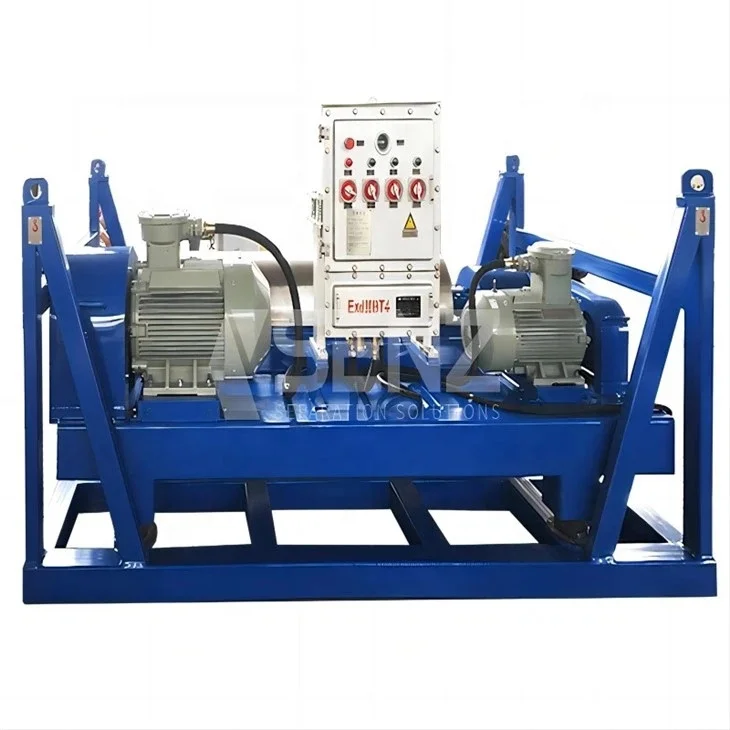

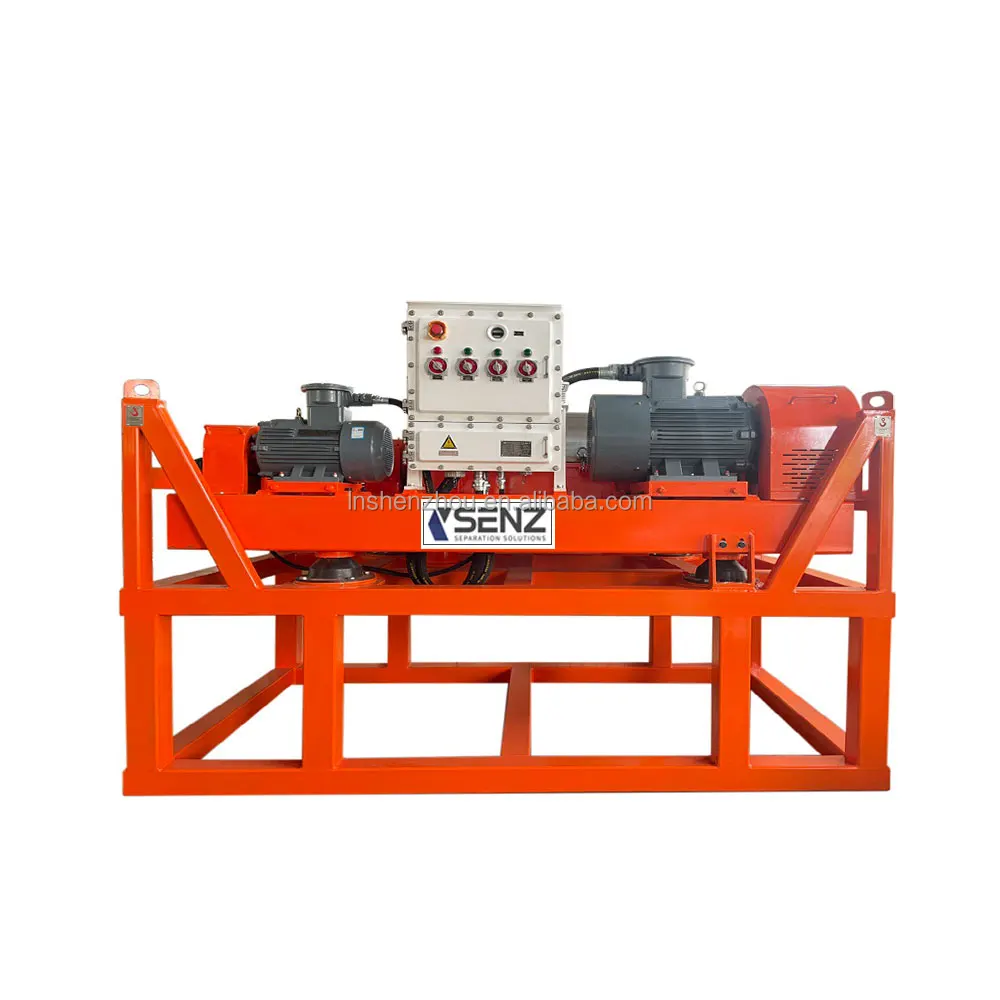

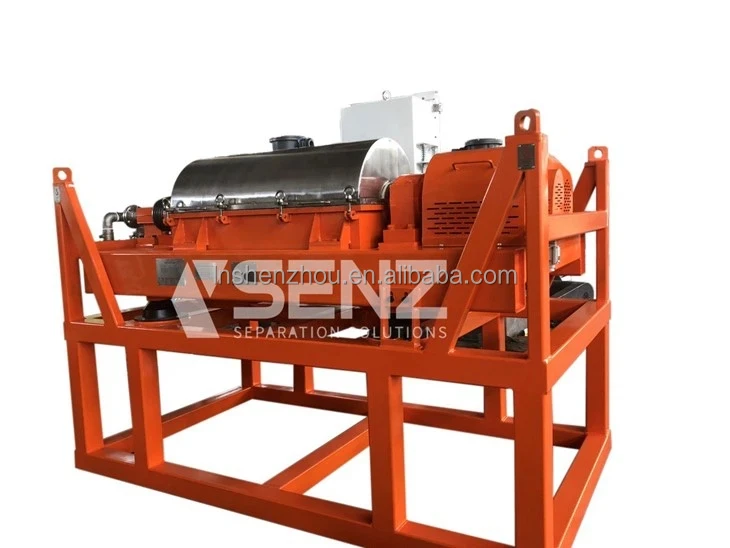

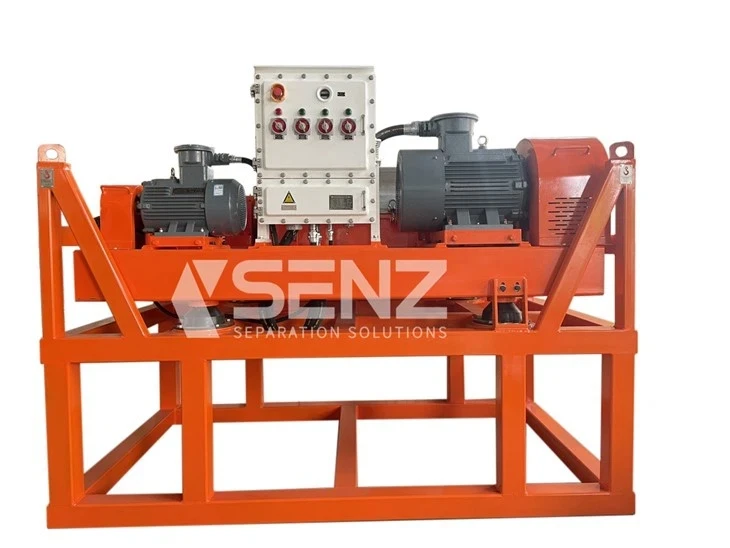

Shenzhou LWD450 PLC Control drilling mud Decanter Centrifuge used in oilfield,SHENZHOU_specification/price/image

LWD series Centrifuge for separation of detrital material of drilling muds is widely used in solid control system for drilling mud to separate the solids phase of mud, remove harmful fine drill solids such as debris, etc. in the mud fluid, or recover weighting materials such as barite etc. so as to reduce the cost of mud fluid.

3 drive modes: RFD and VFD, FHD satisfied with many customers' choice !

FHD(Fully hydrauli drive) centrifuge is driven by fully hydraulic power.

As to RFD(rated frequency drive) centrifuge, the rotating bowl speed is fixed, so the speed can be changed only by changing drive pulley;

While VFD (variable frequency drive) centrifuge can achieve large-range stepless speed regulation easily with parameters
displayed, e.g. speed and working current.

Horizontal spiral discharge sedimentation centrifuge (referred to as decanter centrifuge) is an effective separation equipment which use centrifugal acceleration generated by high-speed rotation into the acceleration of gravity to shorten thousands of times of the settlement time of solid particles than in the gravity field.

The solid particles are discharged from the drum through the screw conveyor continuously and without interruption.

Centrifuge Drum and spiral parts titanium welding with 304/316 / 316L/321 stainless steel, stale performance and long service, warmly welcomed by the customers at home and abroad.

Circumstance Conditions:

Explosion protection Grade: ExdⅡBT4
Ambient temperature: -20°C～+50°C
Relative humidity of ambient air: ≤95%
Corrosive environment: No active gas or steam that will destroy the metal
Degree of electrical protection: IP55

Specification

Model	LWD450*1000	LWD450*1250	LWD355*1250-1	LWD355*1250-2
Bowl diameter	450mm	450mm	355mm	355mm
Bowl Length	1000mm	1250mm	1250mm	1250mm
Bowl speed	220rpm	3200rpm	3200rpm	320rom
Max Capacity	50M3/H	50M3/H	40M3/H	40M3/H
G-Force	815	2035	2035	2035
Gear box speed	40r/min	30r/min	30r/min	30r/min
Gear box ratio	35:1	57:1	57:1	57:1
Main motor power	30kw	37kw	30kw	37kw
Auxiliary motor	7.5KW	7.5KW	7.5KW	7.5KW
EX Standard	EddIIBt4/IECEX/A-TEX
Weight	2700kg	3200kg	2900kg	3200kg
Dimension	290019001750mm	260018601750mm	260016201750mm	260016201750mm
