Fluorometer

Description

Fluorescent Immunoassay technology has strong specificity, high sensitivity and good practicability, which is widely used to measure nucleic acids (dsDNA, Oligo, RNA), proteins (enzymes, receptors, antibodies), hormones, drugs and microorganisms and other low concentration bioactive compounds.

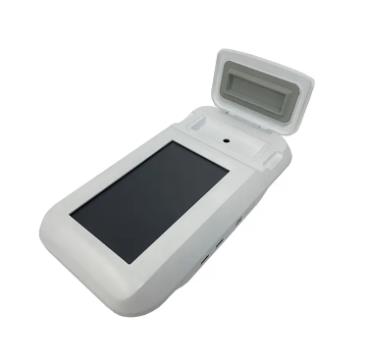

SH-FD 100 fluorometer is based on fluorescence immunoassay technology and the principle that the fluorescence intensity is proportional to the concentration at low concentrations, and to analyze samples qualitatively and quantitatively by detecting fluorescence intensity.

Features

·7-inch color touch screen, easy to operate
·Only 3s to detect the sample concentration
·The minimum detection concentration can be 0.5pg/ μ L

·Dual channels for detecting two kinds of fluorescence simultaneously

·The response range can reach 5 orders of magnitude

·It works for most reagents

·Store up to 10000 pieces of data, which can be exported through U disk or print

Parameters
Model	SH-FD 100	Light Source	Monochrome LED
Sample Capacity	1	Detector	photodiode
Sample Volume	1-20μl	Display	touch screen display
Tube Type	0.5ml PCR tube	Programs stored	10000
Channel number	2	Data Export	U Disk
Measurement Time	3s	Data Format	CSV PDF
Repeatability	< 1.5%	Data Interface	USB(Type A)2 USB(Type B)1
Calibration Method	2 or 3 point calibaration	Power adapter	100-240V@50-60Hz
Response range	Five orders of magnitude	Voltage	DC12V 2A
Linearity	R2 ≥ 0.995	Net. Weight	1.0Kg
Excitation wavelength	470/625(standard) 365/525(optional) Power		4.5W
Emission wavelength	525/690(standard) 460/620(optional)
Concentration Range	0.01ng/μl-120ng/μl dsDNA HS 0.2ng/μl-2000ng/μl dsDNA BR 0.05ng/μl-240ng/μl Oligo 0.1mg/ml-20mg/ml protein BR
