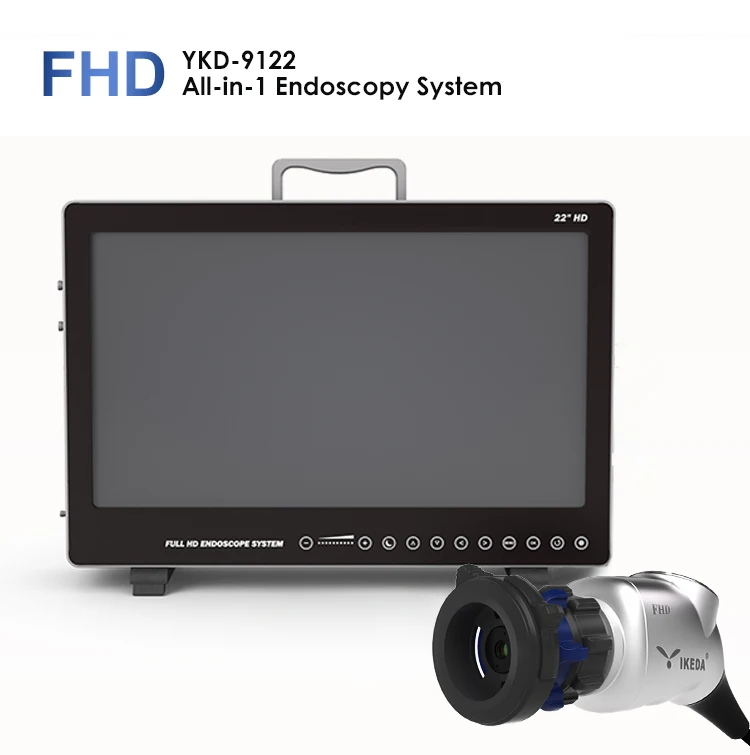

YKD-9122H ALL-IN-ONE Endoscope Camera System
IKEDA ALL-IN-ONE Endoscope Camera System integrates host, LED light source, monitor, video storage and video playback.YKD-9122-H Endoscope Camera System can be used for arthroscopy, ENT, PTED(percutaneous transforaminal endoscopic discectomy), cystoscope, percutaneous nephroscope, ventriculoscope, ductoscope, hysteroscopy, urology resectoscope, plastic surgery endoscope, laparoscope,breast implant endoscope, thoracoscopy, fiber nasopharyngoscope, fiber ureteroscope, etc.

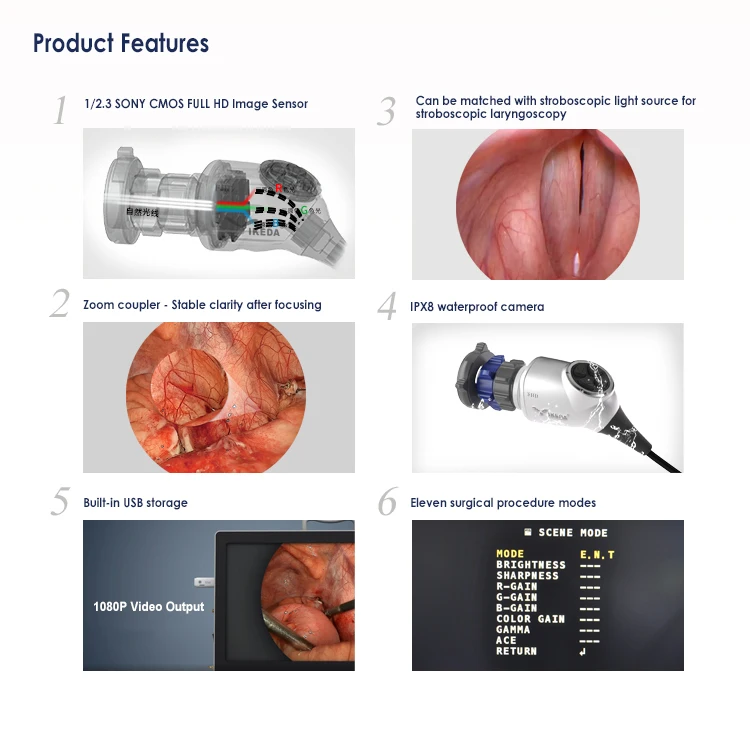

Produce Features:
• Portable and compact all-in-one system
• Can be matched with stroboscopic light source for stroboscopic laryngoscopy
• All-in-one design integrates 22-inch FHD monitor, LED light source, and camera control unit.
• Dual-operation Control System(Touch Screen+Mechanical Bottons)
• Built-in USB FULL HD image storage, Integrated photo/video recording system
FHD Camera
• IPX8 waterproof camera
• User-Definable : Photo Capture/Video Recording/Zoom in/Zoom Out/White Balance
• Universal C-mount threading
• Lightweight and ergonomic design
Technical Parameters
|
Camera head
|
· Full HD imaging (1920 x 1080)
|
| · IPX8 waterproof |
| · Full HD optical coupler C-mount standard |
|
Video system
|
· Image resolution: FHD 1920 x 1080
|
| · Horizontal resolution: ≥1200 TVL,Tolerance 20% |
| · SNR: 60dB,Tolerance 20% |
| · Scanning system: Progressive Scanning |
| · White balance automatically |
|
Screen Size
|
· 22 inch |
|
Light Source
|
· Built-in 80W LED cold light source |
|
Recording (Options)
|
· Image format: JPG 1920 x 1080
|
| · Video format: Full HD 1920 x 1080; |
| Mpeg-4 (H.264 Codec); Image rate 60fps |
| · Connection: USB |
|
Connections
|
Video out terminal: |
| · 1x DVI |
| · 1x HDMI |
| · 1x CVBS |
|
Features
|
· White balance |
| · Freeze function |
| · Zoom in/Zoom out |
| · Touch Buttons/Touch Screen |
| · USB storage |
| · Photo capture/Video recording |
|
Language
|
· Chinese/English/Japanese/Korean/Russian/Spanish |
