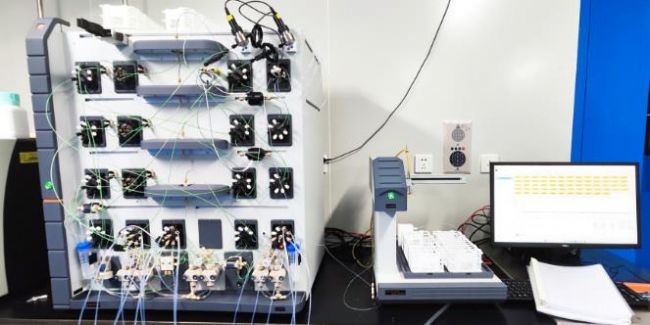

Continuous Flow Purification System (CCS)
Purpose: Continuous separation and purification of antibodies, proteins, biochemical products, and other fields;
Product features:
(1) Reduce space, filler volume, and process time;
(2) Real time monitoring and control of process performance;
(3) Continuous chromatography with higher utilization rate of chromatography packing combined with loading capacity and less use of buffer solution
(4) Can significantly improve productivity and production capacity
(5) Continuous operation and automatic chromatography column switching
| 1 | entry name | model | model |
| 2 | Continuous Flow Purification System (CCS) | CCS25 | CCS100 |
| 3 | System elution pump | 0.001-25ml/min | 0.001-100ml/min |
| 4 | Sample pump | 0.001-25ml/min | 0.001-100ml/min |
| 5 | Inlet valve | A1-A8，B1-B8，S1-S8 | |
| 6 | Column front and column rear pressure module | Online monitoring of the front pressure and differential pressure of three chromatographic columns, and overpressure alarm | |
| 7 | Pump selection valve | Used for switching between pumps | |
| 8 | Column flow path selection valve | Switching of valves between user chromatographic columns | |
| 9 | Column valve | Column position selection. Positive/negative/Bypass, column front pressure monitoring | |
| 10 | Column valve | Column position selection. Positive/negative/Bypass, post column pressure monitoring | |
| 11 | Outlet valve | Exit selection (out1 out 9) | |
| 12 | UV detector | 280nm fixed wavelength, optional with other specifications | |
| 13 | Component collector | Can hold two 15ml or 50ml Test tube rack | |
| 14 | PH detector | 0-14 | |
| 15 | Conductivity detector | 0.001-999.99（mS/cm） | |
| 16 | Bubble sensor | Used to monitor the drying of bubbles or flow paths during sample loading | |
| 17 | Software workstation | Including computer, monitor, host, etc | |
-
Suzhou COSTONES Instruments Co., Ltd. (COSTONES) is an instrument company focusing
on separation and purification. It is an equipment supplier and service provider
for biopharmaceutical, cell therapy and gene testing. It is committed to providing
users with industry-leading technical support and services.
The company has a perfect service system and executive power. It interprets the
user experience from the four aspects of technical communication, scheme design,
technical support and after-sales service, and tries to achieve seamless connection
in every link until it is recognized by customers.
For a long time, we have maintained good cooperative relations with domestic and
foreign suppliers. The main products include protein purification system,
compressible chromatographic column, ultrafiltration system, chromatographic
ultrafiltration accessories, etc., and provide maintenance services and customized
product services;
At present, Suzhou quarrying has provided high-quality services for
biopharmaceutical, cell therapy, research institutes and scientific research users.
It has carried out in-depth cooperation with customers and become a reliable partner
for customers to achieve win-win results.
We take quality first as the standard, quickly respond to customer needs, help
customers solve problems, improve efficiency, and take improving core
competitiveness for customers as our service tenet. We are willing to realize our
own value while creating value for customers and society through our unremitting
efforts.
