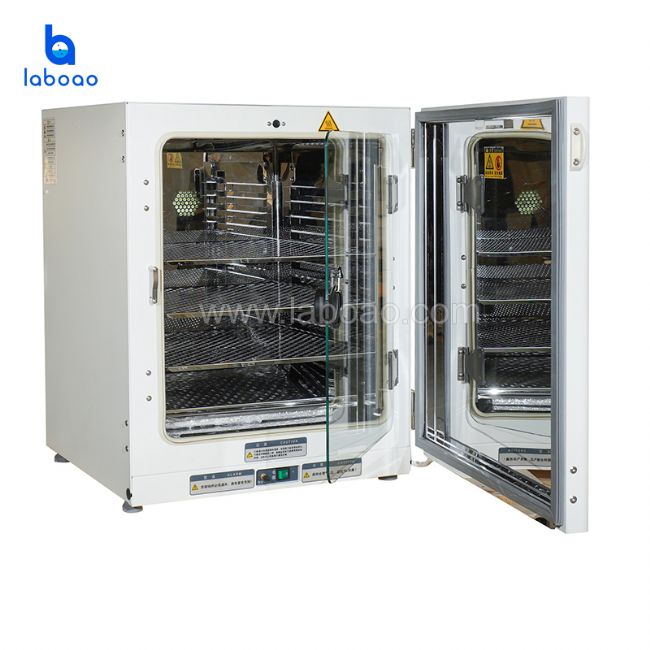

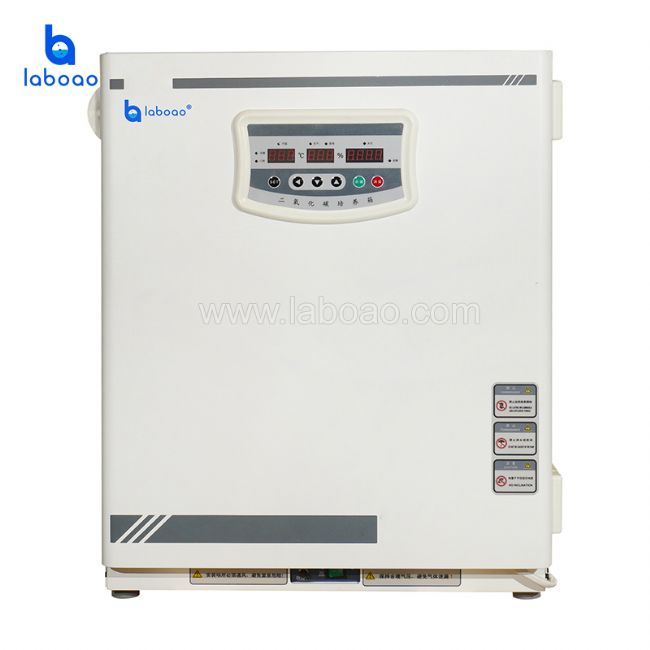

- Co2 Incubator with Microcomputer temperature controller
- Product Detail
- Company Profile
- 1.Description
The carbon dioxide incubator is an advanced instrument for culturing cells, bacteria, and microorganisms. It is an essential product for immunology, genetics and bioengineering research. Widely used in medicine, agricultural science, pharmaceutical research and production.
2. Feature
1. The far-infrared CO2 sensor responds quickly, with precise concentration control and automatic calibration.
2. The breeze circulation system does not interfere with cell culture.
3. When the door is opened, the fan will automatically stop to prevent the air from crossing inside and outside, and the heating will stop to prevent overshoot.
4. Direct heating six-sided heating + air jacket design, rapid heating, no overshoot, ensuring good uniformity.
5. SUS304Cu mirror stainless steel arc inner liner has antibacterial function, which can effectively prevent experimental pollution. The bottom heating natural evaporation and humidification water tray ensures a high-humidity culture environment.
6. The hidden UV germicidal lamp disinfects the humidified pan water and circulating air to ensure a clean experimental environment.
7. Double doors, strengthened glass double sealed inner door to prevent CO2 gas from overflowing.
8. The design of the outer door with adjustable direction can choose left and right opening according to different usage habits.
9. The inner door has heating function to prevent condensation.
10. The air intake high efficiency filter DUF can filter dust above 0.33u with an efficiency of 99.97% and minimize the pollution in the box.
11. Over rise alarm, CO2 abnormal alarm, low water level alarm.
12. PID control, convenient operation, fixed value operation, timing operation, automatic stop, power failure memory, power failure compensation, quick stop start.
13. Dedicated function keys realize temperature setting.
14. Auxiliary menu, realize over-rise alarm, deviation correction, and menu lock.
15. Patent number: 201320059701.3
3.Specification
| Model | LYX-50 | LYX-150 |
| Type | Six-sided heating + breeze circulation + air jacket | |
| Temperature control range | RT+5℃-55℃ | |
| Temperature resolution | ±0.1℃ | |
| Constant temperature fluctuation | ±0.1℃ | |
| Temperature uniformity | 0.35℃ | |
| CO2 control range | 0-20% | |
| CO2 distribution accuracy | ±3% | |
| Humidity in the box | ≥90% | |
| Interior | SUS304Cu mirror stainless steel | |
| Exterior | cold-rolled steel plate, surface chemical-resistant coating | |
| Thermal insulation material | polyurethane | |
| Heater | Silicone heating patch | |
| CO2 inlet | φ8mm | |
| CO2 filter | DUF imported | |
| Partition | SUS304Cu mirror stainless steel | |
| Temperature control method | PID | |
| CO2 concentration control method | PID | |
| Temperature setting method | touch 6 button to set | |
| Temperature expression method | 3 digits | |
| CO2 concentration indication method | 3 digits | |
| Timer | 0-9999 minutes (with timing waiting function) | |
| Operation function | fixed value operation, timing operation, automatic stop, quick stop start | |
| Additional functions | deviation correction, menu button lock, power failure compensation, power failure memory | |
| Temperature sensor | Pt100 | |
| CO2 concentration sensor | imported | |
| Water level sensor | imported | |
| Additional function | Deviation correction, menu key lock, power failure compensation, power failure memory | |
| Safety device | Over-rising alarm, menu lock, CO2 abnormal alarm, low water level alarm, power failure protection | |
| Chamber size (mm) | 350x380x380 | 500x500x600 |
| Dimension (mm) | 465x480x580 | 615x700x800 |
| Package size (mm) | 640x734x711 | 790x850x931 |
| Volume | 50L | 150L |
| Tray loading weight | 15kg | 15kg |
| Tray No. | 3 | 3 |
| Max. tray No. | 6 | 6 |
| Tray distance | 35mm | 35mm |
| Weight (Net/Gross) | 46/55kg | 76/88kg |
| Rated power | 0.18 kw | 0.33kw |
| Power | AC220V / 0.8A | |
| Optional | Separator, multi-gas culture, automatic switching of dual gas cylinders | |
-
