- Mini-Protein Electrophoresis Cell Protein Electrophoresis Machine

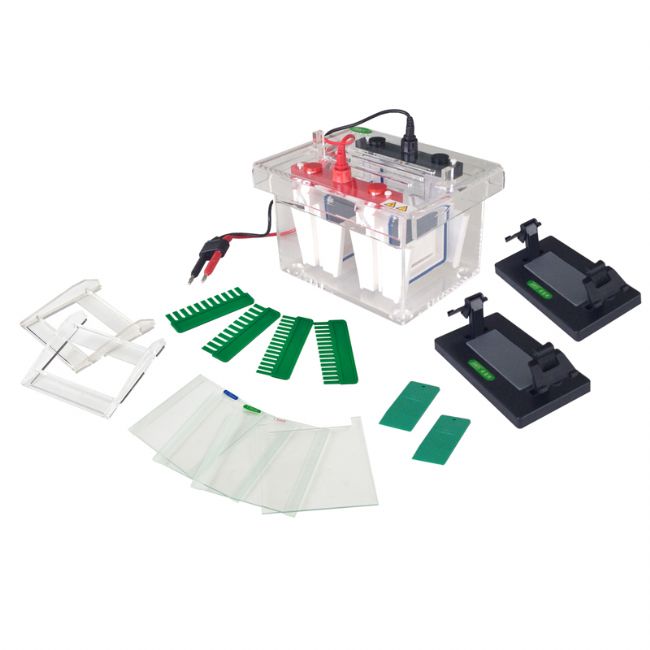

Product Image
FeaturesWith two gel castings, can cast 1-4 plates of gels at the same time. There are two methods of “casting gel in original position” and “multi-casting gel” for option.
• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With the gel making device of normal position, don’t should to moving the glass plate from the process of making gel to electrophoresis, convenient for observation the gel preparation from the glass on both sides, ensures fast set up times and leak-free operation.
• Safety cover open button design, convenient opening the cover；
• With the background color, easy to be observed in the sample adding and electrophoresis process；
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
Technical Parameters
|
Model
|
FSF-SCZ4+
|
|
Glass plate size(W*L)
|
100*100 mm
|
|
Gel Size(W*L)
|
82*88 mm
|
|
Gel thickness
|
1.0,1.5(mm)
|
|
Gel amount
|
1~4(pieces)
|
|
Sample volume
|
(1.0mm)11,15wells;(1.5mm)11,15wells
|
|
Buffer Volume
|
1000ML
|
|
Dimension(L*W*H)
|
220*170*120(mm)
|
|
Net weight
|
2.5KG
|
-
Professional manufacturer of Laboratory equipment:
Drying Oven, Incubator, Heating Mantle, Magnetic Stirrer, Water Baths, Laminar Flow Cabinet, Furnace, Autoclave, Claminar Chamber, Plant Growth Chamber and etc.
All our FAITHFUL products have passed the CE Certificate.
