- Mini-Protein Vertical Electrophoresis Cell Gel Electrophoresis System For Protein Test

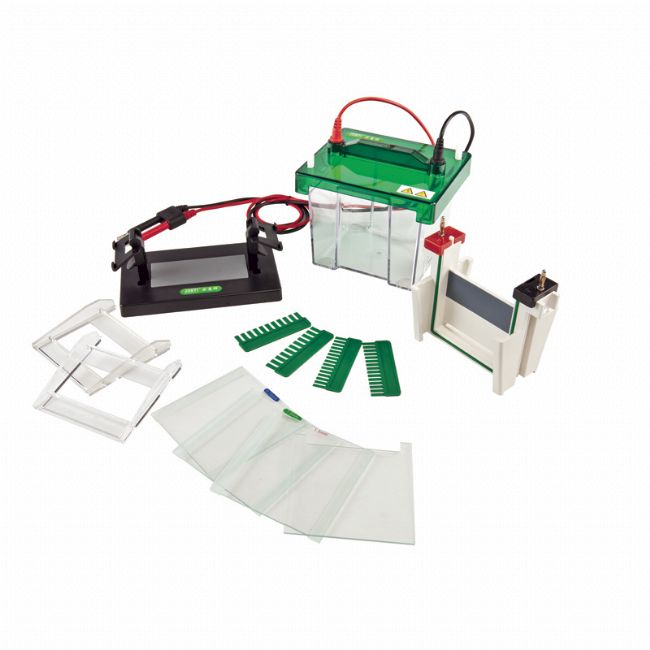

Product Image
Features• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.
• High transparent polycarbonate material injection molding, impact resistance, high temperature resistance, corrosion resistance.
• Safety cover open button design, convenient opening the cover.
• With the background color, easy to be observed in the sample adding and electrophoresis process.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.
Technical Parameters
|
Model
|
FSF-SCZ2+
|
|
Glass plate size(W*L)
|
100*100 mm
|
|
Gel Size(W*L)
|
82*88 mm
|
|
Gel thickness
|
0.75 ,1.0,1.5(mm)
|
|
Gel amount
|
1~2(pieces)
|
|
Sample volume
|
(0.75mm)11,15 wells;(1.0mm)11,15wells;(1.5mm)11,15wells
|
|
Buffer Volume
|
750ML
|
|
Dimension(L*W*H)
|
150*120*115(mm)
|
|
Net weight
|
1.5KG
|
-
Professional manufacturer of Laboratory equipment:
Drying Oven, Incubator, Heating Mantle, Magnetic Stirrer, Water Baths, Laminar Flow Cabinet, Furnace, Autoclave, Claminar Chamber, Plant Growth Chamber and etc.
All our FAITHFUL products have passed the CE Certificate.
