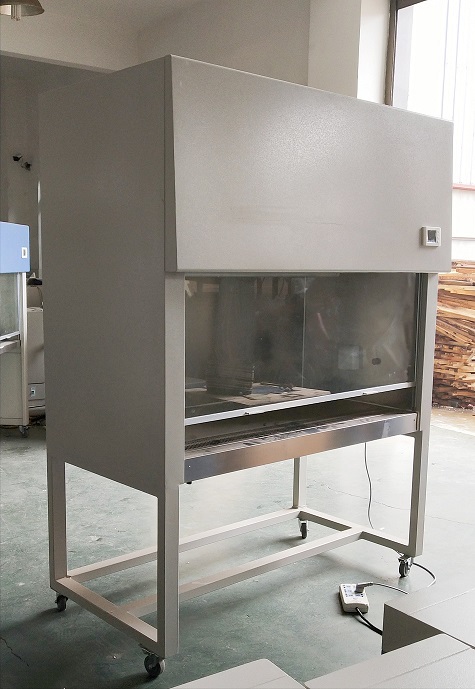

100% Air Discharged B2 Type Class II Biosafety Cabinet

Features

This product is a second grade biosafety cabinet, it protects the operator through vertical air flow.
Adoption of high quality cold-rolled steel sheet and electrostatic spraying, the complete machine is elegant in design. Three walls of the operating area as well as the bench top are made of finished stainless steel, and the three walls are integrative formed, it is seamless round corner structure inside, preventing the dusty air being leaked, and it is convenient for cleaning.
It adopts international advanced air filtration technology, unique inner chamber design, negative pressure vertical circulating flow as well as air curtain design preventing internal and external crossing over.
The control system employs intelligent microcomputer control, LCD and audible & visual alarm, whole process monitored and high efficiency air feed/exhaust filter.
High quality filter, the filtration effect reaches 99.99% above.
Counterweight type movable operating door enables users to position at will as required.
Equipped with illuminating lamp and ultraviolet germicidal lamp.
Equipped with special watertight socket and pollution discharge interface, which brings much convenience to the operators.

Technical Parameters

Model	BSC-1200IIB2
Cleaning level	Class 100(Federal Standard 209E)
Bacterial count	≤0.5 pcs/ dish·hour
Average wind speed	Inside the door	0.38±0.025m/s
	Middle side	0.26±0.025 m/s
	Inside	0.27±0.025 m/s
Front inlet wind speed	0.55±0.025 m/s
Air tightness	≤10-6L/S(at 500Pa)
Noise	≤60dB(A)
Vibration/peak mesial magnitude	≤5μm
Power supply	AC single unit 220V/50Hz
Max power consumption	0.8KW
Weight	300KG
Dim. of working area	1100×600×680mm
Outline dim. of device	1200×805×2230mm
Spec. & qty. of air feed filter	960×520×50×1
Spec. & qty. of air exhaust filter	668×305×90×1
Spec. & qty. of fluorescent lamp/ultraviolet lamp	30W×1
Remark	0% of air for circulation, 100% of air is discharged to exhaust piping through pipeline

Packaging& Shipping

Because the weight and dimension are big, the lab benches, fume hoods or lab cabinets are generally going to be only shipped by Sea;

They would be packed in cartons (FCL shipping) or plywood boxes(LCL shipping) in assembled or disassembled state.

While Air shipping is available if you accept the shipping cost.

Application

The biosafety cabinet is an indispensable basic facilities for current biological laboratory, especially suitable for occasions where are required to take protective measures for the operators, such as providing asepsis and dust-free working environment for bacterial culture for medical health, pharmacy, scientific research and so on.

Company Profile

Xuecheng Global Trader Co., Ltd is one professional industry and trade company

for lab furniture, integrating production, R&D, sales, installation and after-sale service

, located in beautiful Olympic Sailing City- Qingdao, China.

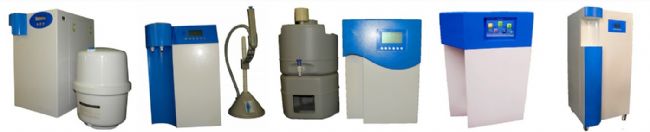

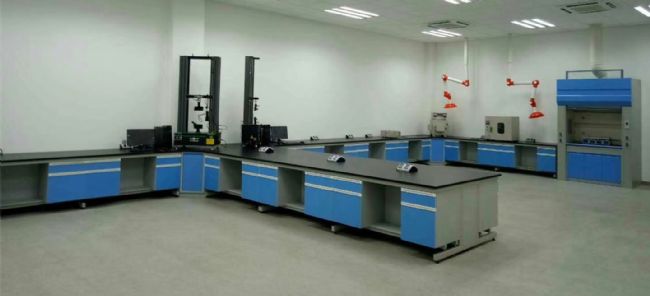

After years' development, we have grown into one diversified company, engaged in all kinds of lab furniture, lab water purification system, lab equipment, medical equipment, etc

Workshop& Production Line

1. Raw materials preparation (kinds of boards, sheets)

2. Cutting

3. Punching

4. Welding

5. Bending

6. Baking and Painting(semi- product)

7. Assemly

8. Packing

7. Shipping

Certificate:
CE, SGS

Pls Contact us for more!
