F-MS Intelligent Moisture Analyzer

Product Description

1.Halogen heating.

2.Pansize : Dia 100mm

3.7 inch touch screen

4.Long distance operate

5.Stainless steel chamber

6.Easy cleaning after testing.

7.Temperature and time can be set.

8.The percentage of moisture content.

9.Max 230 degree heating temperature.

10.Automatic open the heating chamber.

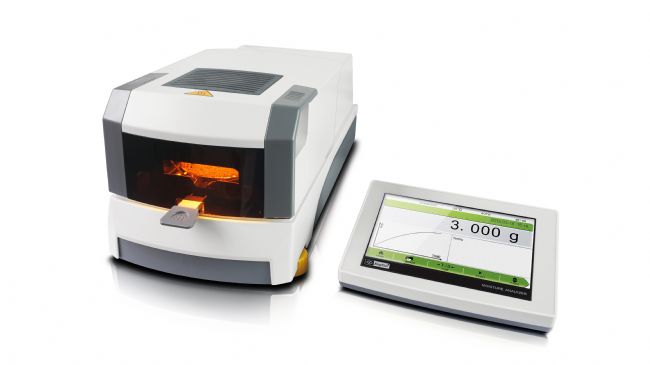

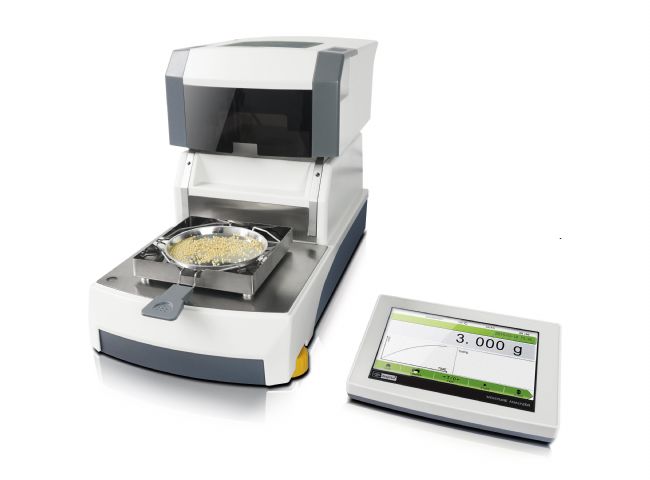

Product Image

Technical Parameters

Mode	F-100MS	F-100MS(plus)			F-200MS	F-200MS(plus)
Range (g)	110g				210g
Readability(g)	0.001g				0.001g
Operating Temp	5℃-35℃
Pan Size	Ø100mm
Heat Source	Halogen Lamp
Temp.Sensor	PT 100
Temp. Range	40℃-230℃
Temp.Step	1℃
Moisture Range	0.00%-100.00%
Moisture Readability	0.01%
Dry Residual Range	100.00%-0.00%
Dry Residual Readability	0.01%
ATRO	100%-999%
ATRO	0%-999%
Temp Setting	40℃-230℃ By 1℃ Step
Time Setting	1-99min by 10 s
Number Of Storage	20
Number Of History	20
Heater	220V ±15% 50HZ/ 110V±15% 60HZ 400W
Balance	Input: 220V 50HZ/110V 60HZ Output:9V
Machine	Input: 220V 50HZ/110V 60HZ Output:24V (Dual-drive)
Host Dimension	215X195X415mm
Indicator Dimension	200X75X135mm
Operation Height	275mm
The Chamber Height	35mm
Display	7 inch touch panel
Interface	RS232/RJ45/USB...
Communication Mode	Cable		Wireless	Cable			Wireless
Rechargeable Battery	No		10,000mAh	No			10,000mAh
Calibration	External Calibration
Function expansion	Customized
