60L~10000L Mineral Water Machine for commercial water,Sichuan Zhuoyue Water Treatment Equipment Co.,Ltd._specification/price/image

Product Detail
Company Profile

ZYCJS series of straight drinking pure water purification is a water treatment and purification equipment which use reverse osmosis technology to remove the heavy metals, bacteria, viruses, organic matter, industrial pollutants and other harmful substances in water, through the pretreatment system, reverse osmosis device, sterilization treatment system, Cleaning system and electrical control system, can be municipal tap water or groundwater purified to meet the national health drinking water standards.

The Technical Parameters of Mineral Water Machine:

Raw water

Tap water, ground water,(water test report can be provided),

water pressure > 0.3MPa, the best working temperature of 25℃

Raw water condition

water TDS ≤ 500PPM

Out water

Water conductivity ≤ 20 us/cm

The Mode of Mineral Water Plant:

NO	Model	Water production (L/H)	Voltage/Power (V/Kw)	Device host size (LWH mm)	Water tank (L/material)
	ZYCJS-60L	60L	220/0.05	7006001400	11G Pressure bucket
	ZYCJS-120L	120L	220/0.05	7006001400	11G Pressure bucket
	ZYCJS-150L	150L	220/2.5	7006001400	20G Pressure bucket
	ZYCJS-250L	250L	380/2.5	15006001400	250/stainless steel/PE
	ZYCJS-500L	500L	380/3.5	15006001400	500/stainless steel/PE
	ZYCJS-750L	750L	380/4.5	15008001600	750/stainless steel/PE
	ZYCJS-1000L	1000L	380/6.0	15008001600	1000/stainless steel/PE

Note: Customization is available.

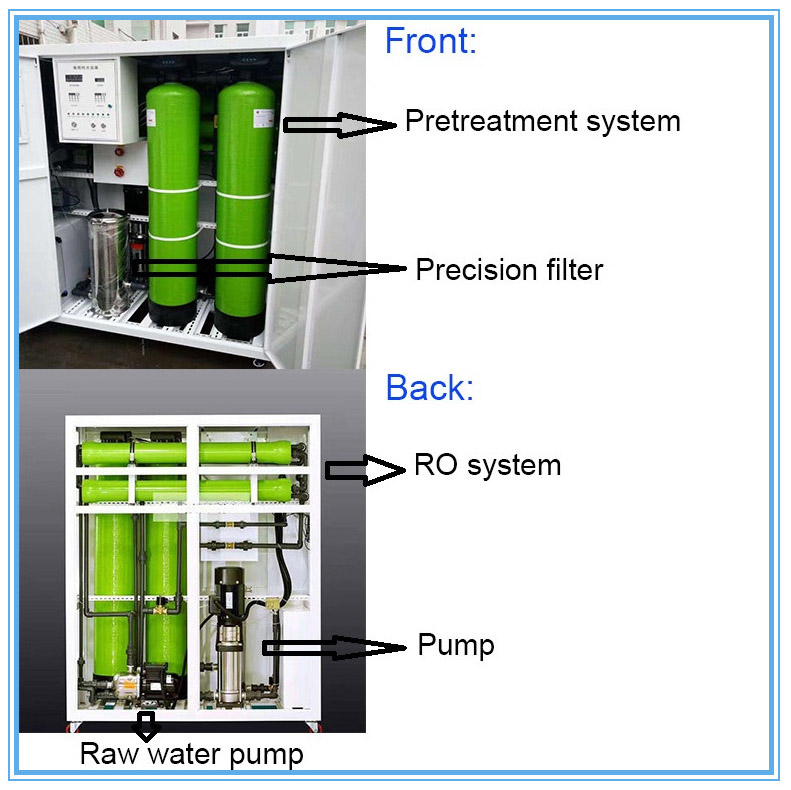

The Performance Characteristics of Mineral Water Machine:

• Electronic control system using manual / automatic integration;

• Pretreatment system automatic flushing function;

• The reverse osmosis body hosts with the function of automatic flushing and water tank full automatic double washing, which can extend the RO membrane life;

• The material of pipe is stainless steel food grade or UPVC or PPR.

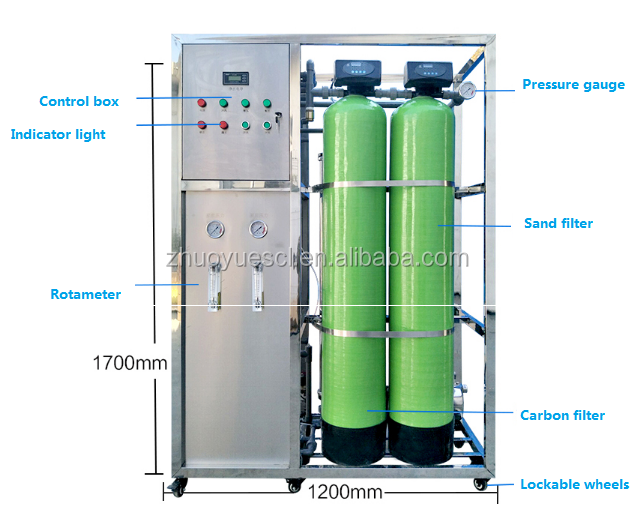

• Multi-media filter: Remove the sediment, rust, suspended solids and other particulate impurities, iron and manganese ions; can be automatically washed;

• Activated carbon filter: To remove residual chlorine and other organic matter ions and pigments and odor; can be automatically washed;

• Precision filter: Remove more than 5um particles of impurities;

• The reverse osmosis system: imported reverse osmosis membrane, high pressure pump, high and low pressure protection, concentrated water flow meter, pure water flow meter, water solenoid valve, flushing solenoid valve, SUS304 stainless steel rack;

Company Information

Packaging & Shipping

Why choose us :

1. Professional manufacturer : More than 10 years experience in prodcuing pure water treatment system .

2.Strict time control : Ensure delivery time.

3. Factory strength: The factory area is more than 2000m3, more than 100 workers.

4. After-sales service : 24 Hours online for service.

5. Customized is available. Sample order is available.

Sichuan Zhuoyue Water Treatment Equipment Co.,ltd is a integrated water treatment manufacturer with scientific research, design, production, sales, installation,after-sales services in Chengdu City, Sichuan Province, China, specializing in the production of laboratory ultra-pure water machine, medical water machine, pure /ultra-pure water equipment,water softener and other related water treatment equipment. Our 1500㎡modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300㎡Sales Department office is located in Jinfu International Building, Jinniu District. Nowadays, the number of company staff is up to 100 and more. And also a complete after-sales service network is set up all over the country.
