5 us/cm Low Conductivity Pure Water Pharmaceutical Machine

Hot Plant 3

Hospital cleaning water EDI ultrapure water Industrial RO plant Commercial drinking water

Product Description

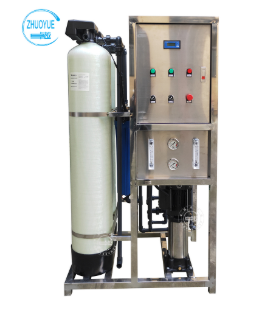

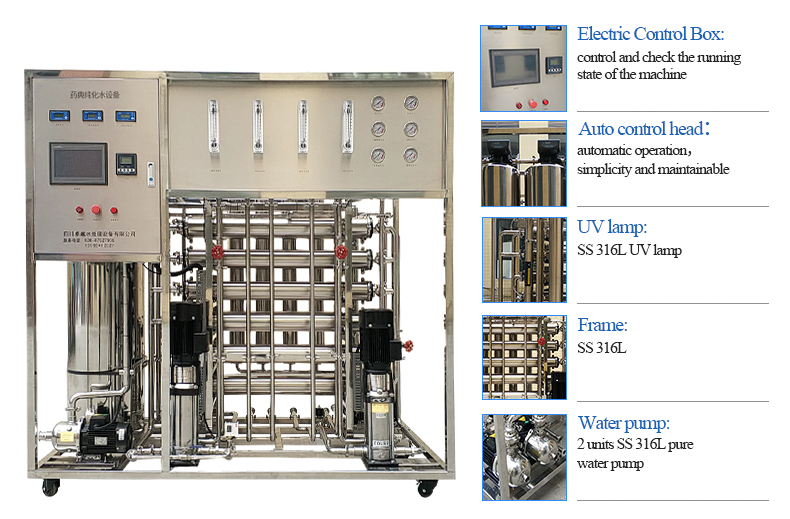

ZYGMP-250lph RO Pure Water Pharmaceutical Machine

The core technology of ZYGMP-250lph RO pure water pharmaceutical machine adopts single-stage or double-stage reverse osmosis, EDI and other latest processes to design targeted high-quality pure water treatment processes in a targeted manner to meet the purified or distilled water of pharmaceuticals, hospitals, and laboratory diagnostic reagents. The entire system is made of SUS304L or SUS316L all stainless steel material combination, and before the water point must be equipped with ultraviolet,ozone disinfection device or can also be pasteurized.

The Parameters of Pure Water Pharmaceutical Machine

No.	Model	Water yield (L/H)	Voltage/Power (V/Kw)	Body Size *(LWH mm)*	Water Tank (L/Material)
1	ZYGMP-500	500	380/3.5	20008001600	500/SS304/316L
2	ZYGMP-1000	1000	380/3.5	20008001600	1000/SS304/316L
3	ZYGMP-1500	1500	380/4.0	20008001600	1500/SS304/316L
4	ZYGMP-2000	2000	380/5.0	25008001700	2000/SS304/316L

1. Water production: 250lph RO (or according to customers' requirement)

2. Control: Automatic 7'' PLC touch screen operation

3. RO membrane DN: 0.0001-0.001um

4. Ion removal rate:≥99%;

5. Endotoxin, bacterial removal rate:≥ 99%;

6. Recovery:≥75%;

7. Inlet water condition: tap water

8. Water quality: Meet the requirements of GMP and Ch.P. 2015;

pure water conductivity: ≤ 5.1us / cm (resistivity ≥ 0.2MΩ.cm)

injection water conductivity: ≤ 1.3us / cm

9. Inlet water condition: Tap water

10. Working pressure: 0.2-0.4 Mpa

11. Water temperature: 5-40 ℃

12. Optional configuration: frequency/constant water supply system, PH regulating system, pasteurization system, UV lamp, ozone generator, 7'' PLC touch screen control system, EDI system, mixed bed resin, multi-effect distillation machine.

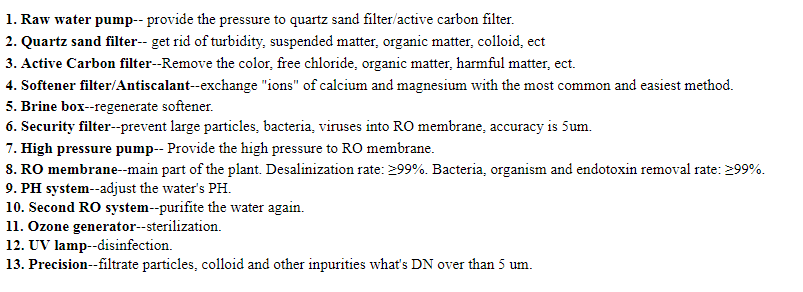

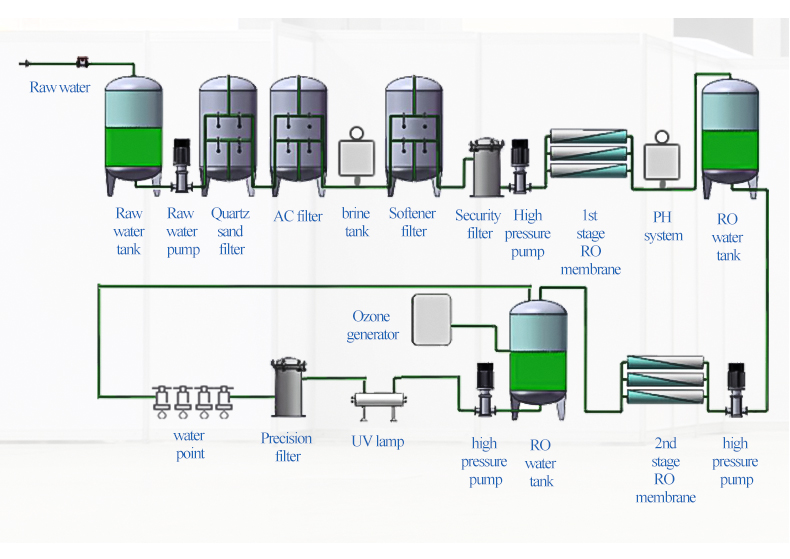

The Working Process of Pure Water Pharmaceutical Machine

Company Information

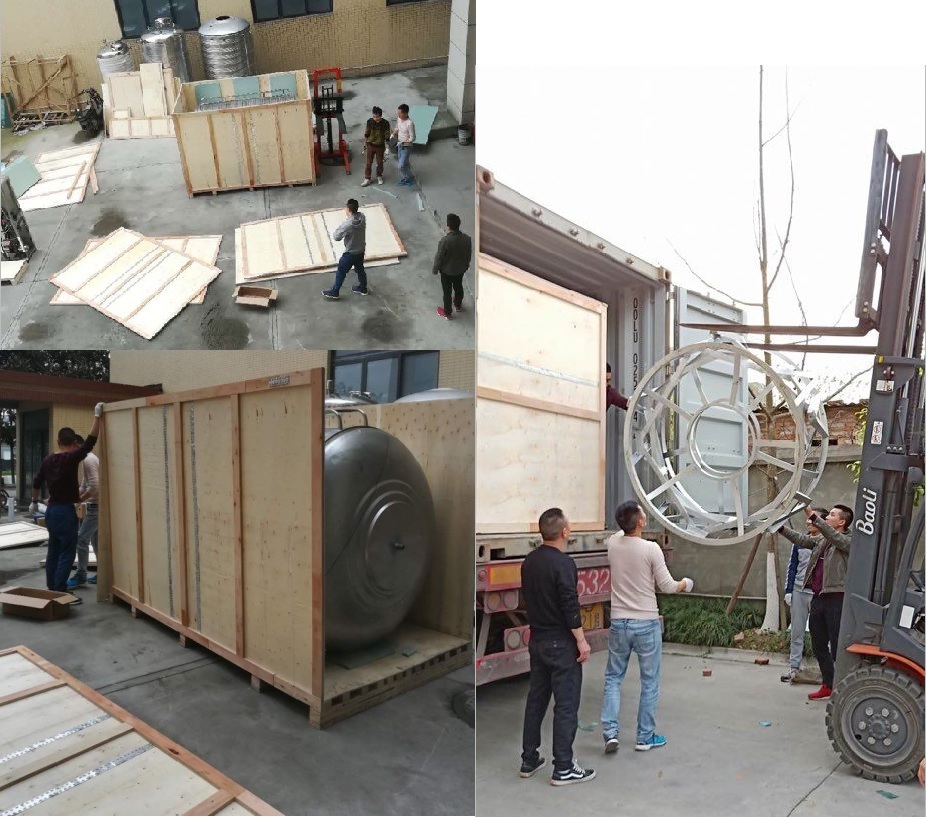

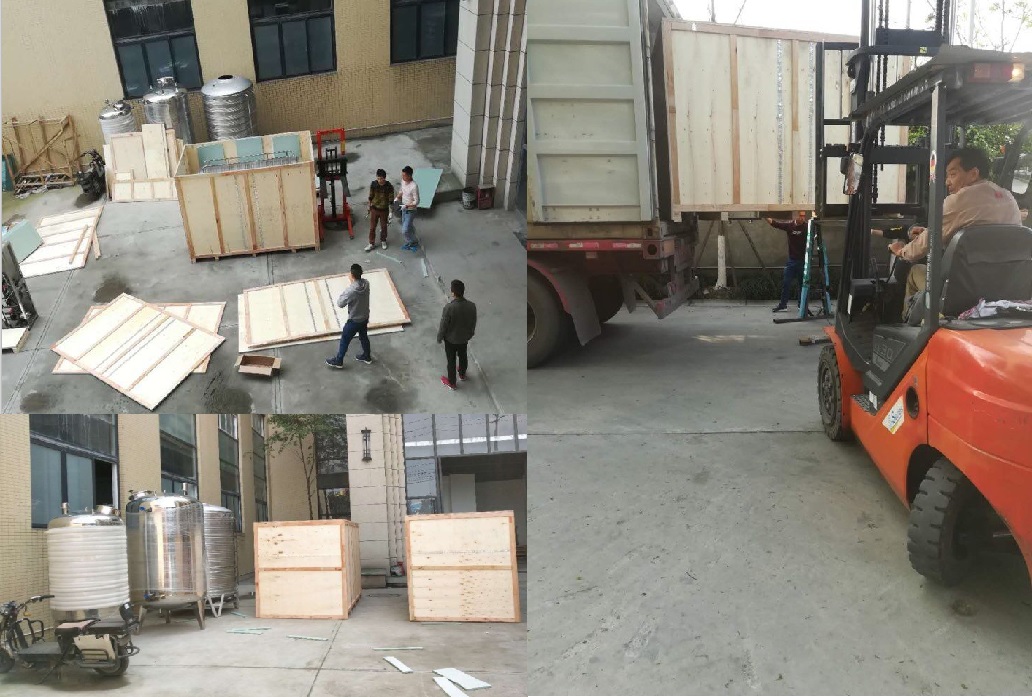

Packaging & Shipping

FAQ

1.Q: Are you a factory?

A: Yes,Our 1500 square meters modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300 square meters. Sales Department office is located in Jinfu International Building, Jinniu District,Chengdu, China.

2.Q: Do you provided after-sale service?

A:Sure. One year product warranty. 24 on-line serive for any technical consult.

3.Q: What is your advantage?

A:High quality, conpetitive factory price and 24h online services.

4.Q: How can you control the quality and delivery?

A: All machines will be tested before packaging. Wooden package is strong and safty for lond-distance transportation.

Sichuan Zhuoyue Water Treatment Equipment Co.,ltd is a integrated water treatment manufacturer with scientific research, design, production, sales, installation,after-sales services in Chengdu City, Sichuan Province, China, specializing in the production of laboratory ultra-pure water machine, medical water machine, pure /ultra-pure water equipment,water softener and other related water treatment equipment. Our 1500㎡modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300㎡Sales Department office is located in Jinfu International Building, Jinniu District. Nowadays, the number of company staff is up to 100 and more. And also a complete after-sales service network is set up all over the country.
