cheap 5-line deionized water machine resin filter cartridge,Sichuan Zhuoyue Water Treatment Equipment Co.,Ltd._specification/price/image

Product Detail
Company Profile

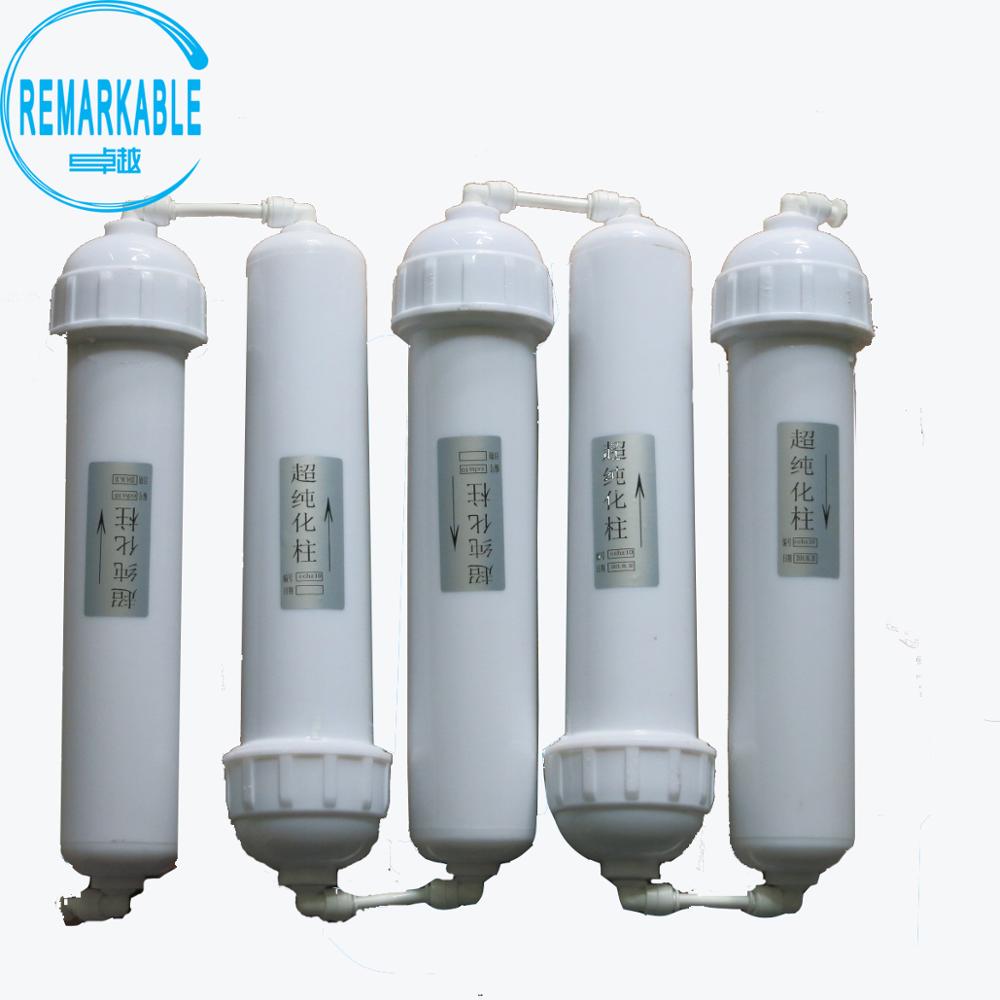

zhuoyue injectionultra-pure resin filter cartridge column filled with Dow 450 or Rohm and Haas 6150 ultra-pure water-based resin, Dow and Rohm and Haas ultra-pure water grade homogeneous resin, is specifically for the semiconductor, high-performance display and microelectronics Ultra-pure water quality has strict requirements of the industry and design and production of ion exchange column, UPW ultra-pure water grade is a kind of non-separable uniform mixed bed resin.

Features:

1, ultra-pure water, the lowest ion and metal residue characteristics;
2, the lowest TOC dissolution;
3, ultra-pure water mixed bed resin only 4 times the volume of the bed will be able to wash the water to reach;
4, no crack rate of resin particles> 95%;
5, a high degree of wear resistance, to prevent the use of broken process;
6, excellent mechanical strength.
The use of food grade disposable engineering plastics, hot melt molding, with ultra-strong pressure, sealing performance and stability, to prevent secondary pollution of ultra-pure water.

Detail images

Specifications Size:

Diameter 7CM * Length 33CM
Diameter 7CM * Length 42CM
Diameter 7CM * Length 50CM
Diameter 7CM * length 65CM
Diameter 7CM * length 70CM
can be customized according to customer size

Resin filter cartridge ultra-purified column water quality:
Resistivity: 18.25MΩ.cm
Heavy metal ions: <0.1ppb Microparticles: ≤ 1 / ml
Microorganism: <1CFU / ml Total Organic Carbon (TOC): <5 ppb
soluble silicon (in sio2 dollars) <0.01mg / L
US Dow UPW-450 ultra-pure water for polishing resin or Rohm and Haas 6150.
exchange capacity tons of water = resin capacity (the premise of water 10μs / cm below)

Sichuan Zhuoyue Water Treatment Equipment Co.,ltd is a integrated water treatment manufacturer with scientific research, design, production, sales, installation,after-sales services in Chengdu City, Sichuan Province, China, specializing in the production of laboratory ultra-pure water machine, medical water machine, pure /ultra-pure water equipment,water softener and other related water treatment equipment. Our 1500㎡modern factory is located in Rongzhi Innovation Industrial Park at Pixian modern industrial road, While 300㎡Sales Department office is located in Jinfu International Building, Jinniu District. Nowadays, the number of company staff is up to 100 and more. And also a complete after-sales service network is set up all over the country.
