- LFGI-3USP: 54″ wide (39″ wide at base) – 32″ deep – 80″ high
- LFGI-4USP: 66″ wide (50″ wide at base) – 32″ deep – 80″ high
- LFGI-6USP: 90″ wide (74″ wide at base) – 32″ deep – 80″ high
- LFGI-3USP: 34 1/2″ wide – 24 1/2″ deep – 29″ high
- LFGI-4USP: 46 1/2″ wide – 24 1/2″ deep – 29″ high
- LFGI-6USP: 70 1/2″ wide – 24 1/2″ deep – 29″ high
- Portable high containment filtration system*
- Double HEPA exhaust, two ASZM-TEDA charcoal filters suitable for operation with both chemical and biological threats.*
- 914mm work area*
- TEDA carbon filter and housing* (incl. case)
- Hose-barb stopcock connections for gas, water and/or vacuum line connection (each)*
- Pre-filter*
- Sealed and potted RJ-45 data port connection for setup of
equipment on interior* - Sealed and potted RS-232, fire wire or USB data port connection for setup of equipment
- Electrical
- Alternate voltage - 230v*
- Alternate frequency - 50Hz*
- Configurations
GLOVEBOX
Standard
Carrying case
Butyl gloves
Portable Glove Box (PGB)

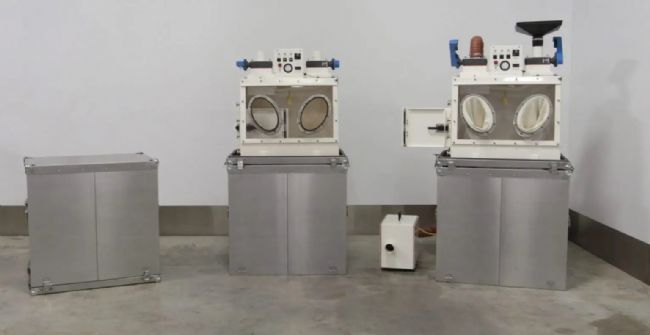

PGB – The First Field-Deployable Class III BSC
Germfree’s PGB is the first field-deployable containment device that meets all of the requirements for a Class III Biological Safety Cabinet (BSC), as well as the standards for a glovebox by the American Glovebox Society (AGS). Weighing in at 170 lbs with the standard HEPA filtration system, this Class III BSC is lightweight, portable, and fit for a range of field applications. The PGB is easily disassembled and can be transported as two compact pieces.
Germfree’s PGB is the first field-deployable containment device that meets all of the requirements for a Class III Biological Safety Cabinet (BSC), as well as the standards for a glovebox by the American Glovebox Society (AGS). Weighing in at 170 lbs with the standard HEPA filtration system, this Class III BSC is lightweight, portable, and fit for a range of field applications. The PGB is easily disassembled and can be transported as two compact pieces.
Dimensions
Overall Dimensions:
Specifications
Work Area Dimensions:
Robust construction
All welded 0.125” (3.2 mm) and 0.090” (2.3 mm) thick aluminum. PGB is powder coated with chemically resistant coating (white standard, other colors available. Unit features coved corners with large radius bends for cleanability.
Ergonomic viewing window
0.375” (9.5 mm) thick clear polycarbonate. Polysilicate coating for abrasion and chemical resistance. Window is sealed to the glovebox with an airtight closed cell silicone gasket. Sloped at an angle for operator comfort.
Stainless steel gloveports
Two Stainless steel 7” x 11” (180 mm x 280 mm) oval gloveports. Double groove gloveports allow glove changes without breaking containment. Sealed into the window at an ergonomic “V” angle. Fitted with one set of 32” (815 mm) long Butyl gloves.
Single inlet and double exhaust HEPA filters
Rated at 99.995% efficient at a 0.3 μm particle size. Features 3” (76 mm) diameter inlet and exhaust ducts. Sanitary shut off butterfly valves. Optional pre-filter.
Static, double-door airlock
Doors are interlocked, preventing both doors from being opened at the same time.
Control panel
Mechanical or digital pressure gauge. Low pressure alarm. GFCI
Electrical
Req. 120v, 15 Amp, 60Hz power
Opt. 230v, 15 Amp, 50Hz power
Exterior mounted LED
Application
Class III BSC’s are increasingly specified as laboratories confront a range of new and increasingly hazardous challenges. These may include new applications, new agents and enhanced safety protocols.
The PGB BSC was designed specifically to solve the primary obstacles faced in achieving Class III containment BSCs in remote areas with space constraints and cost limitations. Our engineers designed this portable Class III BSC to work within the constraints of your application without compromising on features, functionality and user comfort. The PGB delivers unmatched flexibility.
Unknown/higher risk materials
Surge capacity/planning
Intermittent use
Emergency preparedness
Options
END PANEL (Sealed)
- Standard
- Locking door*
- Removable*
- Utility plate*
Asterisk (*) denotes optional
-
Germfree Laboratories Inc. creates environments that serve life science innovation and advance global health. The company, founded in 1962, designs, engineers and manufactures flexible cGMP-compliant cleanroom facilities and mobile units, as well as high containment laboratories, which are process-ready, upon deployment. www.germfree.com
