- Product Information:

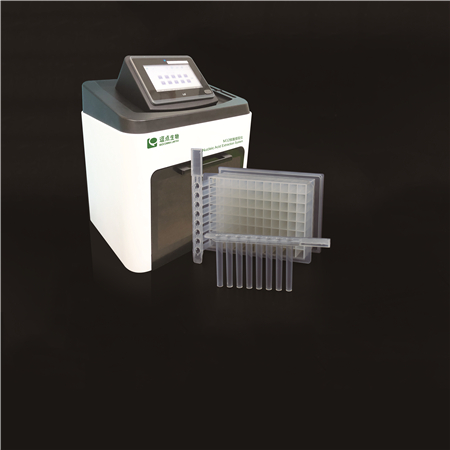

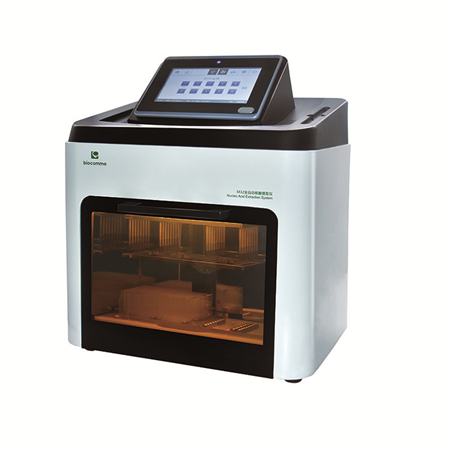

Based on magnetic bead adsorption and separation automated extraction method, M32 Nucleic Acid Extraction Systems could overcome the disadvantages of traditional nucleic acid extraction methods, and achieve rapid, efficient preparation of 1-32 samples at a time. Withcorresponding nucleic acid extraction reagents, it can process various sample types such as serum, plasma, whole blood, swabs, stools, tissues, paraffin sections, bacteria, fungi, etc., and used for disease prevention and control, animal quarantine, clinical diagnosis, entry-exit inspection Quarantine,
Food and Drug Administration, Forensic Medicine, Teaching and Scientific Research.
Features:
1.High-efficiency: The optimization of magnetic rod and amplitude adjustment technology can easily deal with all kinds of tiny magnetic beads, and easily achieve the extraction of nucleic acids without wall- hanging residues.
2.Safety: The use of disposable extraction sleeves and ultraviolet sterilization lamps to avoid aerosol pollution from different batches and reduce operational risks.
3.Intelligent: The unique cockpit control panel UI design can display the operating parameters at one time, which is easy to understand and operate.
4.Standardization: Multiple running programs can be edited as required, and a large memory core is provided to ensure uniform experimental conditions.
5.Automated, high-throughput: Automated nucleic acid extraction experiments, 32 samples can be processed at one time, and the processing speed of nucleic acids is 4-5 times that of a single manual extraction.
6.Professional auxiliary reagent: With strong technical support, making user experiments easier
7.High reagent compatibility: In addition to biocommareagents, it can respond to various types of magneticbead method nucleic acid extraction kits on themarket.
8.Simple and convenient maintenance, convenient and fast
Instrument parameters：
| Product Name | M32 Nucleic Acid Extraction Systems |
| Model | M32 |
| Sample throughput | 1-32 |
| Volume | 50~1000 μL |
| Consumable | 96-well deep plate + magnetic rod cover |
| Recovery | ≥99% |
| Purification hole difference(CV) | <5% |
| Operation humidity | 10%~90% |
| Operation temperature | 10℃~40℃ |
| Heating temperature | Lysis heating temperature: RT+5℃~125℃ Elution heating temperature: RT +5℃~125℃ |
| Vibration | Level 1-3 adjustable |
| Disinfection and decontamination | UV light |
| Reagent type | Magnetic bead nucleic acid extraction reagent |
| Interface | Embedded integrated touch screen operation |
| Program management | New, edit and delete, free and flexible editing and extraction programs |
| Connector | USB |
| Dimensions | 400mm×420mm×440mm |
| Power | AC 110-220VAC, 3.15A, 50/60Hz |
| Net weight | 25 Kg |
-
Biocomma is a leading manufacturer of sample preparation solutions in China.
Founded in 2006, the initial business was porous plastic filters, followed by filter accessories and injection molding accessories.
In 2014, Biocomma entered the field of laboratory sample preparation and expanded 3 production lines of food analysis, oligo synthesis, and nucleic acid purification.
In 2018, Biocomma entered the field of medical device (clinical sample prep) and expanded production lines for Transport and preservation medium, sampling swabs and collection cards, and nucleic acid purification.
Now Biocomma has 3 business departments, more than 1,000 employees, and serves more than 4,000 customers worldwide.
