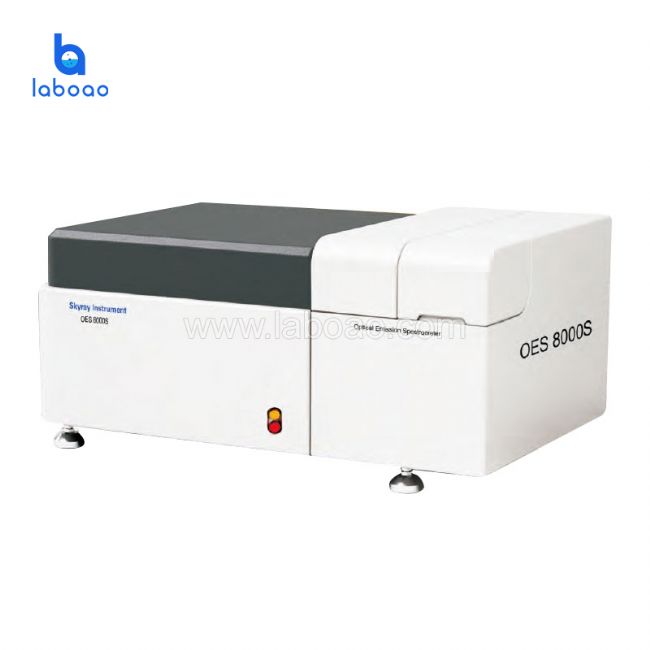

LABOAO OES 8000S Optical Emission Spectrometer
LABOAO OES 8000S Optical Emission Spectrometer
Place of Origin:
China
Brand:
LABOAO
Model:
OES 8000S
Supplier:
Zhengzhou Laboao Instrument Equipment Co., Ltd
Price:
USD21000-USD23000
Hits:
1035
Updated:
4/30/2025
Related Products | Other Products | Related Suppliers
  • Product Detail
  • Company Profile
    OES 8000S Optical Emission Spectrometer
    Description: Based on the Multi-CCD detector and total spectrum technology, Optical Emission Spectrometer OES 8000S detect all the spectral lines within the range of wavelength; so it is extremely easy to install and add the matrix, channels and analytical program. With a compact size, it is easy to maintain and locate in the laboratory. OES 8000S is a good choice of the complex analysis for ferrous and nonferrous metals in one instrument.
    Performance advantages
    1. Thanks to the Multi-CCD detector and total spectrum technology, it is easier to install and add the matrix, channels and analytical program in Sky-ray or customers' laboratory.
    2. Require smaller space for laboratory because of the compact size.
    3. Work for 24/7 to serve your business with high stability and reliability.
    4. Fast way to analyze and demonstrate the results within 30 seconds.
    5. The operation and maintenance are simple and convenient for operators.
    6. All of the typical analytical programs are calibrated in Sky-ray, which are more accurate and test more types of metal grades.
    7. Easy to calibrate the instrument with the standardization samples.
    8. Without chemical reagents, the analysis process is safe and ecofriendly.
    Application fields
    The element analysis for metal materials is a traditional work for the research and development, quality control, process control and other related works in the field of the metal smelting, casting and processing industry.
    Sky-ray Optical Emission Spectrometer is widely used in the element analysis of ferrous and non-ferrous metal. The instrument can simultaneously analyze dozens of elements with a fast, accurate and stable performance, meeting the requirements in industrial development, process control, incoming inspection, product sorting, etc.
    Sky-ray Optical Emission Spectrometer provides a convenient, eco-friendly and low-cost solution for metal analysis, making the R&D, production process and product quality more controllable, helping users upgrade the level of technology and quality; while accelerating the relevant procedures and creating economic and environmental benefits for users. Optical Emission Spectrometer has been a typical device to evaluate the level of technology and product quality for a factory.
    Requirements
    Ambient temperature: 15-30℃.
    Atmospheric humidity: ≤70%.
    Power: Voltage 220V ± 5V 50Hz; single phase with protective ground.
    No vibration, dust, strong electromagnetic interference, strong airflow or corrosive gases in the laboratory.
    Auxiliary equipments
    Argon-The purity is above 99.999%.
    AC parameter voltage stablilizer-5KVA.
    Grinding machine-For the samples like Steel Nickel alloy, etc.
    Small lathe-For the samples like Aluminum, Copper, Zinc, Magnesium, etc.
    Air conditioner-Select suitable power according to the area of laboratory.
    Technical Specifications
    1. Spectrometer design
    Paschen-Runge polychromator, 400mm focal length.
    Effective wavelength range: 135-680 nm.
    Resolution: 10pm/pixel.
    Temperature controlled at 35 ± 0.1℃, vacuum type or air type.
    1. Spark Source
    High energy plasma generator
    High energy pre-spark (HEPS)
    Frequency: 100-1000Hz
    1. Grating
    Holographic concave grating: 2400 /mm
    Dispersion of the first order spectrum: 1.04nm/mm
    1. Detector
    High-performance linear array CCD
    1. Analysis Time
    Depend on the type of materials, typically less than 30 seconds
    1. Spark Source
    High energy plasma generator
    High energy pre-spark (HEPS)
    Frequency: 100-1000Hz
    1. Dimension and Weight
    Height 435mm Width 900mm Depth 600mm
    Weight: 120kg
    Electrical Power
    Маx:1.5kVA
    Standby mode:70VA
    Technical advantages
    1. Comprehensive analysis for the elements in most metals with the full spectrum detection
    Based on the CCD detector with the full spectrum detection technology, the instrument can comprehensively detect the spectral lines of the most of the elements in the metal samples, and carry out analysis for multi-matrix and multi-elements easily. Therefore, it is convenient and inexpensive to install and add the matrix, channels and analytical program in Sky-ray or customers' laboratory
    1. Professional test solution
    With long experience in analysis technology service, Sky-ray Instrument provides users with the sound solutions for the analysis of ferrous and non-ferrous metal.
    The analysis programs in our solution are designed according to the classification of metal grade, meeting the various test demands of users perfectly.
    The analysis programs are factory-calibrated with international or national standard samples, and have been fitted and corrected by professional software.
    Just using a few pieces of the standardization samples supplied by Sky-ray, the user can carry out the routine calibration easily. So it is unnecessary to purchase a large number of standard samples for the analysis program.
    1. Top international suppliers provide the core components
    Dispersive device-The grating manufactured by CARI ZEISS in Germany ensure the excellent resolution.
    Detector-CCD manufactured by Hamamatsu in Japan ensure the detection of spectrum sensitive and low noise.
    Optical lens is manufactured by CARI ZEISS in Germany; Optical fiber is manufactured by Agilent Technologies in America.
    1. Excellent thermostat system for the polychromator
    Excellent vacuum system for polychromator.
    The vacuum chamber for the polychromator is well designed and processed precisely, and the airtight performance is excellent, which provides a high quality vacuum environment for the optical system.
    Therefore, the vacuum pump works for a very short time and low frequency, so it can keep the polychromator cleaner and the consumption of power is very little.
    Test examples
    1. Sampling
    There are two kinds of sampling for spectrochemical analysis: the melt sampling and the product sampling. In the melt sampling, the metal liquid is injected into the mold and solidify into a solid sample. In the product sampling, the size and shape of the sample should be considered to judge whether cutting it or not.
    Reference standards:
    ISO 14284 Steel and iron-Sampling and preparation of samples for the determination of chemical composition.
    ASTM E 1806 Standard Practice for Sampling Steel and Iron for Determination of Chemical Composition.
    ASTM E 716 Standard Practices for Sampling and Sample Preparation of Aluminum and Aluminum Alloys for Determination of Chemical Composition by Spectrochemical Analysis.
    1. Preparation
    For the high hardness metal samples (such as steel, Nickel, Cobalt alloy), grind the surface with the grinding machine; for the low hardness metal samples ( such as Aluminum, Copper, Zinc, Magnesium alloys), turn the surface with the lathe. The treated surface should be flat and smooth with scratches in the same direction.
    Analysis
    Place the sample on the spark stand and start the analysis process by operating the software. After completing the test, all the results of the customized elements are displayed simultaneously. The time of a single procedure is less than 40 seconds, and analyzing the same sample for the three times is generally recommended.
    1. Save the result
    The results of the analysis could be stored in the database of the software or printed directly.

    Typical results
    1. Low alloy steel GBW1398
    Elements C Si Mn P S Cr Ni Mo Cu
    Reference Value 0.499 2.140 0.798 0.029 0.021 0.974 1.970 0.830 0.303
    Results 0.491 2.168 0.818 0.027 0.019 0.953 1.939 0.820 0.291
    Elements V Ti AI Nb W B Co Zr
    Reference Value 0.469 0.082 0.027 0.124 1.530 0.0047 0.238 0.051
    Results 0.475 0.083 0.025 0.127 1.501 0.004 0.230 0.055
    1. Stainless steel YSB S 11378a-2008
    Elements C Si Mn P S Cr Ni Mo Cu
    Reference Value 0.066 0.760 1.160 0.030 0.0091 17.490 8.230 0.205 0.355
    Results 0.066 0.790 1.180 0.027 0.007 17.573 8.173 0.189 0.344
    Elements V Ti AI Nb W Co
    Reference Value 0.061 0.006 0.014 0.011 0.021 0.099
    Results 0.059 0.007 0.018 0.010 0.029 0.094
    1. Al-Si alloy E513e
    Elements Si Fe Cu Mn Mg Ni Zn Ti Pb Sn Sr
    Reference Value 12.64 0.212 2.070 0.540 0.753 0.066 0.216 0.042 0.074 0.021 0.062
    Results 12.715 0.190 2.031 0.528 0.737 0.068 0.211 0.040 0.078 0.020 0.064
    1. Low alloy Aluminum E423b
    Elements Si Fe Cu Mn Mg Cr Ni Zn Ti
    Reference Value 1.280 0.432 0.522 0.234 0.911 0.340 0.030 0.091 0.028
    Results 1.261 0.417 0.513 0.226 0.893 0.321 0.026 0.092 0.026
    1. Copper 31XB21
    Elements Cu Zn Sn Pb Fe Ni AI Si Mn
    Reference Value 69.6793 29.500 0.132 0.120 0.129 0.107 0.121 0.147 0.0647
    Results 69.781 29.403 0.121 0.101 0.124 0.112 0.134 0.135 0.061
    1. Zn-Al alloy 43XZ4
    Elements AI Cu Fe Mg Pb Cd Sn
    Reference Value 4.760 3.210 0.064 0.043 0.0024 0.0025 0.030
    Results 4.723 3.168 0.052 0.043 0.0029 0.0021 0.026
    1. Mg-Al alloy E2612
    Elements AI Zn Mn Si Fe Cu Ni
    Reference Value 7.180 2.990 0.339 0.097 0.013 0.087 0.0045
    Results 7.116 2.942 0.359 0.090 0.017 0.082 0.002
    1. Inconel B.S.600c
    Elements C Mn Si Cr Fe Mo W AI Ti
    Reference Value 0.072 0.500 0.390 15.620 9.300 0.027 0.003 0.200 0.210
    Results 0.058 0.469 0.412 15.559 9.212 0.0246 0.007 0.182 0.242
    Elements Cu Co Nb V Mg
    Reference Value 0.040 0.040 0.014 0.022 0.002
    Results 0.043 0.038 0.012 0.025 0.004
