- ANGEL 5S 5L Oxygen Concentrator
- Product Detail
- Company Profile
- A Touch operate multi-functional units.
- 5Liter with 93%±3% oxygen purity output for COPD users
- Oxygen Purity Display by Numbers ( Accuracy 00.0%)
- Timer
- Large 6' LED Light Display all functional data
- Accumulated total running hours
- The world's NO. 1 Oxygen Output Purity Fluctuation rate controlled within 0.1%.
- Automatic heavy humidity remove molecular sieve
- Independent Oxygen outlet & nebulizer outlet system
- Child Lock settings
- 3 years warranty or 18000hours lifetime
- Durable use for environment areas at high temperature (45ºC), high altitude (4500m).

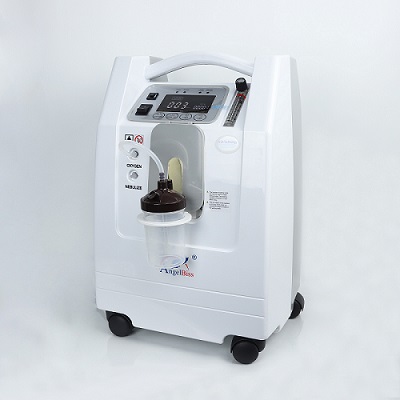

ANGEL 5S 5L Oxygen Concentrator
The new ANGEL-5S version is a SmartTouch multifunctional oxygen concentrator.
It has been specially developed to provide a dependable, convenient source of supplemental oxygen for therapeutic needs. Includes Nebulizer function.
Suitable for both children and adults, ANGEL-5S offers concentration up to 96%.
Features
Special features only provided by AngelBiss Technology
1 Humidified bottle
1 Outlet tube
2 Cannula
1 Nebulizer kit
Body structure graphic
Operation panel
Technical specifications
| System Map | Funtions | Parameters |
| Oxygen Generating System | Oxygen Flow | 0.5~5L/min |
| Oxygen Concentration | 93% ± 3% | |
| Oxygen Output Pressure | 0.04-0.07MPa | |
| Oxygen Number Display | YES | |
| Nebulizer System | Nebulize Mode | YES |
| Individual Nebulizer Outlet | YES | |
| Display Method | On LED screen | |
| Operating Way | By touch panel buttom | |
| Accessories | Nebulize nozzle and mask | |
| Nebulizing Particle Size | 3.6μm ± 25% | |
| Screen Display System | Display Material | All by LED lights |
| What Can Be Displayed? | "Oxygen" light on | |
| "Nebulize" light on | ||
| "Oxygen Percentage" light on | ||
| "Each Runing Time" light on | ||
| "Accumulated Time" light on | ||
| "Timer Setting Number" | ||
| Safety System | Low Oxygen Alarm | Yes |
| Oxygen Pressure Protection Alarm | Yes | |
| Pressure Faulty Alarm | Yes | |
| Power off Alarm | Yes | |
| Compressor Faulty Alarm | Yes | |
| Overheated Protection | Yes | |
| Electrical System | Power Consumption | 300 W |
| Auto Power off by timer | YES | |
| Screen Sleep Mode | YES | |
| Noise Level | <47dB(A) |
-
AngelBiss, the first only one focus on fluctuation of an oxygen concentrator and can control the fluctuation rate within0.1%, mainly engage in development, exportation and manufacturing quality products on the field of Oxygen Therapy, Surgery Therapy, Asthma Therapy and Diagnostic Therapy. With its own unique advantages and powerful engineering capabilities, AngelBiss has provided many high-quality solution to customers all over the world.
AngelBiss all units products with the highest quality standards and best performance. The products are cost effective and environmental friendly, simple to maintain, which have proved their reliability in a myriad of services across the globe.
