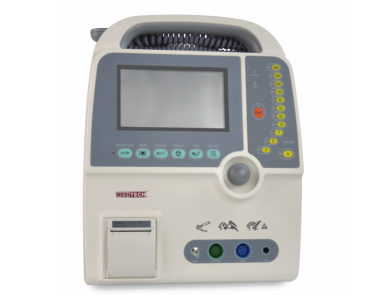

- Meditech Defi Xpress Defibrillator Device with Voice Alarm
- Product Detail
- Company Profile
Screen Type: High-resolution display
Screen Size: 7 inches (17.7 cm) diagonally
Sweep Speed: 25mm/sec
Information: Heart Rate Lead/Pads Alarm On/Off SpO2 AED
Functions and Prompts Alarm Selection and Limits Delivered Energy.
5 Languages available: English.Russian.Spanesh.Chinese.Turkish
Defibrillator
Defibrillator
Waveform: Biphasic
Charge Time: Less than 7 seconds with a new fully charged battery.
Energy Display: Monitor display indicates both selected and delivered energy.
Charge Prompt Type: Voice and visual prompts.
Electrode Impedance Measurement Range: 0-250 ohms.
ECG Monitoring
Patient Connection: 3-lead ECG cable or 5-lead ECG cable paddles.
Lead Selection: Displayed on monitor paddles I II III AVR AVL AVF V.
ECG Size: 0.25 0.5 1 1.5 2 4 cm/mV display on monitor.
Heart Rate: 20-300BPM.
Heart Rate Alarm: On/Off displayed on monitor user-selectable.
Smart Alarms: Beeper/voice prompts indicate shock able rhythm.
Battery
Type: Rechargeable Ni-MH battery 12V.
Operating Time: For a new fully charged battery: 60 defibrillator discharges at maximum energy or 3 hours minimum of continuous ECG monitoring. Additional parameters will effect operating time with different functions
SpO2 Module (Options):
Measurement Range: 30~100% ±2% between 80%~90% others ±5%
Alarm Range: User set high limit and low limit.
Alarm Accuracy: ±10% within setting values.
Alarm time Accuracy: less than 12 sec.
1-Meditech Pulse Oximeter
2-Nellcor Pulse Oximeter
Recorder
Recorder
Paper: 50mm thermal.
Speed: 12.5mm/sec 25mm/sec 50mm/sec. User-selectable 6-second delay.
Printing Method: High-resolution thermal print head.
Print-out Modes: Manual or automatic user-configurable.
On/Off Control: Front panel and paddle.
Automatic Function: 9-seconds recording initiated by alarm activation or defibrillator charge or defibrillator discharge.
AED Mode
AED Function: uto analyze and charge x3 with programmable auto energy level selection screen prompts and voice prompts.
Shockable Rhythms: Ventricular fibrillation with amplitude >=200uV ventricular tachycardia with rates >=140bpm and QRS complex wave duration >=140ms.
Charge Control: Control on device front panel press key on paddle.
Prompts: Voice and visual prompts.
Manual Mode
Energy Selection: Selectable at 2 5 7 10 20 30 50 70 100 150 200 300 360 joules.
Synchronized Mode: Synchronizes defibrillator pulse to patient’s
R-wave. ”SYNC” message displayed on monitor.
-
Meditech was founded in 1998, is a group dedicated to provide state-of-the-art Medical Equipment with top-ranking quality and outstanding reputation. As one of the leading medical equipment manufactures, we are involved in R&D, manufacturing and marketing. And as a global enterprise, our products are selling in more than 70 countries worldwide.
We produce a wide range of medical products used in hospitals and clinics, such as EKG machine, Multiparameter Patient Monitor, Defibrillator, Ultrasound scanner, Pulse Oximeter, Fetal Doppler ,Fetal monitor, Blood Pressure, Visual stethoscope ..
All of our products have been approved by ISO13485 and have passed CE Certificates. We stick to delivering our high quality product and best service to our global base of customers.
As a leading manufacture, Meditech has been professional in producing medical machines. And we are the only supplier in China who offers 2 years' guarrantee. It would make you convinced by the sales amount of our brand Meditech and pleasant customer feedback. The consistent delivery of quality products at excellent-value prices gained us good and well-recognized fame.
We believe that under the globalization trend, the most important thing for running business internationally is to be considerate, modest, creative, steadfast, passionate and industrious.
We welcome sincerely customers from all over the world and it is free for us to be contacted!
