Rotary MicrotomeMKM-2580R/2600R/2680R, manual type sliding microtome with best price,Qingdao Micron Lab Trading Co.,Ltd_specification/price/image

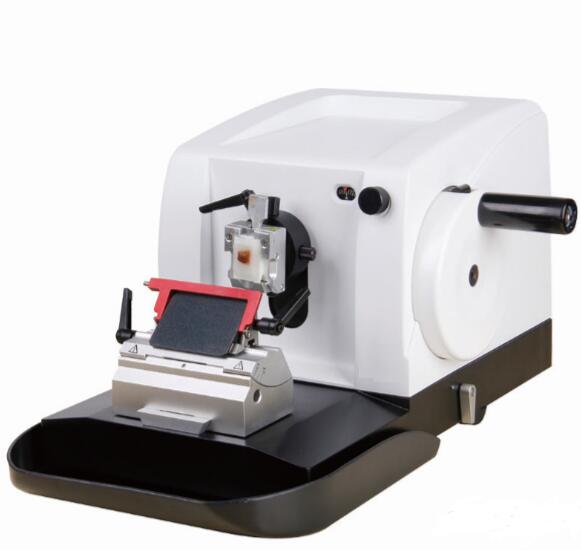

Rotary MicrotomeMKM-2580R/2600R/2680R

Features:

Ideal sectioning for using disposable blade
Large-volume removable waste tray on the top of housing, convenient to use;
Imported cross-roller guide rails and high-precision screw motion mechanism
Advanced high-precision micro-drive feed system enables even and high-precision sectioning;
Small coarse-advance hand-wheel is close to the operator, in accordance with an ergonomic design.
The precise positioning system is not only easy to use, but also provides accurate X- and Y- axis adjustment;
Hand-wheel balance is precisely adjusted and locked at any position, ensuring safety and convenience of sectioning
Fast switching between paraffin block clamp and cassette clamp; Paraffin Block Clamp is for Standard Configuration
The red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade;
Blade holder can be laterally moved without direct contact, enabling use of the entire length of the blade. (three different segments);
Cassette holder can be locked at any position along each of the three axes, enabling easy adjustment of the specimen sectioning angle;

Model	MKM-2580R	MKM-2600R	MKM-2680R
Sectioning Thickness Range	0 - 60μm 0 - 2μm increment 0.5μm 2 - 10μm increment 1μm 10 - 20μm increment 2μm 20 - 60μm increment 5μm	0 - 60μm 0–10μm increment 1μm 10–20μm increment 2μm 20–60μm increment 5μm		0-60μm 0–20μm increment 1μm 20–60μm increment 5μm
Trimming Thickness Range	1-60μm	0-60μm		0-60μm 15μm and 35μm(General Fast Trimming adjustable between both options)
Function	Sectioning, trimming, fast forward, fast backward, quick conversion; automatic retraction (Only for MKM-2680R).
Specimen Retraction	/	/		60μm (on/off)
Mini. Sectioning Thickness	0.5μm	1μm
Max. Specimen Size	60*50mm
Precision	±5％
Specimen Horizontal Feed	25mm	28mm
Specimen Vertical Stroke	52 mm	60mm		70mm
Specimen Orientation	XY – 8°
External Size (WDH)	565440285mm	570440290mm		590500330mm
Package Size (WDH)	620530450mm	620530450mm		690590500mm
Gross Weight	40kg	40kg		54kg
