Huber: Measure and Control Flow Directly at the Temperature Control Unit

* Measurement and control flow with Unistats and Unichillers from Huber

* Display directly on the temperature control unit, request or set values via digital interfaces

* Determination of kinetic, dynamic, heat quantity, scale-up data, etc. possible

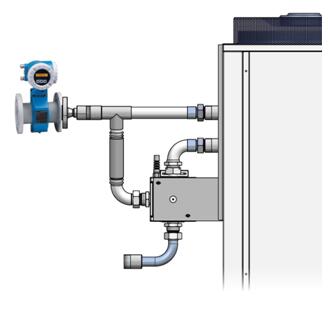

Huber Kältemaschinenbau offers a variety of measuring equipment for installation in the temperature control circuit in order to measure and control the flow rate. The flow rate can be displayed directly on the controller and can be requested and/or set through the digital interfaces (USB, RS232, LAN and optionally RS485, Profibus). It is also possible to control the flow rate using flow on an Unichiller or Unistat equipped with an integrated VPC byрass or external VPC bypass. The flow meters are available in different designs; depending on model and temperature control device. They cover flow rates between 0.2 and 750 liters per minute and working temperatures from -125 to +425 °C.



The flow measurement devices can be used to complete basic tasks, such as determining kinetic/dynamic features of reaction syntheses and crystallisation, inspections of heat quantities and scale-up testing. Unistats can also be assigned. The new E-grade “Explore” allows Unistats (only) to display or request the current system capacity (heating/cooling), as well as of the temperature differences, and is therefore perfectly suited to developing and optimising chemical processes.



Further information is available at www.huber-online.com or by phone +49 (0) 781 9603-123.
