Flow Cytometry Intracellular Staining: A Comprehensive Guide to Stimulants and Protein Transport Inhibitors

1. Introduction: The Significance of Intracellular Staining in Flow Cytometry
In flow cytometry applications, intracellular staining is a powerful technique complementing surface antigen staining. It enables the detection and analysis of a variety of intracellular targets, including common cytokines (IFN, IL-2, IL-4, IL-6, IL-10, TNF), nuclear transcription factors (FOXP3, GATA3, STAT5), and intracellular signaling pathway-related proteins (MAPK family: AKT, P38, JNK, ERK). Compared with surface staining, intracellular staining involves more complex steps and more variable factors, which easily leads to unstable results and poor reproducibility. Among them, the selection and application of appropriate stimulants and protein transport inhibitors are critical links affecting the success of the experiment. This article provides a detailed overview of these two types of key reagents to help researchers optimize experimental protocols and improve the reliability of results.

2. Stimulants: Inducing Intracellular Target Expression
Under resting conditions, T cells, B cells, and other immune cells produce little or no cytokines. Most cytokines are only secreted and produced after cell activation. Therefore, in vitro activation is essential to stimulate the expression of intracellular targets in flow cytometry intracellular staining experiments. The most commonly used activation method is to treat cells with a combination of broad-spectrum stimulants: Phorbol 12-myristate 13-acetate (PMA) and Ionomycin, with a typical stimulation time of 4-6 hours (which can be optimized according to specific cell types and targets).

2.1 Mechanism of PMA and Ionomycin-Mediated Cell Activation
The activation of Protein Kinase C (PKC) in cells can trigger the phosphorylation of many downstream protein kinases, forming a cascade reaction that ultimately induces the expression of various proteins and cell activation. PKC activation requires the combined action of Diacylglycerol (DAG) and Calcium ions (Ca²⁺). PMA acts as a DAG mimetic, which can specifically bind to the DAG-binding domain of PKC. Ionomycin is a Ca²⁺ transporter that can transport Ca²⁺ from organelles to the cytoplasm, increasing the intracellular Ca²⁺ concentration. The synergistic effect of PMA and Ionomycin effectively activates PKC, thereby initiating a series of downstream signaling pathways and promoting the expression of target molecules such as cytokines.

2.2 Key Considerations for Stimulant Selection and Use
1) Optimal Concentration Matching: The concentration of PMA and Ionomycin needs to be optimized according to the type of cells used. Excessively high concentrations may cause excessive cell activation or cell damage, while excessively low concentrations cannot effectively induce target expression.
2) Stimulation Time Optimization: The standard stimulation time is 4-6 hours, but for some slow-responding cell types or specific targets, the stimulation time may need to be appropriately extended. It is recommended to set up a time gradient experiment to determine the optimal stimulation time.
3) Avoiding Contamination: Stimulants such as PMA are highly bioactive, and strict sterile operation should be performed during preparation and use to avoid microbial contamination affecting experimental results.

3. Protein Transport Inhibitors: Enhancing Intracellular Target Detection

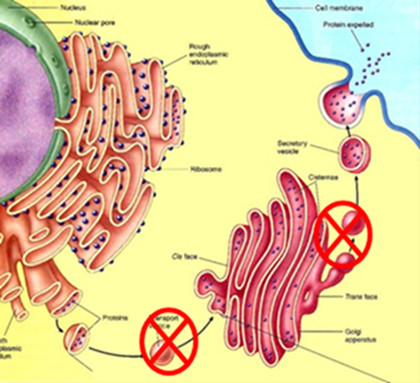

After stimulation, cells will secrete the produced cytokines into the extracellular environment, which will reduce the intracellular target concentration and affect the staining signal intensity and detection rate. Therefore, it is crucial to add protein transport inhibitors during the stimulation process to block the secretion of target molecules and accumulate them in the cells, thereby enhancing the intracellular staining signal and improving the detection sensitivity. The two most commonly used inhibitors in flow cytometry intracellular staining are Monensin and Brefeldin A (BFA).

3.1 Mechanisms of Action of Two Inhibitors
1) Monensin: Monensin is an ionophore that can selectively bind to monovalent cations (such as Li⁺, Na⁺, K⁺, Rb⁺, Ag⁺, Tl⁺) and transport these cations into the cell membrane, disrupting the transmembrane ion gradient. Its mechanism of blocking protein secretion is mainly targeted at the transport process from the Golgi apparatus to the extracellular space, inhibiting the final step of cytokine secretion.
2) Brefeldin A (BFA): BFA is a fungal metabolite that specifically interferes with the vesicular transport process from the rough endoplasmic reticulum (ER) to the Golgi apparatus. By blocking the early stage of protein secretion, it causes the accumulation of cytokines in the endoplasmic reticulum, thereby increasing the intracellular target concentration.

3.2 Differences and Selection Guidelines Between Monensin and BFA
The core difference between the two inhibitors lies in the different stages of blocking the protein secretion pathway, which also leads to differences in their applicability to different target molecules. The selection guidelines are as follows:
1) Target Molecule Characteristics: For cytokines that are rapidly transported through the Golgi apparatus, Monensin (which blocks the late secretion stage) may have a more efficient blocking effect. For proteins that are slowly processed in the endoplasmic reticulum, BFA (which blocks the early secretion stage) can better ensure intracellular accumulation.


2) Cell Type Adaptability: Some cell types may be more sensitive to BFA and may experience cell viability decline at high concentrations. In such cases, Monensin is a more suitable choice. It is recommended to conduct preliminary experiments to verify the cytotoxicity of the two inhibitors on the selected cell types.
3) Experimental Purpose: If the experiment needs to observe the dynamic process of protein transport in the secretory pathway, the two inhibitors can be used in combination or separately according to the blocking stage to achieve precise regulation.

3.3 Reference for Blocking Methods of Common Cytokines
Different cytokines have differences in their secretion pathways and speeds, and corresponding blocking strategies need to be adopted:
1) IFN-γ, TNF-α: These pro-inflammatory cytokines are secreted rapidly. Monensin or BFA can be used alone for blocking, and the blocking effect is good when added simultaneously with stimulants.
2) IL-4, IL-10: These cytokines have a relatively slow secretion process. It is recommended to use BFA for blocking, which can block the secretion pathway earlier and ensure sufficient intracellular accumulation.
3) IL-2: The secretion of IL-2 is highly dependent on cell activation. It is recommended to use a combination of PMA/Ionomycin stimulation and Monensin blocking to achieve the best detection effect.

4. ANT BIO PTE. LTD. (Absin) High-Quality Reagents for Flow Cytometry Intracellular Staining
To support researchers in conducting efficient and reliable flow cytometry intracellular staining experiments, ANT BIO PTE. LTD. (Absin brand) provides a full range of high-quality stimulants and protein transport inhibitors. These products have the characteristics of high purity, stable performance, and reliable quality, which can effectively ensure the reproducibility of experimental results. All products are in stock with short delivery times to meet the urgent experimental needs of researchers. The detailed product information is shown in Table 1:

Table 1 Absin Stimulants and Protein Transport Inhibitors for Intracellular Staining



Catalog Number	Product Name	Type	Specification
abs810021	Phorbol 12-myristate 13-acetate (PMA)	Stimulant (DAG mimetic)	1mg/5mg/10mg
abs810022	Ionomycin calcium salt	Stimulant (Ca²⁺ transporter)	5mg/10mg/25mg
abs810023	Monensin sodium salt	Protein Transport Inhibitor	10mg/50mg/100mg
abs810024	Brefeldin A (BFA)	Protein Transport Inhibitor	5mg/10mg/25mg
