SHP Substrate 1 Recombinant Protein: Molecular Design, Functional Mechanisms and Advanced Research Applications

1. Introduction: The Core Role of SHP Substrate 1 in Immune Regulation and Signal Transduction
SHP Substrate 1 is a key regulatory molecule involved in immune signal transduction, which exerts its biological function by interacting with SHP-1 and SHP-2 phosphatases. As important members of the protein tyrosine phosphatase (PTP) family, SHP-1 and SHP-2 play crucial roles in regulating cell proliferation, differentiation, and immune response. SHP Substrate 1 contains conserved ITIM (Immunoreceptor Tyrosine-based Inhibition Motif, Y241) and ITSM (Immunoreceptor Tyrosine-based Switch Motif, Y263) motifs, which can be phosphorylated and then specifically bind to the SH2 domains of SHP-1/SHP-2, thereby regulating the activity of these phosphatases and further participating in the inhibition of immune receptor signals (such as TCR signals). SHP Substrate 1 recombinant protein, as a powerful tool for studying the interaction between SHP phosphatases and immune regulation mechanisms, has been widely used in basic research, drug development, and diagnostic technology development.

2. Molecular Design and Expression System Selection of SHP Substrate 1 Recombinant Protein
The rational molecular design and appropriate selection of expression systems are the basis for obtaining high-quality SHP Substrate 1 recombinant protein with biological activity. Researchers need to optimize the construction strategy and expression system according to specific research purposes.

2.1 Key Strategies for Molecular Design
1) Truncated Construction of Functional Domains: To retain the binding ability with SHP-1/SHP-2, researchers usually construct truncated recombinant proteins containing the complete intracellular domain (amino acids 183-268). This region includes the critical ITIM (Y241) and ITSM (Y263) motifs, which are the core sites for mediating the interaction with SHP phosphatases. For studies involving palmitoylation modification analysis, constructs containing the transmembrane region (amino acids 160-182) are required to ensure the correct modification of the protein.
2) Selection of Fusion Tags: Different fusion tags are introduced according to experimental needs to facilitate protein purification and functional verification. Common tags include N-terminal GST tags (suitable for affinity purification and pull-down experiments), His6 tags (for immobilized metal affinity chromatography), and FLAG/HA tags (for co-immunoprecipitation experiments). In addition, the introduction of a 15-20 amino acid flexible linker peptide (such as GGGGS repeat sequence) at the N-terminus of the intracellular region can significantly improve protein solubility and the success rate of crystallization, which is of great significance for structural biology research.


2.2 Comparison and Selection of Expression Systems
The choice of expression system directly affects the yield, post-translational modification, and biological activity of SHP Substrate 1 recombinant protein. Three common expression systems have their own characteristics and applicable scenarios:
1) Escherichia coli Expression System: It is the most commonly used expression system due to its advantages of high yield (up to 50-100 mg/L of culture) and low cost. It is particularly suitable for the preparation of unmodified SHP Substrate 1 recombinant protein. To obtain correctly folded proteins, it is usually necessary to optimize induction conditions (such as 0.1 mM IPTG, 16°C overnight induction) and co-express molecular chaperone plasmids (such as pGro7).
2) Baculovirus-Insect Cell System (e.g., Sf9 cells): This system can achieve near-native palmitoylation and glycosylation modifications of proteins, which significantly enhances protein activity. However, its yield is relatively low (5-15 mg/L), so it is suitable for studies that require post-translational modifications of proteins.
3) Mammalian Expression System (e.g., HEK293F cells): It can produce recombinant proteins closest to the native state, with transient expression yielding 10-30 mg/L of secreted protein. The SHP Substrate 1 recombinant protein expressed by this system has the highest binding affinity with SHP-2 (Kd ≈ 0.3 μM), which is 2-3 times higher than that of proteins expressed by other systems. It is particularly suitable for structural biology studies and high-sensitivity functional experiments.

3. Purification Process and Quality Control of SHP Substrate 1 Recombinant Protein
The purification process of SHP Substrate 1 recombinant protein is meticulously optimized to ensure high purity and stable biological activity. Different purification strategies are adopted according to the type of fusion tag and protein modification status.

3.1 Purification Strategies for Different Tagged Proteins
1) GST-Tagged Proteins: Affinity purification is first performed using glutathione agarose beads, then the GST tag is cleaved with PreScission protease, and finally gel filtration chromatography (Superdex 75) is used to obtain monomeric components with high purity.
2) His6-Tagged Proteins: Purification is carried out using Ni-NTA resin. After elution with imidazole, buffer exchange is required to remove reducing agents (to avoid reduction of metal ions) and obtain proteins with stable activity.
3) Glycosylated Proteins: For glycosylated SHP Substrate 1 recombinant protein, lectin (such as Con A) affinity columns are used to enrich specific glycoforms, and then further purified by gel filtration chromatography to ensure the uniformity of protein glycosylation modification.

3.2 Key Points of Quality Control
1) Purity and Endotoxin Control: The optimized purification process can obtain SHP Substrate 1 recombinant protein with a purity of >95%. The endotoxin level is controlled below 0.1 EU/μg, which fully meets the requirements of cell experiments.
2) Monodispersity Detection: Dynamic light scattering analysis confirms that the purified recombinant protein exists in a monodispersed form in physiological buffer (polydispersity index <0.2), with a hydrodynamic radius of approximately 3.2 nm, which is consistent with theoretical calculations, ensuring the stability of the protein in experimental systems.
3) Stability Evaluation: Protein solutions containing 10% glycerol can be stored at -80°C for more than 2 years without loss of activity; lyophilized products can remain stable for 6-12 months at 4°C, which greatly facilitates experimental storage and use.

4. Functional Mechanisms of SHP Substrate 1: Regulation of SHP Phosphatase Activity and Immune Signals
SHP Substrate 1 regulates the activity of SHP phosphatases through phosphorylation-dependent mechanisms, thereby participating in the regulation of immune signal transduction. Its functional mechanisms have been deeply elucidated through in vitro experiments and structural biology studies.

4.1 Activation Mechanism of SHP Phosphatase

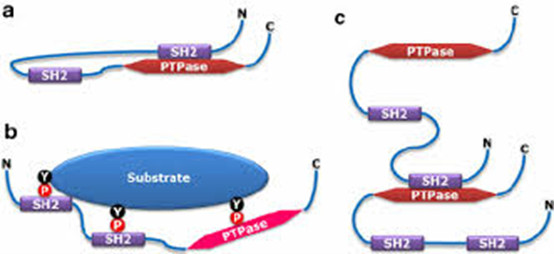

Phosphorylated SHP Substrate 1 recombinant protein can dose-dependently activate SHP-2 phosphatase activity. Under optimal conditions (pH 7.0, 25°C), it can increase the catalytic efficiency (kcat/Km) of SHP-2 by 50-100 fold. This activation is achieved through two mechanisms: first, it promotes the release of the autoinhibited conformation of SHP-2 (the N-SH2 domain moves away from the catalytic site), and second, it enhances the binding ability of SHP-2 to substrates (the Kd value decreases from 8 μM to 0.5 μM). Notably, the doubly phosphorylated form (Y241+Y263) of SHP Substrate 1 exhibits a synergistic activation effect, which is 3-5 times stronger than the singly phosphorylated form, consistent with the signal amplification phenomenon observed in cells.

4.2 Regulation of Immune Receptor Signal Inhibition
In in vitro reconstruction experiments, phosphorylated SHP Substrate 1 recombinant protein can reduce ZAP70 activity by more than 70% through SHP-2-mediated dephosphorylation when incubated with purified TCR signaling components (ZAP70, LAT, SLP76, etc.). SPR kinetic analysis shows that the SHP Substrate 1-SHP-2 complex has high selectivity for the phosphorylated peptide of ZAP70 (Y492), and its affinity is 10-20 times higher than that for other tyrosine sites. In addition, the inhibitory effect of SHP Substrate 1 has a clear concentration threshold effect—only when its local concentration reaches above 10 μM can it effectively recruit SHP-2 to form inhibitory microdomains, which may explain the spatial specificity of signal regulation in immune synapses.

5. Wide Applications of SHP Substrate 1 Recombinant Protein in Scientific Research
SHP Substrate 1 recombinant protein has shown significant application value in multiple research fields such as drug screening, diagnostic development, cell therapy, and basic research, becoming an indispensable tool for related research.

5.1 Application in Drug Screening
Based on the crystal structure of the SHP-2/SHP Substrate 1 complex (PDB 6N6F), structure-based virtual screening can be performed to screen potential binding molecules from a large number of small molecules. High-throughput phosphatase analysis systems combine phosphorylated SHP Substrate 1 recombinant protein with SHP-2 and fluorescent substrates, enabling screening of more than 10,000 compounds per day. AlphaScreen-based binding inhibition assays can evaluate the ability of molecules to interfere with the SHP Substrate 1-SHP-2 interaction, and the optimized assay system has a Z' factor >0.7, which is highly suitable for large-scale screening. These methods have been successfully applied in the development of anti-cancer and autoimmune disease drugs. For example, the compound GS-493 can specifically enhance SHP Substrate 1-mediated PD-1 signaling and has good immune activation effects in melanoma models.

5.2 Application in Diagnostic Development
In diagnostic development, SHP Substrate 1 recombinant protein serves as a standard and capture reagent. Quantitative ELISA uses recombinant protein to generate standard curves, which can accurately measure the level of soluble SHP Substrate 1 in serum (normal range 2-8 ng/mL). Clinical studies have shown that this marker is positively correlated with the disease activity of rheumatoid arthritis (DAS28 score, r=0.62). Phosphorylation-specific flow cytometry uses recombinant protein as a positive control and blocking agent to detect the Y241 phosphorylation status of endogenous SHP Substrate 1 in T cells, which has potential value in immune monitoring. A novel microfluidic immune detection platform immobilizes anti-SHP Substrate 1 antibodies and recombinant protein in chip channels, enabling simultaneous detection of total protein and phosphorylation ratio with only 1 μL of serum, and the coefficient of variation is <5%.

5.3 Application in Cell Therapy and Gene Engineering
In CAR-T cell modification, fusing the intracellular region of SHP Substrate 1 with the CD28 transmembrane domain can significantly improve cell persistence (the survival time in mouse models is increased by three times), which is related to the inhibition of exhaustion-related genes such as TOX. Using recombinant protein-coated plates (2 μg/cm²) to induce directed differentiation of stem cells can enhance the differentiation efficiency of hematopoietic progenitor cells into regulatory immune cells and increase the yield of CD4+CD25+FoxP3+ Treg cells by 40%. In gene editing verification, recombinant protein serves as a positive control to evaluate the editing efficiency of CRISPR-Cas9, and the change in endogenous protein expression level can be accurately calculated by comparing the signal intensity between edited cells and recombinant protein.

6. ANT BIO PTE. LTD. (Starter) High-Quality SHP Substrate 1 Recombinant Protein and Related Products
To support researchers in conducting efficient and reliable SHP Substrate 1-related research, ANT BIO PTE. LTD. (Starter brand) provides a full range of high-quality SHP Substrate 1 recombinant proteins and related detection reagents. Our recombinant proteins are optimized for molecular design and expression systems, with high purity, stable activity, and good batch-to-batch consistency. The phosphorylation efficiency difference between batches is controlled within 15%, and the biological activity difference is <20%, which fully meets the reproducibility requirements of research. The detailed product information is shown in Table 1:

Table 1 Starter SHP Substrate 1 Recombinant Protein and Related Products


Catalog Number	Product Name	Product Description
S0B1093	Phospho-SHP-2 (Tyr542) Recombinant Rabbit mAb	Host: Rabbit; Conjugation: Unconjugated; Suitable for detecting phosphorylated SHP-2 (Tyr542) in SHP Substrate 1-SHP-2 interaction experiments
S0G0015	Phospho-SHP-2 (Tyr542) Antibody Duo	Including two specific antibodies for Phospho-SHP-2 (Tyr542); Suitable for verification experiments of SHP-2 activation mediated by SHP Substrate 1
