Multiple Molecular Cloning Technologies: Core Tools Driving Gene Engineering Research

1. Concepts
Molecular cloning, a cornerstone technology in gene engineering, refers to the process of inserting a target DNA fragment into a suitable vector, followed by transforming the recombinant vector into host cells for amplification, screening, and purification to obtain large quantities of recombinant genes. This technology enables researchers to manipulate and study specific genes, laying the foundation for in-depth explorations in fields such as gene function research, biopharmaceutical development, and genetic disease treatment. Depending on the technical principles and operational procedures, common molecular cloning technologies mainly include restriction enzyme digestion-ligation cloning, TA cloning, seamless cloning, TOPO cloning, and Gateway cloning. Each technology has unique characteristics and applicable scenarios, providing diverse solutions for different experimental needs.

1.1 Restriction Enzyme Digestion-Ligation Cloning
As a classic molecular cloning method, restriction enzyme digestion-ligation cloning utilizes restriction endonucleases to cleave DNA and DNA ligases to join DNA fragments, followed by transformation, screening, and purification to complete the large-scale preparation of recombinant genes. Successful enzyme digestion and effective ligation are essential prerequisites for the successful completion of this cloning experiment.

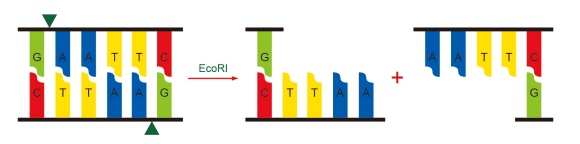

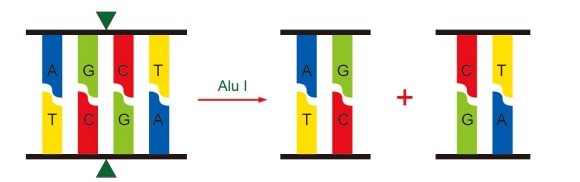

Restriction endonucleases can specifically bind to specific recognition sequences within or near the DNA sequence and cleave double-stranded DNA. Based on their recognition and cleavage characteristics, catalytic conditions, and the presence of modification enzyme activity, they are classified into Type I, Type II, and Type III. Type II enzymes are the most commonly used in molecular cloning technology, producing linear DNA with sticky ends or blunt ends after cleavage. Sticky ends are complementary nucleotide sequences formed by staggered cleavage of double-stranded DNA by restriction endonucleases, which can form hydrogen bonds. Blunt ends are DNA fragments formed by cleavage of DNA molecules at the same position on both strands of DNA by restriction endonucleases.

DNA ligases catalyze the formation of 3',5'-phosphodiester bonds between the 5'-P end and 3'-OH of adjacent bases in double-stranded DNA molecules. The commonly used DNA ligase is T4 DNA ligase, which can catalyze the formation of phosphodiester bonds between adjacent 5´-phosphate ends and 3´-hydroxyl ends on double-stranded DNA or RNA in the presence of Mg2+ and ATP. This enzyme can not only catalyze the ligation between blunt or sticky ends of double-stranded DNA but also repair single-strand nicks in double-stranded DNA, RNA, or DNA/RNA hybrids, but cannot catalyze the ligation between single-stranded DNA molecules.

1.2 TA Cloning
TA cloning refers to a method of ligating PCR fragments with a vector DNA having a 3'-T overhang. It is particularly suitable for cases where the DNA sequence of the target gene is unknown. The obtained target fragments usually need to be recombined into T-vectors via TA cloning for DNA sequence determination through sequencing. This technology leverages the characteristic that Taq DNA polymerase often adds an additional adenine (A) to the 3' end of PCR products, enabling specific ligation with T-vectors carrying a 3'-T overhang.

1.3 Seamless Cloning
Seamless cloning is an innovative, rapid, and concise cloning method that allows the insertion of one or more target DNA fragments at any site of a plasmid without the need for any restriction endonucleases or ligases. Only a one-step recombination process is required to obtain recombinant vectors with high cloning efficiency, greatly improving work efficiency. The core principle of this technology relies on the recombination of 15~25nt homologous sequences at the ends of DNA fragments and linearized vectors, realizing directional cloning of target fragments.

1.4 TOPO Cloning
TOPO cloning is actually a cloning technology based on topoisomerase. The key component is topoisomerase. This technology does not require restriction endonucleases or exogenous ligases, thereby providing an extremely simple and rapid method for cloning new PCR products into plasmids. The topoisomerase used in the technology can simultaneously cleave and ligate DNA, simplifying the cloning process into three key steps and significantly shortening the experimental cycle.

1.5 Gateway Cloning
Gateway cloning achieves the insertion of target fragments through site-specific recombination. A specific fragment on the vector is replaced by the target fragment under the action of recombinase. This technology does not rely on restriction endonucleases and ligases, and the introduction of target genes does not require vector linearization. It usually uses two specific vectors provided in the kit, enabling rapid and efficient transfer of DNA sequences to vectors for cloning.

2. Research Frontiers
With the continuous advancement of gene engineering and synthetic biology, molecular cloning technology is evolving towards higher efficiency, simplicity, and versatility. In recent years, the research frontiers of molecular cloning technologies have focused on several aspects: first, the development of high-efficiency and low-background seamless cloning technologies, which can realize the assembly of multiple fragments in one step and meet the needs of large-scale gene synthesis and genome editing; second, the optimization of enzyme products for cloning, such as the development of faster-acting restriction endonucleases and more efficient DNA ligases, which further shorten the experimental time; third, the integration of cloning technologies with other emerging technologies, such as combining with CRISPR-Cas9 gene editing technology to achieve more precise and efficient gene insertion and modification; fourth, the development of automated and high-throughput cloning platforms, adapting to the needs of large-scale gene function screening and high-throughput drug development.

In addition, the research on compatible cloning systems that can be applied to multiple host cells (such as bacteria, yeast, mammalian cells) is also a current hot spot, which helps to accelerate the process of cross-species gene function research and biopharmaceutical development. The continuous innovation of these technologies has expanded the application scope of molecular cloning and promoted the rapid development of life science research.

3. Research Significance
Molecular cloning technology is the core tool of gene engineering and has profound research significance in the field of life sciences. Theoretically, it provides a powerful means for researchers to isolate, amplify, and manipulate specific genes, enabling in-depth exploration of gene structure, function, and regulatory mechanisms, and laying the theoretical foundation for understanding life processes at the molecular level.

Practically, molecular cloning technology is widely applied in various fields such as biopharmaceuticals, agricultural biotechnology, and medical diagnosis. In biopharmaceuticals, it is used for the expression and production of recombinant proteins (such as insulin, antibodies, and cytokines), promoting the development of innovative drugs; in agricultural biotechnology, it helps to cultivate genetically modified crops with high yield, disease resistance, and stress tolerance, improving agricultural production efficiency; in medical diagnosis, it is the basis of gene detection technologies (such as PCR-based diagnosis), enabling early diagnosis of genetic diseases and infectious diseases. The continuous optimization and innovation of molecular cloning technologies further enhance the efficiency and accuracy of these applications, driving the transformation of life science research achievements into practical productivity and clinical applications.

4. Related Mechanisms, Research Methods and Product Applications
4.1 Related Mechanisms
Different molecular cloning technologies rely on distinct core mechanisms. Restriction enzyme digestion-ligation cloning relies on the specific recognition and cleavage of DNA by restriction endonucleases and the formation of phosphodiester bonds between DNA fragments by DNA ligases; TA cloning utilizes the complementary base pairing between the 3'-A overhang of PCR products and the 3'-T overhang of T-vectors; seamless cloning is based on the homologous recombination between DNA fragments and vector ends; TOPO cloning relies on the DNA cleavage and ligation activity of topoisomerase; Gateway cloning achieves target fragment transfer through site-specific recombination mediated by recombinases. These mechanisms ensure the specificity and efficiency of each cloning technology, enabling their respective application scenarios.

4.2 Research Methods
The research methods based on different molecular cloning technologies involve specific operational processes. Taking the classic restriction enzyme digestion-ligation cloning as an example, the main steps include: PCR amplification of the target DNA fragment using template DNA and primers; purification of the PCR product; restriction endonuclease digestion of the PCR product and vector to obtain linearized vectors with sticky or blunt ends; purification of the digested products; ligation of the digested PCR product and vector using T4 DNA ligase; transformation of the ligation product into competent cells; screening and identification of positive clones. For TA cloning, the key steps include PCR amplification of the target fragment, direct ligation of the PCR product with the T-vector (without purification in some cases), transformation, and blue-white screening. Seamless cloning involves designing amplification primers with overlapping sequences with adjacent fragments, preparing linear vectors (via enzyme digestion or inverse PCR amplification), performing recombination reaction at 50°C for 5-60 minutes, and transforming competent cells. Each method has its own operational characteristics, and researchers can choose the appropriate technology according to experimental needs.

4.3 Product Applications
ANT BIO PTE. LTD. provides a full range of high-quality products covering various molecular cloning technologies, which can meet the diverse experimental needs of researchers. Specific product applications are as follows:

1. Products for restriction enzyme digestion-ligation cloning: ANT BIO PTE. LTD. offers more than forty types of commonly used restriction endonucleases, including Fast Restriction Endonuclease BsaI (abs60206), Fast Restriction Endonuclease ClaI (abs60209), Fast Restriction Endonuclease EcoRI (abs60213), Fast Restriction Endonuclease HindIII (abs60217), etc. These restriction endonucleases have the characteristics of rapid enzyme digestion (completing digestion in 5-15 minutes), universal buffer (greatly simplifying the enzyme digestion reaction), high fidelity (extremely low star activity), high redundancy (easily coping with excessive and complex substrates), and perfect compatibility (verified to be compatible with other brands' enzyme digestion systems). In addition, the T4 DNA Ligase (abs60084) provided by ANT BIO PTE. LTD. can efficiently catalyze the ligation of DNA fragments, serving as a key tool for the ligation step in cloning experiments.

2. Products for TA cloning: The T-Vector Rapid Cloning Kit (abs60085) is a high-efficiency and convenient dedicated kit for PCR product cloning. It has the advantages of high positive rate (high-purity enzyme-digested linear T-vector, higher ligation efficiency, and blue colony rate lower than 10%), convenience and rapidity (premixed ligation reaction system, ligation can be achieved in as fast as 5 minutes, no purification required, direct transformation), T Simple vector without common restriction enzyme sites (facilitating the cloning of genes containing enzyme sites), no NdeI or NcoI sites (facilitating the cloning of recombinant expression genes), provision of purified PCR fragments as positive control, and blue-white screening (highly active β-galactosidase, faster and darker color development), with batch stability (following standardized production processes and strict quality testing).

3. Products for seamless cloning: The Rapid Multi-Fragment DNA Assembly Master Mix (abs60250) is a seamless cloning technology based on recombination principles. It does not rely on cumbersome enzyme digestion and ligation steps, nor does it require end-filling operations. Based on the recombination of 15~25nt homologous sequences between DNA fragments and linearized vector ends, the insert fragment can be cloned to any site of any linear vector with extremely low vector self-ligation background. It has the characteristics of simplicity and convenience (compatible with PCR product systems and vector enzyme digestion systems, eliminating cumbersome purification steps), high positive rate (directional cloning of a single DNA fragment into the vector with a positive rate higher than 95%), rapid reaction (greatly shortened reaction time, as fast as 5 minutes), and ligation of single/multiple fragments (simultaneous insertion of single or multiple fragments, eliminating repeated purification and enzyme digestion processes).

4. Products for TOPO cloning: ANT BIO PTE. LTD. provides a series of TOPO cloning products, including T-Vector pTOPO Rapid Cloning Kit (abs60091, specifications: 20T/100T), Blunt pTOPO Rapid Cloning Kit (abs60094, specifications: 20T/100T), pBM16A Toposmart Rapid Cloning Kit (abs60095, specifications: 20T/3×20T), pBM27 Toposmart Rapid Cloning Kit (abs60096, specifications: 20T/3×20T). These products feature rapid operation, no need for ligases, and three-step cloning completion, significantly improving cloning efficiency.

5. Brand Mission
ANT BIO PTE. LTD. is committed to advancing life science research through high-quality, reliable reagents and comprehensive solutions. We deeply recognize the core role of molecular cloning technologies in gene engineering research and have been dedicated to providing researchers with high-performance products and professional technical support. Our professional R&D team continuously optimizes product performance to meet the increasingly sophisticated experimental needs. The strict quality control system ensures that each batch of products has stable quality and reliable performance. With our specialized sub-brands (Absin, Starter, UA), we cover a full spectrum of research needs from general reagents and kits to antibodies and recombinant proteins. We strive to be a trusted partner for researchers worldwide, providing powerful support for unlocking scientific mysteries, promoting the development of gene engineering and biopharmaceuticals, and realizing the clinical transformation of scientific research achievements.

6. Related Product List
Table 2 Key Products for Other Cloning Technologies

Catalog Number	Product Name	Specification	Applicable Cloning Technology
abs60084	T4 DNA Ligase	500U	Restriction Enzyme Digestion-Ligation Cloning
abs60085	T-Vector Rapid Cloning Kit	-	TA Cloning
abs60250	Rapid Multi-Fragment DNA Assembly Master Mix	-	Seamless Cloning
abs60091	T-Vector pTOPO Rapid Cloning Kit	20T/100T	TOPO Cloning
abs60094	Blunt pTOPO Rapid Cloning Kit	20T/100T	TOPO Cloning
abs60095	pBM16A Toposmart Rapid Cloning Kit	20T/3×20T	TOPO Cloning
abs60096	pBM27 Toposmart Rapid Cloning Kit	20T/3×20T	TOPO Cloning
