Potent Payloads in ADCs: Enhancing Targeted Cancer Therapy through Payload Technological Innovation

I. How Does the Payload Become the Core of ADC Drugs in Exerting Tumor-Killing Effects?

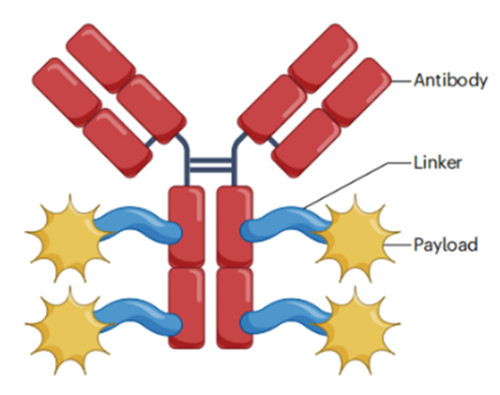

Antibody-Drug Conjugates (ADCs), as a class of precisely targeted biological therapeutics, derive their core value from the ability to specifically deliver highly potent cytotoxic drugs to tumor cells. In this sophisticated molecular design, the payload carries out the crucial final task of killing tumor cells, and its performance directly impacts the ADC drug's efficacy and safety profile. ADCs can be viewed as an "intelligent prodrug" system, remaining stable in the bloodstream and activating to release the active payload only upon reaching tumor tissue, thereby achieving precise killing.



The evolution of payloads reflects the developmental trajectory of ADC technology. From early conventional chemotherapeutic agents like vinca alkaloids and doxorubicin, to tubulin inhibitors such as auristatins and maytansinoids, and now to the current mainstream DNA-damaging agents like camptothecin derivatives, the cytotoxicity of payloads has continuously increased while their safety profiles have significantly improved. The half-maximal inhibitory concentration (IC50) of payload molecules used in modern ADCs typically reaches the picomolar to nanomolar range (0.001-1 nM), making them 100 to 1000 times more potent than traditional chemotherapeutic drugs. This high potency often renders them unsuitable for use as standalone chemotherapeutics due to an excessively narrow therapeutic window, but within the ADC platform, their tumor-killing potential can be fully realized.

II. What are the Mechanisms of Action and Characteristics of Different Types of Cytotoxic Payloads?

Based on their mechanism of action, cytotoxic payloads are primarily divided into two major categories: tubulin inhibitors and DNA-damaging agents. Tubulin inhibitors, including auristatins and maytansinoids, work by inhibiting tubulin polymerization and disrupting microtubule dynamics, arresting cell mitosis and leading to tumor cell apoptosis. This type of payload is particularly effective against rapidly proliferating tumor cells, but their efficacy in some solid tumors might be limited by poor drug penetration.

DNA-damaging agents are represented by camptothecin derivatives, which cause DNA double-strand breaks by inhibiting topoisomerase I, thereby activating apoptosis pathways. Compared to tubulin inhibitors, DNA-damaging agents possess broader tumor-killing potential, notably exerting significant effects even on slower-proliferating tumor cells. In recent years, the development of novel DNA-damaging agents such as PBD dimers and indolinobenzodiazepines has further expanded the payload repertoire. These molecules cause persistent DNA damage by irreversibly binding to the DNA minor groove, forming interstrand crosslinks.

Beyond traditional cytotoxic payloads, non-cytotoxic payloads also show unique application prospects. For example, the photosensitizer RDye® 700DX generates reactive oxygen species under light of a specific wavelength to kill cells, and is already used in the approved ADC product Akalux in Japan. Furthermore, immune modulators like TLR7/8 agonists and STING agonists achieve anti-tumor effects by activating immune responses within the tumor microenvironment, opening new avenues for the application of ADC technology in cancer immunotherapy.

III. What Key Physicochemical Properties Should an Ideal Payload Possess?

The optimized design of the payload is one of the core elements for the success of ADC technology. An ideal cytotoxic payload should possess multiple characteristics: extremely high cytotoxic potency (IC50 in the range of 0.001-1 nM), suitable aqueous solubility to ensure good formulation stability, chemical stability in serum, functional groups (such as hydroxyl, amino, or sulfhydryl groups) available for linker conjugation, resistance to lysosomal enzyme degradation, negligible immunogenicity, and its molecular target should be located intracellularly.

The membrane permeability characteristic of the payload deserves special attention, as it directly relates to the ADC's ability to exert a "bystander effect." More hydrophobic payloads, after release from the target cell, can penetrate cell membranes and enter neighboring tumor cells, thereby enhancing the killing effect on heterogeneous tumor populations. However, excessive hydrophobicity can also lead to increased ADC molecule aggregation and accelerated plasma clearance, necessitating a delicate balance between permeability and pharmacokinetic properties.

IV. How Does Payload Technology Synergistically Optimize with Other ADC Components?

Payload design must be considered in synergy with other ADC components, particularly compatibility with the linker and consistency with the antibody selection. Linker chemistry directly affects the efficiency and specificity of payload release, and different payload structures impose specific requirements on linker choice. For instance, payloads containing primary amine groups are suitable for forming amide bonds with carboxylic acid derivatives, while payloads containing thiol groups can be connected via a Michael addition reaction to maleimide groups.

The Drug-to-Antibody Ratio (DAR) is another key parameter in ADC optimization, determining the number of payload molecules attached to each antibody molecule. The DAR values for currently approved ADCs mostly range between 2 and 4, a range proven to offer the best balance between efficacy and pharmacokinetics. An excessively high DAR may lead to antibody instability, accelerated clearance, and potential systemic toxicity. Notably, the novel linker-payload technology used in Enhertu (DS-8201) allows for a DAR of 8 while maintaining favorable pharmacokinetic characteristics, representing a significant advancement in modern ADC platform technology.

V. How Does Payload Innovation Continuously Expand the ADC Therapeutic Window?

Expanding the therapeutic window is the core objective of ADC technology development, and payload optimization plays a key role in this process. The therapeutic window of first-generation ADCs was less than 2-fold, severely limiting their clinical utility. Through continuous innovation in payload technology, the therapeutic window of modern ADCs has been expanded to over 12-fold. This progress is primarily attributed to synergistic optimization in several aspects:

Novel payloads possess optimized pharmacokinetic profiles and tissue distribution characteristics while maintaining high potency. For example, the Deruxtecan payload (DXd), while retaining potent DNA-damaging activity, has a moderate half-life and controllable systemic exposure, significantly improving its safety profile. Furthermore, modern payload design also focuses on reducing recognition and efflux by multidrug resistance proteins (e.g., MDR1), ensuring effective intracellular drug concentrations are reached in tumor cells.

Advancements in linker technology complement payload optimization. Cleavable linkers such as Val-Cit-PABC and Val-Ala-PABC can be specifically recognized by cathepsin B, which is highly expressed in tumor cells, enabling selective release of the payload within target cells. In contrast, non-cleavable linkers release the active payload through complete degradation of the antibody portion within the lysosome, which may affect the bystander effect but offers superior plasma stability.

VI. What are the Future Directions for Payload Technology?

As ADC technology matures, payload innovation is moving towards diversification and precision. In the field of cytotoxic payloads, molecules with novel mechanisms of action are continuously emerging, including RNA polymerase inhibitors and protein synthesis inhibitors, providing new options to overcome resistance to existing payloads. Simultaneously, the molecular structures of payloads are being continuously optimized through strategies like introducing ionizable groups and adjusting lipid-water partition coefficients to further improve their physicochemical and pharmacokinetic properties.

Non-cytotoxic payloads represent another promising direction. Beyond photoimmunomodulators that have entered clinical use, immune-stimulatory payloads such as STING agonists and TLR agonists can activate innate and adaptive immune responses within the tumor microenvironment, synergizing with immune checkpoint inhibitors. Additionally, protein degraders such as PROTAC molecules used as payloads also demonstrate unique advantages, enabling targeting of traditionally 'undruggable' targets.

Notably, the application of ADC technology is expanding into non-oncological diseases. AbbVie's ABBV-3373, which conjugates a glucocorticoid to an anti-TNFα antibody, showed superior efficacy and safety compared to the parental antibody in a Phase II clinical trial for rheumatoid arthritis. This success provides proof-of-concept for the application of payload technology in autoimmune diseases.

VII. How Can Payload Optimization Address Challenges Facing ADC Technology?

Despite significant progress, ADC technology still faces multiple challenges, and payload optimization is a key strategy to address them. Tumor heterogeneity and variable antigen expression result in only about 2% of the administered dose reaching the target tumor site, necessitating extremely high payload potency. Concurrently, payload-related toxicities such as hematological toxicity, hepatotoxicity, and interstitial lung disease limit the therapeutic index of ADCs.

To tackle these challenges, next-generation payload designs employ prodrug strategies by introducing masking groups onto the payload molecule that can be activated by tumor-specific enzymes, further enhancing selectivity. Dual-payload ADCs conjugate two cytotoxic drugs with different mechanisms of action onto the same antibody, simultaneously targeting multiple cell death pathways to reduce the emergence of resistance. Furthermore, AI-based payload design platforms can efficiently predict and optimize molecular toxicity, activity, and physicochemical properties, significantly accelerating the discovery of ideal payloads.

As these innovative technologies continue to develop, payload design will keep driving the advancement of ADC platforms, providing more effective and safer treatment options for cancer patients, ultimately realizing the vision of precision oncology therapy.
