1, About QTRAP6500 System（MS）

Merge triple quadrupole and linear ion trap capabilities with multi-component IonDrive Technology to produce the world's most sensitive and selective triple quadrupole.

2, Specifications

System Features
Detector Type	IonDrive High Energy Pulse Counting Detector
Ionization Sources	IonDrive Turbo V Source; TurboIonSpray Ion Source; Atmospheric-pressure chemical ionization (APCI) sources; DuoSpray, PhotoSpray, and NanoSpray III Ion Sources; SelexION Differential Mobility Separation Device, Phytronix LDTD Ion Source, Advion LESA Clarity
Scan Types	Q1 MS, Q3 MS, Product Ion, Precursor Ion, Neutral Loss or Gain, MRM, EMS, EPI, ER, MS3, MRM3, TripleTrap Scanning

3, Features

1> For Research Use Only. Not for use in diagnostic procedures.

The QTRAP 6500 LC-MS/MS System with revolutionary, new, multi-component IonDrive™ Technology merges highly-evolved sensitivity with renowned performance. Adopting an intelligent approach to increasing the limits of quantitation, the patented IonDrive Technology introduces a series of advancements that increase the quantity of ions produced while enhancing the way ions are transmitted and detected.

2> QTRAP 6500 LC-MS/MS System advantages:

1) Signal-to-noise and LOQ improvement of up to five-fold over the widest range of compounds and flow rates

2) Twenty-fold increase in detector dynamic range

3) No compromise in mass range with a 2000 m/z upper mass limit

4) Scan speeds of up to 20,000 Da/second for optimized UHPLC strategies

5) Increased throughput with polarity switching speeds of 20 msec

6) Compatibility with SelexION™ Differential Ion Mobility Technology

3> Driven by proven Linear Accelerator™ Trap technology

the QTRAP 6500 LC-MS/MS System enables powerful, unique workflows that deliver a new level of confidence in your data:

1) MRM3 workflows for reduced sample cleanup and labor intensive chromatography methods

2) Comprehensive peptide sequence confirmation and simplified MRM assay development for peptide quantitation

3) Simultaneous quantitation and library searching using the unique TripleTrap™ Scanning for contaminant analysis

4) An increase of 100-fold in full-scan sensitivity over triple quadrupole instruments for greater confidence in forensic toxicology applications

The QTRAP 6500 System is exceedingly-sensitive, sharply-focused – backed by the integrity and quality of the SCIEX brand.

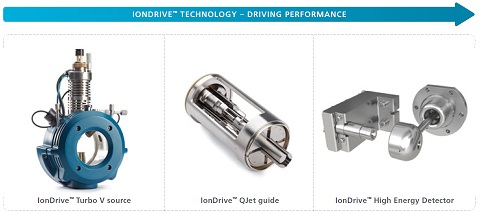

4> IonDrive Technology – pushing the limits of sensitivity: The QTRAP 6500 Series adopts an intelligent approach to increasing the limits of quantitation with patented IonDrive Technology, simultaneously targeting three critical areas of enhancements in the 6500 Series, ruggedly driving performance improvements and unrivaled sensitivity:

1) The production of more ions with the newly-designed IonDrive Turbo V Source

2) The capture and transmission of more ions with the unique IonDrive QJet Guide

3) The detection of more ions with the new IonDrive High Energy Detector

a, Produce more ions:

The next generation IonDrive Turbo V Source increases ion production using enhanced, gas-flow dynamics and optimized heater configurations while improving reliability, reproducibility, and robustness. The IonDriveTurbo V Source maintains the quick-change atmospheric-pressure chemical ionization (APCI) and TurboIonSpray Probes as well as the new, low-dispersion electrodes for use with micro-flow UHPLC applications. From 5μL/min to 3mL/min, the IonDrive TurboμV Source is the perfect match for narrow bore, standard bore, and UHPLC flow rates.

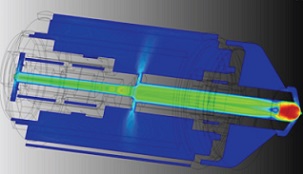

b, Focus and transmit more ions:

The patented and re-optimized IonDrive QJet Guide improves ion containment and collisional focusing through a dual-stage design that captures and focuses ions with incredible efficiency. With a larger internal radius in the first stage that improves the capture of ions and a narrower internal radius on the second stage that increases the ion transmission efficiency into Q0, the new design is able to introduce many more ions into the analyzer.

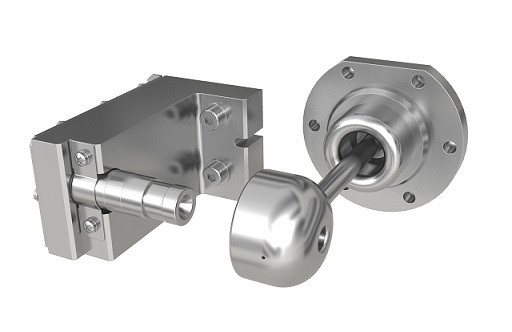

C, Detect more ions:

The new IonDrive High Energy Detector maintains the benefit of pulse-counting fundamentals to deliver accuracy, precision, and ultra-sensitivity at low concentrations while increasing the linearity at higher count rates.

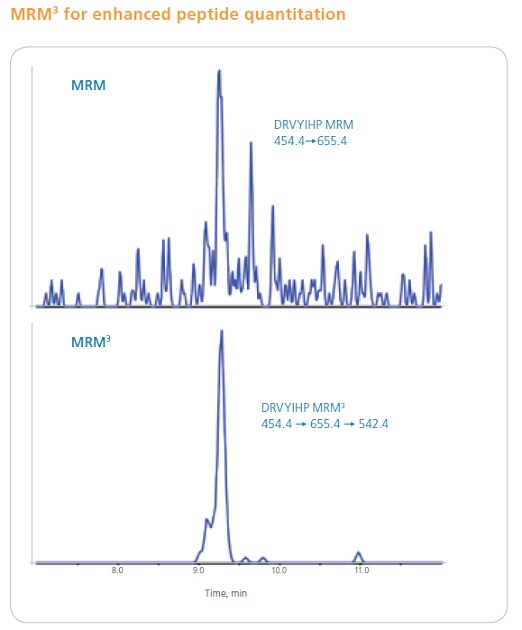

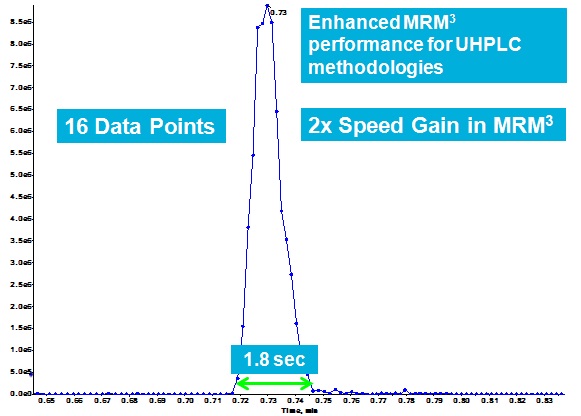

d, Faster MRM3-enhanced selectivity:
