Acceptable Pump Head: YZ1515x, YZ2515x, SN Series, MC Series
Accesories
Product Introduction
4.3 inch color touch screen control; flow data, setted parameters and system settings displayed in the same screen. 3 measurement modes: fixed volume measurement, fixed time and volume, timer start and stop. It is the ideal choice for laboratory, industrial production and equipment supporting.
Functions & Features
1. 4.3 inch color LCD display, touch screen control, dynamic display working status, display the flow volume and motor speed in the same screen.
2. Intelligent calibration function, it can calibrate the flow rate and dispensing volume, ensure the flow accuracy, suitable for high accuracy transferring liquid.
3. On-line micro adjust function, it can adjust the flow rate during production progress, to avoid the filling errors because of tubing fatigue and elasticity decreased.
4. Accurate angle control technology, to meet high precision metering and dispensing.
5. Fixed volume measurement function: After turn on this function, the peristaltic pump will measure the liquid volume automatically, it will stop automatically after the volume reaches the set value. During this process, the flow rate can be changed. It is suitable for laboratory liquid dosing and chemical reaction process.
6. Fixed time and volume function: After turn on this function, the peristaltic pump will transfer preset volume within preset time. It is suitable for liquid dispensing in laboratory and industrial production.
7. Timer start and stop function: Can set the pump start and stop time freely, reach automation control.
8. Load-shedding memory function, store the running parameters in time, safe and reliable.
9. Fast fluid-filled function, can wash the tubing and also fill fluid in the tubing.
10. High torque and low power loss, it can load several pump heads or multichannel pump head, meet different application requests.
11. 304 stainless steel housing, resist corrosion, no rust.
Technical Specifications of ion chromatography pump:
|
|
V1
|
V3
|
V6
|
|
Flow rate range
|
0.007-570ml/min
|
0.007-1330ml/min
|
0.007-2280ml/min
|
|
Speed range
|
0.1-150rpm
|
0.1-350rpm
|
0.1-600rpm
|
|
Speed resolution
|
0.01 rpm
|
|
Flow rate resolution
|
0.01mL
|
|
Back suction angle
|
0-360°
|
|
Output pressure
|
0.3Mpa
|
|
Display
|
4.3 inch-Industrial grade-True color LCD screen
|
|
Control method
|
Touch screen and mask keypad
|
|
External control
|
0-5V, 0-10V, 4-20mA
|
|
Passive switch signal, such as : foot pedal.
Active switch signal: 5V, 12V, 24V for option.
|
|
RS232, RS485 support MODBUS protocol (RTU mode)
|
|
Power supply
|
220V±10%, 50Hz/60Hz ( standard),
110V±10%, 50Hz/60Hz (optional)
|
|
Drive dimension
|
213*152*235mm
|
|
Drive weight
|
5.02kg
|
|
Power consumption
|
<50W
|
|
Working condition
|
Environment temperature: 0-40℃
Relative humidity: <80%
|
|
IP rate
|
IP31
|
Poduct Composition & Flow Rate
|
Drive
|
Speed Range
|
Pump Head
|
Tubing Size
|
Flow Rate ( mL/min)
|
|
V1
|
0.1-150rpm
|
YZ1515x
|
13#,14#,19#, 16#,25#,17#, 18#
|
0.007~570
|
|
YZ2515x
|
15#, 24#
|
0.17~435
|
|
MC1-MC12
|
ID:0.13-3.17mm,
Wall thickness: 0.8-1.0mm
|
0.000067-45
|
|
SN25/15
|
14#, 16#, 25#
|
0.024-375
|
|
V3
|
0.1-350rpm
|
YZ1515x
|
13#,14#,19#, 16#,25#,17#, 18#
|
0.007~1330
|
|
YZ2515x
|
15#, 24#
|
0.17~1015
|
|
MC1-MC12
|
ID:0.13-3.17mm,
Wall thickness: 0.8-1.0mm
|
0.000067-45
|
|
SN25/15
|
14#, 16#, 25#
|
0.024-875
|
|
V6
|
0.1-600rpm
|
YZ1515x
|
13#,14#,19#, 16#,25#,17#, 18#
|
0.007~2280
|
|
YZ2515x
|
15#, 24#
|
0.17~1740
|
|
MC1-MC12
|
ID:0.13-3.17mm,
Wall thickness: 0.8-1.0mm
|
0.000067-45
|
|
SN25/15
|
14#, 16#, 25#
|
0.024-1500
|

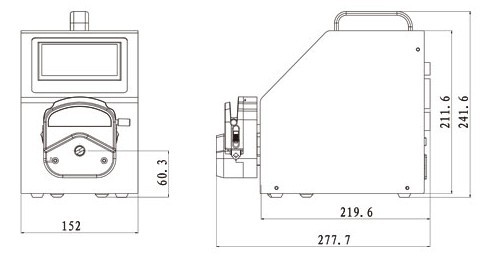

Product Dimension
