1.Details

The AU400 Bioprocess Analyzer is a high-performance analytical instrument specifically designed for monitoring biopharmaceutical and cell culture processes. It is widely used in medium development, upstream process optimization, and real-time monitoring of bioreactors. The instrument employs spectrophotometry, providing precise measurements and easy maintenance. Its detection parameters are independent and can be flexibly combined, meeting the monitoring needs of mammalian cells, bacteria, yeast, insect cells, and algae cultures.

The AU400 features a highly efficient and stable reaction unit, equipped with 81 semi-permanent special UV-transparent hard cuvettes to ensure accurate absorbance measurements. Its multifunctional sample and reagent units support a Peltier-cooled reagent disk, with 40 reagent positions and 40 sample positions that are plug-and-play and compatible with various EP tubes and sample cups. The high-precision micro-sampling unit uses an original U.S. ceramic integrated sampler and a Japanese sampling needle, with intelligent functions including liquid level detection, sample tracking, and 3D collision protection, ensuring accurate and reliable sampling.

The instrument’s nano-polished stirring system and robust cleaning workstation provide complete cross-contamination prevention, performing 18 automatic cleaning steps per cycle. The user-friendly control system supports automatic dilution measurement and calibration, real-time monitoring of sample, reagent, and reaction disks, as well as waste status, with comprehensive alarm functions. It also meets audit trail and data integrity requirements. The precise and stable fluid system uses globally recognized brand components to ensure reliability. The fully enclosed photodiode array post-spectrophotometry system, equipped with a German UV halogen lamp, offers dual-wavelength detection to effectively eliminate sample interference and requires no maintenance throughout its lifetime. With its advanced design and intelligent functions, the AU400 provides robust support for process optimization and product quality assurance.

2.Features

High-Efficiency, Stable Reaction Unit

• 81 semi-permanent UV-transparent rigid cuvettes ensure accurate absorbance measurements

Multi-Functional Sample and Reagent Unit

• Reagent tray with semiconductor Peltier cooling ensures quality
• 40 reagent positions; supports single or dual reagents, plug-and-play
• 40 sample positions; compatible with various EP tubes and sample cups

High-Precision Micro-Sampling Unit

• Original high-precision ceramic integrated sampler from the USA, optimized digital stepper motor control, quiet and eco-friendly, ensuring accurate dispensing
• Original high-precision sampling needle from Japan with nano-polished inner and outer walls; features liquid level detection, real-time volume tracking, and 3D anti-collision intelligent functions

Perfect Cross-Contamination Prevention Solution

• Nano-polished high-precision stirring system ensures thorough reactions
• Powerful cleaning workstation with 6-stage, 18-step automatic cleaning per cycle

User-Friendly, Powerful Control System

• Controlled via laptop (or optional 22-inch flat touchscreen)
• Supports automatic sample and calibration dilutions
• Real-time monitoring of sample tray, reagent tray, reaction tray, deionized water, and waste; comprehensive alert functions
• Compliant with audit trail and data integrity requirements

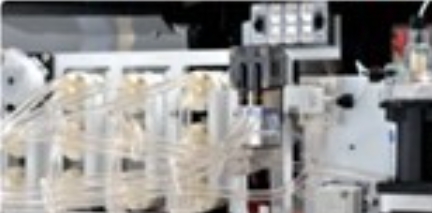

Precision and Stable Fluidics System

• High-quality components from globally recognized brands: IWAKE liquid pump, SMC solenoid valves, IDEX ceramic integrated syringe, THOMAS peristaltic pump, Tygon fluidic tubing, CPC quick connectors

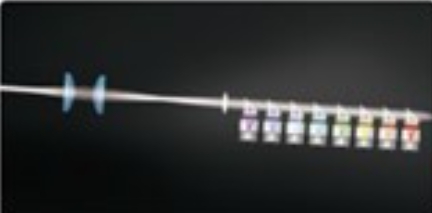

Advanced and Unique Post-Dispersion System

• Fully enclosed photodiode array post-dispersion system, maintenance-free for life
• Dual-wavelength detection to eliminate sample interference
• Original German UV halogen-tungsten lamp with a lifespan of up to 2000 hours

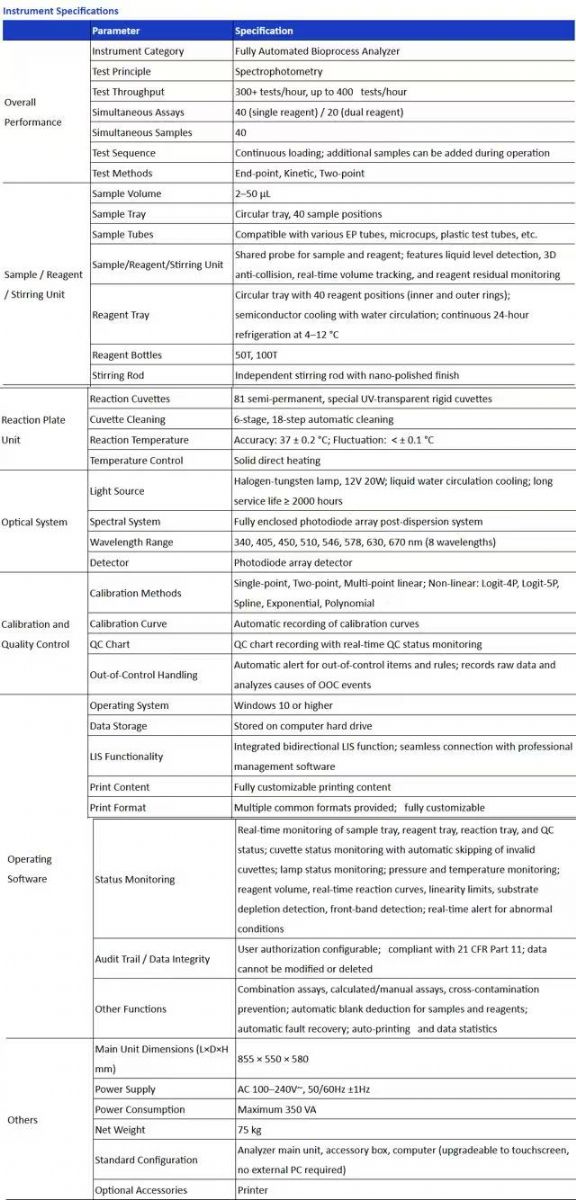

3.Specification
