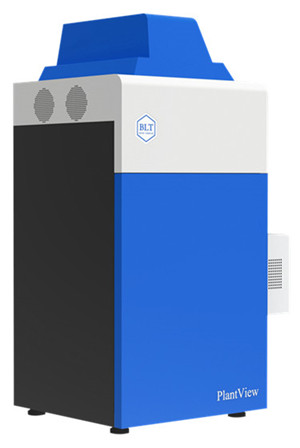

PlantView100 is a highly sensitive imaging system produced by Guangzhou Biolight Biotechnology Co. Its use of back-illuminated ultra-low temperature CCD camera has a extremely high detection sensitivity, while the specially designed dark cabinet can effectively avoid the impact of external light and cosmic rays on imaging. The lateral imaging module with rotating carrying table and adjustable plant growth simulation software enables long time multi-site imaging inspection under natural plant growth condition, which is more powerful and reliable. Simple software operation interface can preset a variety of experimental programs.
Features/Benefits
• Dual camera design, allowing for top imaging and lateral imaging dual mode detection.
• Deep-cooled research-grade CCD camera with temperatures down to absolute -90°C, with powerful capture capability for weak fluorescence or luminescence.
• Plant illumination simulation module for plant growth rhythm and photoperiod experiments
• Circular global arrangement of high power narrow bandwidth LED light source with more uniform light output.
• Large field of view, can meet the whole plant imaging, can also achieve seedlings, seeds, fruits, culture dishes and other samples batch imaging.
• User-friendly operating software, quick to get started and free upgrades forever.
Specifications
| Light Source |
Narrow bandwidth LED light source, life time＞50000 hour |
| Filters |
Light transmittance≥90%, cut-off depth: OD6 |
| Excitation Filter |
Standard 5 sets
Ex465nm/GFP, Ex535nm/dsRed/RFP, Ex605nm/Cy5
Ex675nm/Cy5.5, Ex745nm/ICG (Max to 20 sets) |
| Emission Filter |
Standard: Em540nm/GFP,Em600nm/dsRed/RFP,Em680nm/Cy5,
Em740nm/Cy5.5,Em820nm/ICG (Max to 10) |
| Carrier Table |
Z-axis automatic lift |
| Size |
1100mm x 520mm x 546mm (H x W x D) |
| Weight |
85KG |
bio-equip.cn Guangzhou Biolight Biotechnology Co., Ltd. is in Senruichun Biotechnology Park, Guangzhou Science City. Focus on the development of high efficiency receiving and identification technology for photon signals, and apply this technology to the fields of life science research, environmental quality monitoring, medical diagnostic services and other fields. Integrating research and development, production and service, it is one of the very few professional companies in the world that can provide a series of professional optical imaging system.
The company adheres to the concept of "scientific and technological innovation, leading quality and serves the public" and continuously develops its own research and development strength. Establish long-term and stable technical cooperation with research institutes such as Sun Yat-sen University, South China University of Technology, Manufacturing Engineering Research Institute of Huazhong University of Science and Technology of Dongguan. At the same time, a high-level R & D management team composed of multiple doctoral and graduate students has also been established and has continuously made breakthroughs in the field of biological experimental equipment.
Since the establishment of the company, it has successfully developed and listed a number of products with independent intellectual property rights and obtained a number of patent certificates. The company has passed the certification of “Science and Technology Innovation Giant Enterprise” in Guangzhou in 2015. Through its continuous efforts, the company passed the first batch of "high-tech enterprises" in Guangdong Province in 2017.
|
