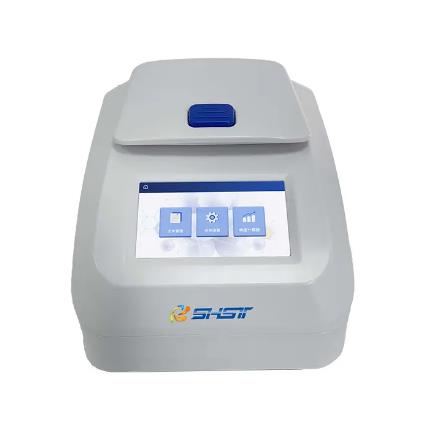

This gradient Thermal Cycler is a mini size designed for thermal cycling and protocol optimization in molecular biology, medical, food, genetic testing and etc.

Model:           SH-PC32                         Brand:           SHST

Introduction

This gradient Thermal Cycler is a mini size designed for thermal cycling and protocol optimization in molecular biology, medical, food, genetic testing and etc.



Features

·High performance axial flow fan with low operation noise

·Adaptive elastic heating lid design to fit the tubes of different heights automatically

·New generation peltier technology, max heating up rate 5°C /sec

·Good temperature uniformity reduce edge effect·Real-time temperature display

·800x480 pixel, 4.3 -inch color touch screen

·Automatically power failure recovery

·Auto heated lid: Heated lid be “OFF” automatically when sample temperature less than 30°C or program ends up.


Product parameters
Model	SH-PC32	Cooling Down Rate(Max.)	4°C /S	Max. Cycles	99
Capacity	32x0.2ml(microtubes), 4x8x 0.2ml (tubes strips)	Gradient Temperature Range	30 ~ 100°C	Max. Steps	30
Block Temperature Range	4~100°C	Gradient Set Span	Max. 30°C	Power failure recovery	Yes
Numbers of Peltier	2	Gradient Temperature Accuracy	±0.3°C	Pause function	Yes
Temperature Display Accuracy	0.1°C	Gradient Temperature Uniformity	±0.3°C	16°C Temperature Holding Function	Infinite duration
Block Temperature Uniformity	≤ ±0.25°C	Temperature Control ways	Block or Tube	Real-time operation status	Image-text displayed
Block Temperature Accuracy	±0.2°C	Timer Increasing / Decreasing	- 599~599 S for Long PCR	Size (W×D×H)	243×172×145(mm)
Timer	1s~59min59sec/0 Infinite Duration	Temperature Increasing / Decreasing	-9.9~9.9°C for Touchdown PCR	Net weight	2.3kg
Heating Lid Temperature range	30°C ~105°C	LCD display	Touch screen display	Max. Power	225W
Heating Up Rate(Max.)	5°C /s	Programs stored	200	Voltage Range	AC110V-220V 50-60Hz
