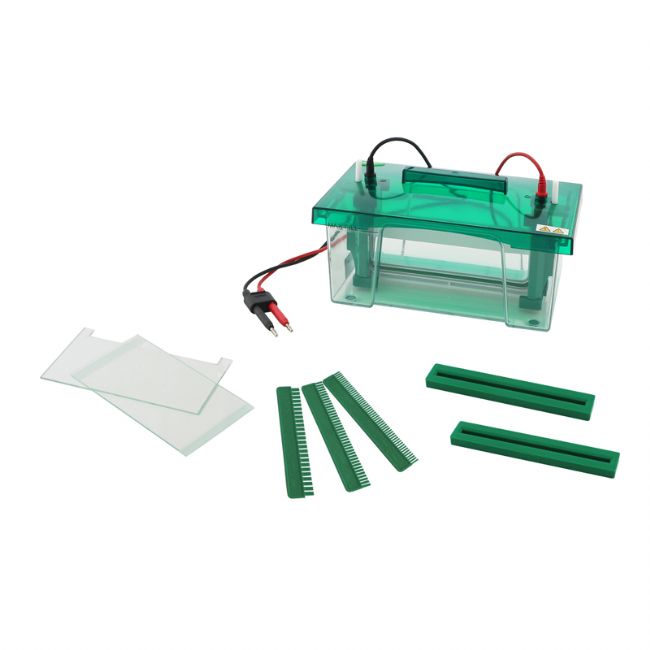

Vertical Electrophoresis Tank Vertical Electrophoresis Tank

Product Image
Features

• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.
• With the gel making device modular, you can make multi slab gel at the same time.
• Safety cover open button design, convenient opening the cover.
• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.
• Auto-switch-off when the lid is removed.

Technical Parameters


Model	FSF-JX5L
Glass plate size(W*L)	216*110 mm
Gel Size(W*L)	186*95 mm
Gel thickness	1.0(mm)
Gel amount	1~2(pieces)
Sample volume	(1.0mm)25,40,52wells
Buffer Volume	1800(ml)
Dimension(L*W*H)	280*140*135(mm)
Net weight	3.2(kg)
