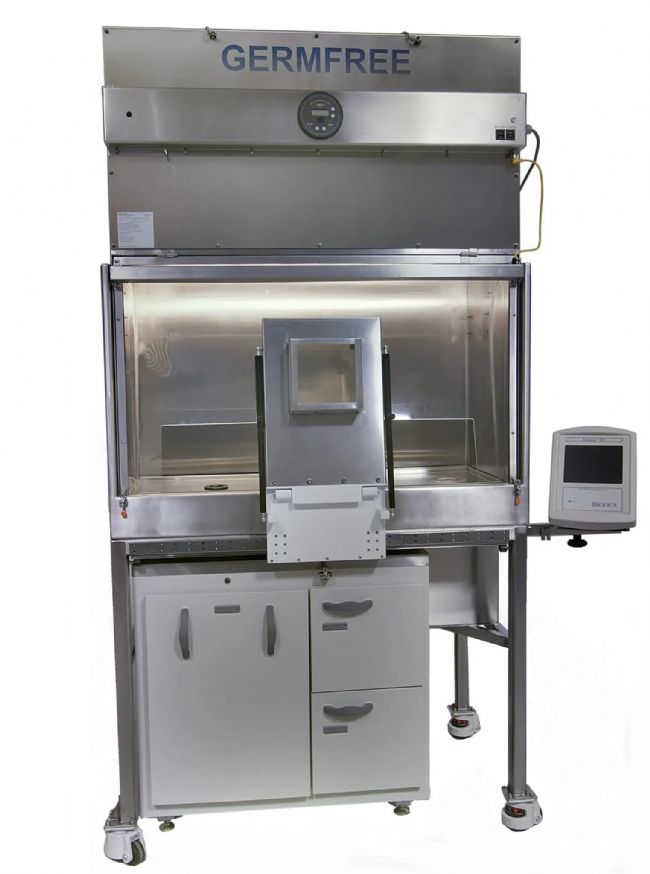

Radiopharmacy Hood

Lead-shielded Biosafety Cabinet for Compounding Radiopharmaceuticals
Compliant with USP 825 and Validated to CETA CAG-003-2006

Performance Standards
The RADIOSAFE Series provides ISO Class 5/Class 100 HEPA filtered unidirectional (laminar) vertical airflow and safely handles potentially hazardous materials. The unit incorporates a 1/4″ lead shield to provide protection while compounding radiopharmaceuticals. The Class II Type A2 RADIOSAFE Series of Biological Safety Cabinets meets all requirements for USP 825 compliance and is constructed from 100% Stainless Steel.

Outer cabinet and work surface are welded stainless steel with a pharmaceutical grade finish. Front lifting viewing panel is easily removed and is gasketed to provide a proper seal when in place. Ergonomic front panel is concave permitting operator to lean into work area, reducing strain. High capacity motor/blower system with speed control extends HEPA filter life. Supply and exhaust HEPA filters are parallel to work area and each other to prevent turbulence.

Dimensions

Overall Dimensions:
50″ W X 27″ D X 94″ H
Work Area Dimensions:
48″ W X 22″ D X 29″ H

Weight:

2700 lbs220 Volt Upgrade
Duplex Outlet Installed in the Work Area
Exhaust Transition Piece
Bin Cart for 12 Trays for Storage Under Workdeck 30″ Wide x 26.5″ D x 29″ H
Generator & Storage Cabinet

Specifications

Performance Data
The Class II, Type 2 Laminar Flow Biological Safety Cabinet provides protection for the user, product and the environment from particulate and aerosol hazards. The BBF Series of Vertical Laminar Flow Biological Safety Cabinets pass the Biological Tracer Containment Tests of the National Institutes of Health (NIH), the National Cancer Institute (NCI) and the National Sanitation Foundation (NSF). All units are NRTL listed with MET Labs to comply with UL1262.

Filtration
The work area is continuously bathed with positive pressure ISO Class 5/Class 100 HEPA filtered air to protect the product from contamination while a negative inward airflow protects the user. Approximately 70% of the air from each cycle is recirculated through the supply HEPA filter while the remaining air is discharged from the hood through the exhaust HEPA filter.

Lead Shielding
Lead-lined dose calibrator housing (2″ thick lead)
Dose calibrator monitor arm
Lead on sides, back and bottom (1/4″ thick)
Heavy duty 37″ tall all-welded stainless steel stand
Sliding leaded glass shield with 1/4″ lead (13 3/4″ x 20″)
Viewing window in shield is 8″x 8″x 4″ with a density of 5.2g/cm3

Electrical
Separate lighted power ON/OFF indicator switches for blower and lighting
Voltage = 115 Volt, 60 Hz (220 V/50-60 Hz also available)
Ten foot power cord with a molded grounded plug
Amperage rating: 10 amps

Features
Stainless steel filter screen is removable for easy cleaning. Removable stainless steel work tray facilitates easy clean up and decontamination. Fluorescent lights are externally mounted to minimize heat build-up. The I.V. bar is located in the work area and includes 12 stainless steel hooks.

Diagrams

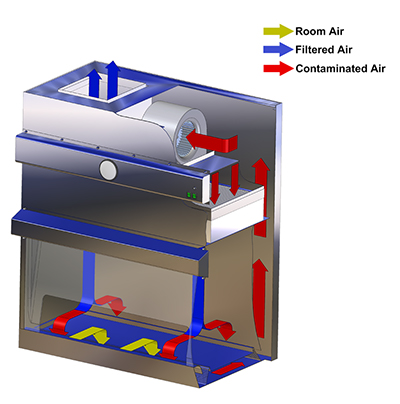

Radiopharmacy Hood Airflow
