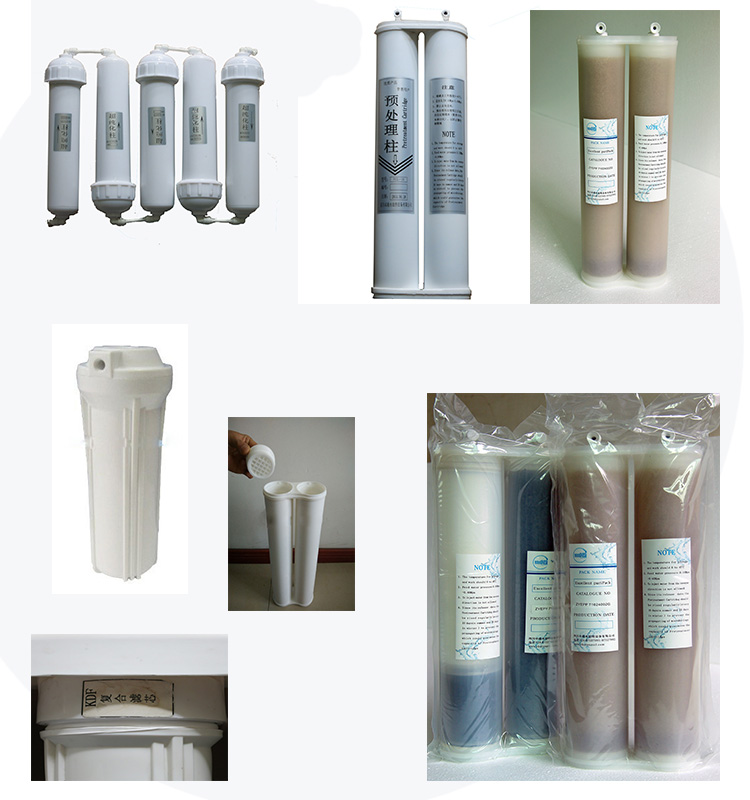

zhuoyue  injectionultra-pure  resin  filter cartridge  column filled with Dow 450 or Rohm and Haas 6150 ultra-pure water-based resin, Dow and Rohm and Haas ultra-pure water grade homogeneous resin, is specifically for the semiconductor, high-performance display and microelectronics Ultra-pure water quality has strict requirements of the industry and design and production of ion exchange column, UPW ultra-pure water grade is a kind of non-separable uniform mixed bed resin.

1, ultra-pure water, the lowest ion and metal residue characteristics;
 2, the lowest TOC dissolution;
 3, ultra-pure water mixed bed resin only 4 times the volume of the bed will be able to wash the water to reach;
 4, no crack rate of resin particles> 95%;
 5, a high degree of wear resistance, to prevent the use of broken process;
 6, excellent mechanical strength.
The use of food grade disposable engineering plastics, hot melt molding, with ultra-strong pressure, sealing performance and stability, to prevent secondary pollution of ultra-pure water.

•  Diameter 7CM * Length 33CM
•  Diameter 7CM * Length 42CM
•  Diameter 7CM * Length 50CM
•  Diameter 7CM * length  65CM
•  Diameter 7CM * length  70CM
•  can be customized according to customer size

 Resin  filter cartridge ultra-purified column water quality:
Resistivity: 18.25MΩ.cm
Heavy metal ions: <0.1ppb Microparticles: ≤ 1 / ml
Microorganism: <1CFU / ml Total Organic Carbon (TOC): <5 ppb
 soluble silicon (in sio2 dollars) <0.01mg / L
 US Dow UPW-450 ultra-pure water for polishing resin or Rohm and Haas 6150.
 exchange capacity tons of water = resin capacity (the premise of water 10μs / cm below)
