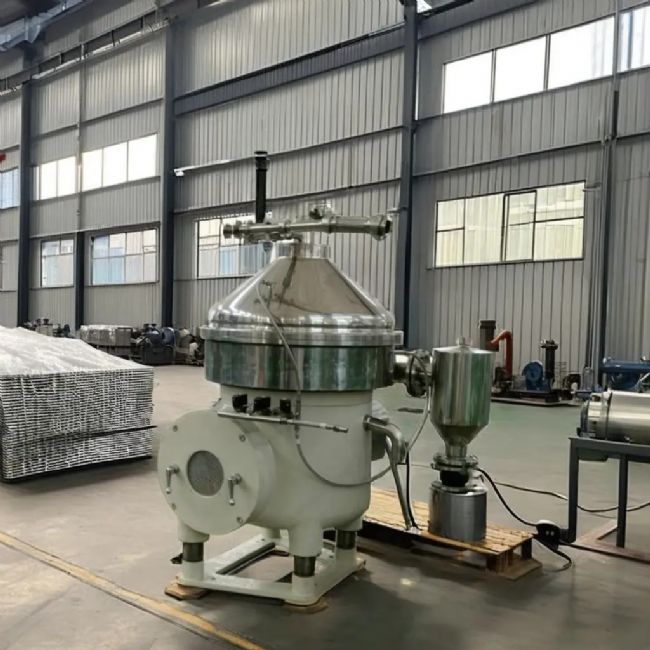

Automatic Liquid Liquid Centrifugal Separator , Industrial Lube Oil Separator
Liquid Liquid Centrifugal Separator Overview:
Enough oil should be ensured in human's dietary, and vegetable oil and animal oil meet with their different nutrients to meet the human body needs. So the oil quality affects the human health directly. Juneng Separator can suitable for a variety of oils and fats and provide personalized solutions in order to achieve optimal oil and maximized production capacity.
Liquid Liquid Centrifugal Separator applications:
Vegetable oil: Colza oil ,Cottonseed oil,Corn oil, Palm oil,Soybean oil, Peanut oil,Rice oil,Sesame Oil, Safflower oil and so on. fish oil and other various animal fat clarification
Liquid Liquid Centrifugal Separator Advantage
This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time. We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

|
Model
|
Treatment
Capacity per hour
|
Presure
(MPa)
|
Ourlint
Pressure
(MPa)
|
Motor
Power
(Kw)
|
Weight
(Kg)
|
Out-Line
Dimension
(mm)
|
|
DHZ 204
|
1000- 1500
|
0.05
|
0.1-0.2
|
4
|
520
|
810 *850* 1350
|
|
DHZ 360
|
2000- 5000
|
0.05
|
0.1-0.35
|
7.5
|
1200
|
1530 *1150* 1500
|
|
DHZ 470
|
5000- 10000
|
0.05
|
0.1-0.4
|
15
|
1600
|
1800 *1200* 1750
|
|
DHZ 550
|
10000- 20000
|
0.05
|
0.1-0.4
|
22
|
2300
|
1950 *1550* 1960
|
|
DHZ 616
|
25000- 35000
|
0.1
|
0.3
|
37
|
3000
|
2185 *1728* 2082
|
Application Case:
For repeatedly tests, Disc Separator is mainly used for liquid-solid separation, among which, content of solid phase is within 1%-5% and diameter of solid particles is more than 0.5 microns.
1. oil products: the separation and clarification for vegetable oil, animal oil, fish oil, crude oil, all kinds of fuel oil,
ubricating oil,and clarification of dairy products;
2. food: juice clarification, beer separation, broth separation and clarification for fermentation broth in fermented brewery;
4.chemical industry: recovery for dry cleaning agent solvent, zinc plating solution, aluminum sulfate solution, tar water mixture, polyvinyl chloride, polypropylene, polyethylene, silver (film processing) and catalyst and magnetite .
5. The separation and clarification of plant extract.
