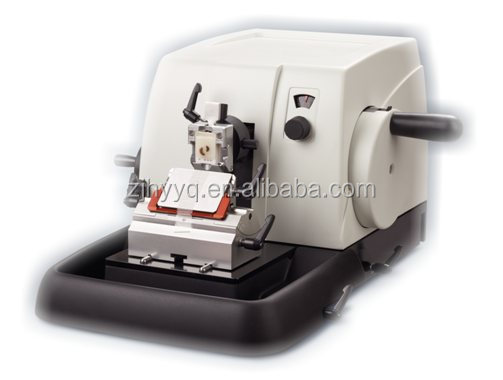

HY3016 Rotary Paraffin Microtome
Design Features
1) Take both aesthetics and practicality into structure design
Ergonomical one-step Injection Molded housing(including fixing bottom studs) results in appropriate structure, attractive appearance and convenient operation, and enables to avoid resonance and lower the frictional resistance;
Magnetic waste tray enables easy removal for cleaning, and was designed black to blend into one harmonious whole together with the main machine.
2) Mechanical drive system with perfect workmanship enables durable service
Guide rails and retainer in mechanical transmission system was made in German, which are so highly precise that enables to slide with even no gap, thus results in precision and longer equipment life and free of lubrication, maintenance and noise, too;
A precise micro motion specimen feeding system which adopted the internationally most advanced no-wheel micro-transmission to ensure precision.
3) Precise, comfort, and safe slicing experience
Fast trimming function enables fast switch between sectioning and trimming mode;
Specimen retraction function protects specimens from blade scratching and ensures sections’ integrality;
A force balancing system in handwheel for adjusting the balancing force during slicing, making rotation light , even and smooth;
Two safety locking mechanism: the first safety lock is located on the handwheel, when activated, the specimen head can be fixed at the uppermost; the second locking system is positioned on the microtome base and locks the specimen head at any position.
The blade clamp can be moved horizontally to avoid danger from unintended touch on blade. A third of the blade can do the entire slicing, which makes the blade’s life time three times longer;
Specimen positioning: horizontally 8°, vertically 8°, cassette clamp and C clamp are optional.

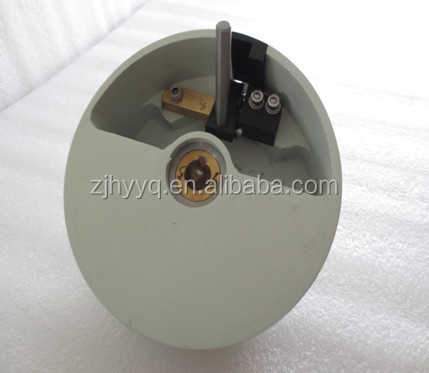

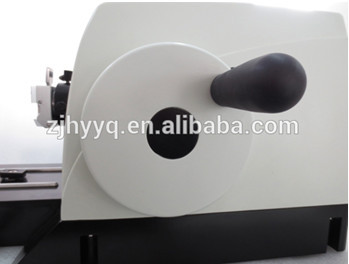

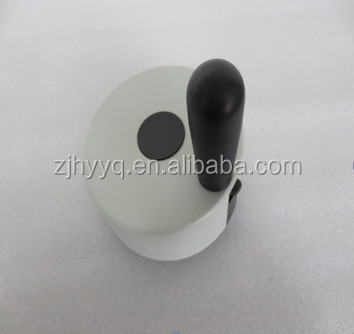

The hand wheel
•When the hand wheel reach the highest point with the feeding mechanism, the control system send a command to drive stepper motor a specific value.
•And also when the hand wheel reach the lowest point, the control system send an order to drive motor a specific value back.
•The hand wheel is the kinetic energy source, and the whole operation start from the hand wheel rotation, drive to feeding mechanism, and make feed mechanism moving up and down.

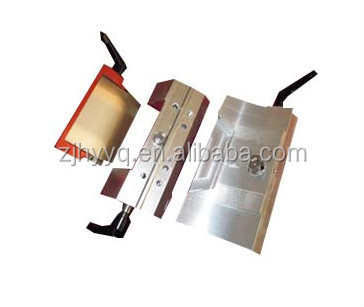

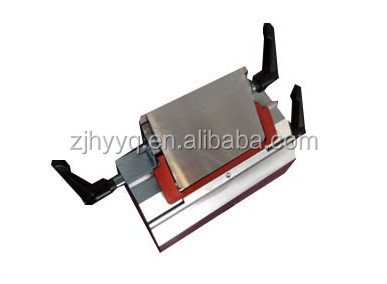

Slicing knife holder

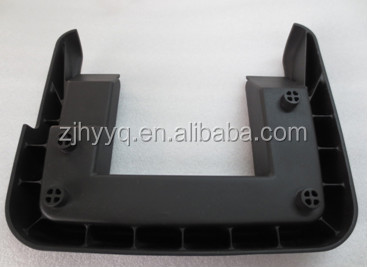

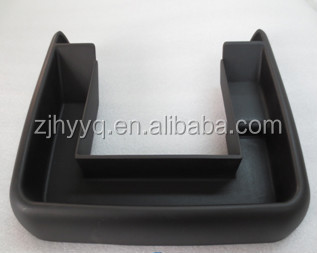

Waste tank
•Waste tank of this machine is designed based on the main consideration of structural , beauty, and convenient to provide a more convenient, more practical for users;
•During the design process, designers select the black waste tank with black base from the whole view, and it makes all blend into one harmonious whole.
•Magnetic waste tray enables easy removal for cleaning, and was designed black to blend into one harmonious whole together with the main machine.
Technical Specifications
-Section thickness range:1-60μm(3~5μm thickness leads to best section results)
-Section thickness setting :1-10μm, 1μm increment
10-20μm, 2μm increments
20-60μm, 5μm increments
- Trimming thickness: 10μm and 30μm
- Specimen retraction: about 60μm
-Rough feeding: operate by manually rotating rough-feeding handwheel.
-Specimen vertical stroke: 70mm
-Specimen horizontally stroke: 28 mm
- Max specimen size: 60mm×50mm×40mm
- Specimen positioning: horizontally 8°, vertically 8°
-Dimensions:560×470×320mm
- Weight: about 35kg
