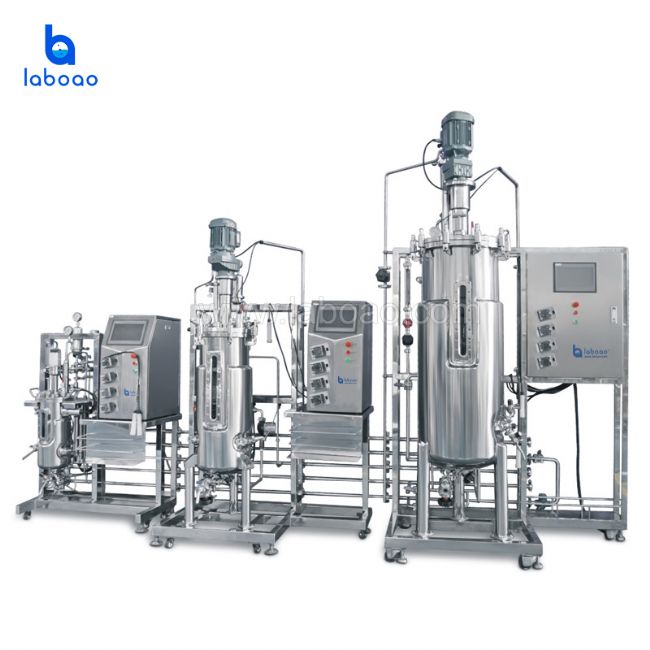

Tertiary Stainless Steel Fermentation System

LBR-X-XSJ-XSJ Series

multistage fermenter system,stainless steel bioreactor,cell culture bioreactor,tertiary bioreactors,production fermenter

Tertiary stainless steel fermenter is suitable for process development and small-scale production,each tank volume can be customized as request, volume is optional 5L,10L, 30L,50L,100L,200L,300L,500L,1000L.

Secondary stainless steel fermenter is two fermentation tanks (the same volume or different volumes are acceptable) form a set of conjoined system, which is suitable for parallel orthogonal experiment, provides the most optimized way for process research, and shortens the precious time of research.
Single tank can be used independently, reliable transfer pipeline, can be sterilized separately, floor-mounted integral frame, separate control cabinet can be centralized control, can be combined with various fermentation tanks according to needs, suitable for zooming from laboratory shake flasks It can also be used in small-scale production for the transitional fermentation test research.


1. The main body is made of all-stainless steel 316L tank, with no dead corners in the tank; with special sampling and discharge valves for fermentation tanks, and transplanting pipes.
2. Adopt a wide viewing angle observation mirror for the liquid level in the tank, 12V safety light, with temperature, PH, DO, defoaming, liquid level interface, inoculation port, replenishing port, and multiple spare ports, all welds are firm Neat and beautiful.
3. The optimized diversion design improves the exchange efficiency and the uniformity of the temperature in the tank.
4. Special AC motors for fermentation tanks ensure that the motors can run in harsh environments.
5. German Siemens S7-200 series PLC control system + 10" LCD touch screen display operation, the system has real-time display, data recording and data analysis of the running process;
6. Temperature, speed, Ph value, DO value, upper and lower limits can be set, and it has over-limit alarm function.
7. It has the functions of over-liquid level alarm and automatic refilling, as well as over-foam level alarm and automatic addition of defoamer.
8. The historical data and curves of various parameters can be stored for many years, and the real-time curve can be restored as it is when the power is turned on again.
9. It has the function of replenishment measurement; regular and quantitative replenishment
10. The reactor software system has adaptive and self-diagnostic capabilities






Item name	5L-50L-500L Tertiary Fermenter	10L-50L-100L Tertiary Fermenter	10L-100L-1000L Tertiary Fermenter
Model	LBR-5L-50SJ-500SJ	LBR-10L-50SJ-100SJ	LBR-10L-100SJ-1000SJ
Volume	5L,50L, 500L	10L, 50L, 100L	10L, 100L,100L
Power	380V 15KW	380V 18KW	380V 20KW
Weight	300kg	450kg	550kg
Required steam capacity and power when sterilizing	380V 45KW	380V 72KW	380V 100KW
Option	Any tank volume is optional as request
